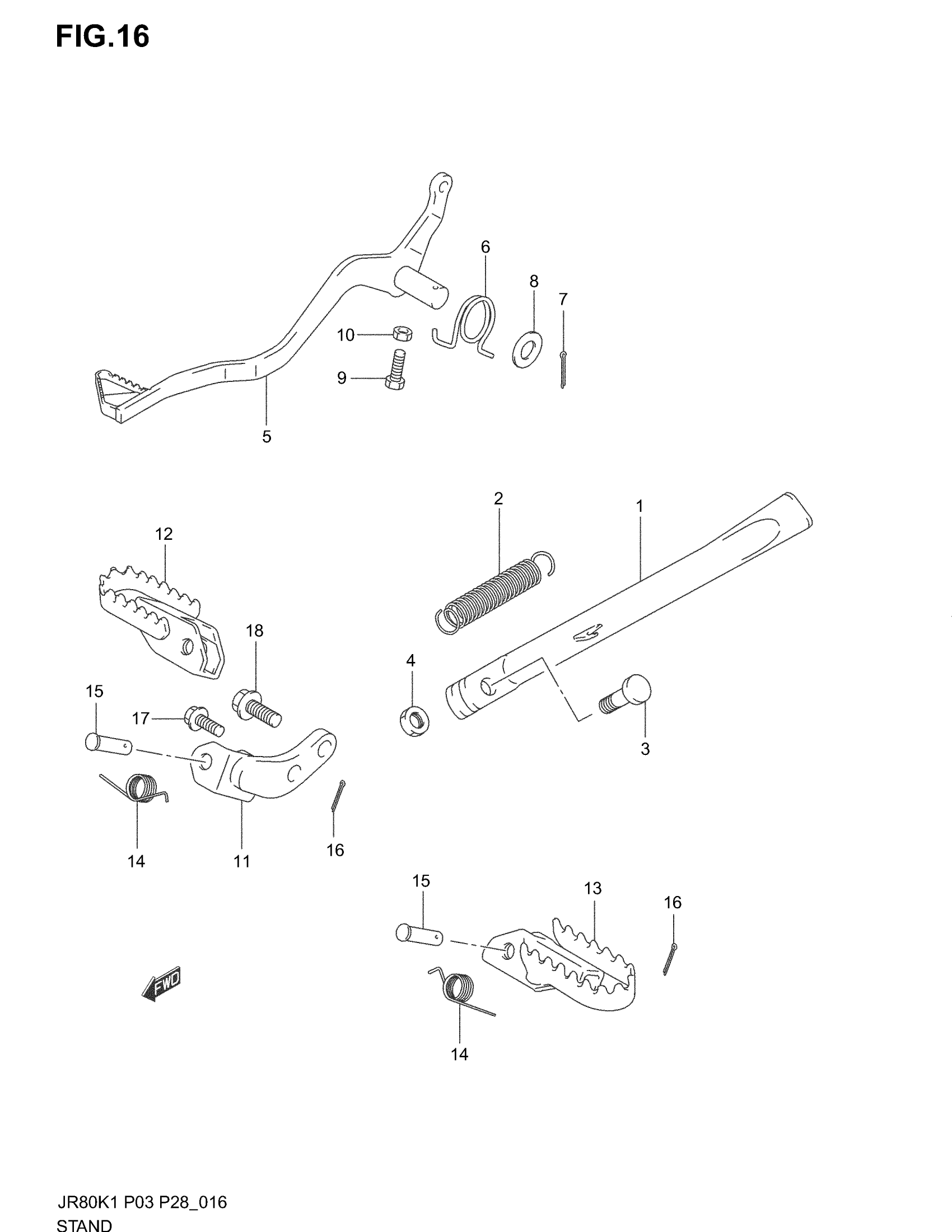

Suzuki JR80 (2004) STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, PROP (BLACK)

42310-03400-019

$47.00

2

SPRING

09443-14017

$3.04

3

BOLT

09100-10287

$3.48

4

NUT

09140-10043

$2.68

5

PEDAL, BRAKE

43110-03401

$48.03

6

SPRING This part replaces 09448-25007.

09448-25007-XC0

$5.07

7

PIN This part replaces 04111-30308.

04111-3030A

$1.49

8

WASHER

09160-15002

$1.91

9

BOLT | MODEL K1

09100-06009

$1.91

9

BOLT | MODEL K2/K3/K4

09128-06028

$1.98

10

NUT This part replaces 08310-00063.

08310-0006A

$1.84

11

HOLDER, FRONT FOOTREST (BLACK) | MODEL K1

43510-03401-019

$9.36

11

HOLDER, FRONT FOOTREST (BLACK) | MODEL K2/K3/K4

43510-03402-019

$31.70

12

FOOTREST, FRONT RH (BLACK)

43550-46000-019

$20.27

13

FOOTREST, FRONT LH (BLACK)

43560-46000-019

$20.97

14

SPRING

09448-14012

$3.04

15

PIN

09200-08002

$2.05

16

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

17

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

$3.05

18

BOLT, NO.2

09103-08505

$3.58
