2004 Suzuki JR80 Rear Fender Diagram

← All diagrams

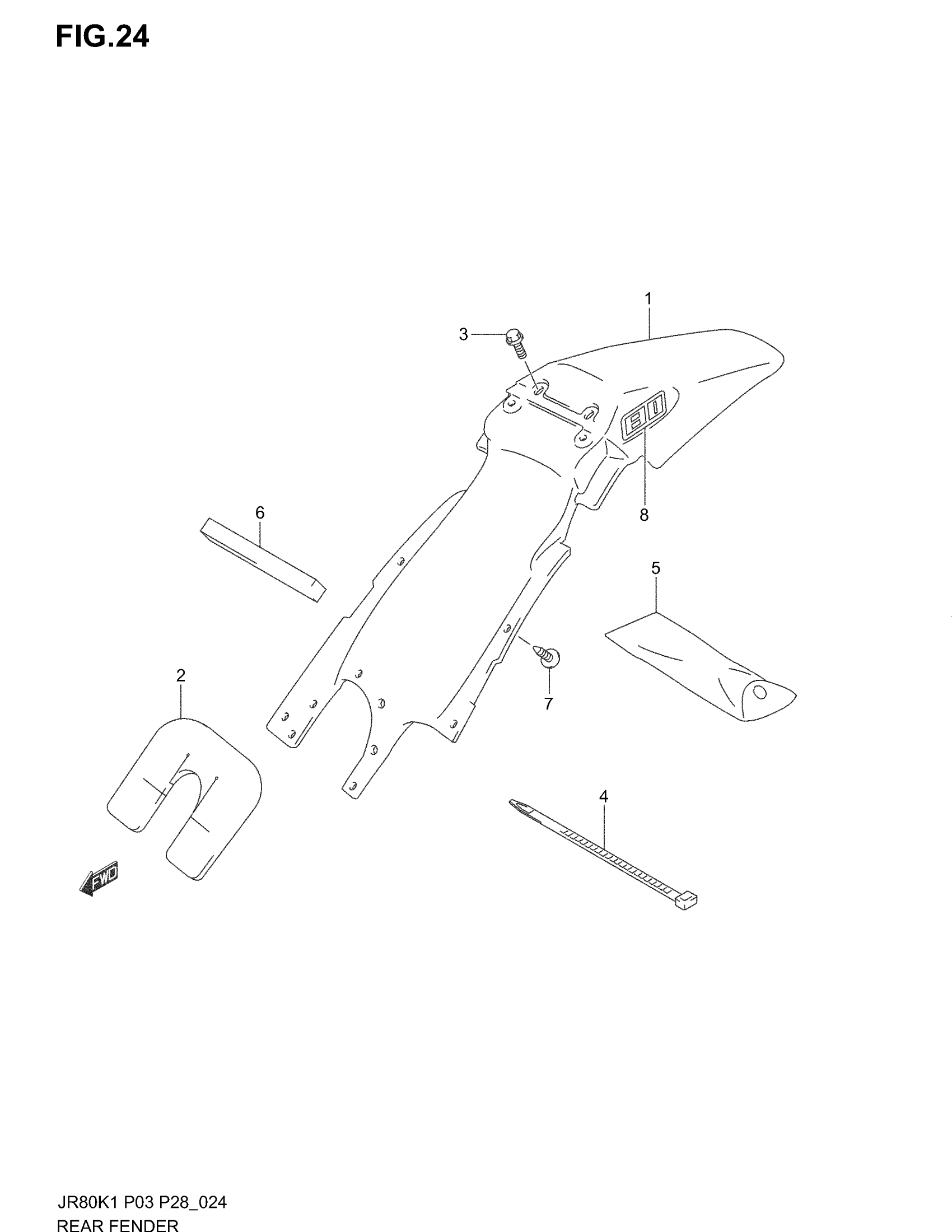

Find the part on the Rear Fender diagram for your 2004 Suzuki JR80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki JR80 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (YELLOW) | MODEL K1 This part replaces 63111-034A0-YR1.

63111-034A0-YU1

1
Out of stock

1

FENDER, REAR (YELLOW) | MODEL K2/K3/K4

63111-034A0-YU1

1
Out of stock

2

MUD GUARD, REAR FENDER

63411-03400

1
Out of stock

3

SCREW

09139-06083

2
Out of stock

4

CLAMP

09407-25402

4
Out of stock

5

TOOL ASSY

09800-21027

1
Out of stock

6

CUSHION

63191-034A0

1
Out of stock

7

SCREW This part replaces 03541-05163.

03541-0516A

2
Out of stock

8

EMBLEM | MODEL K2/K3/K4

68171-034A0-GY8

2
Out of stock
