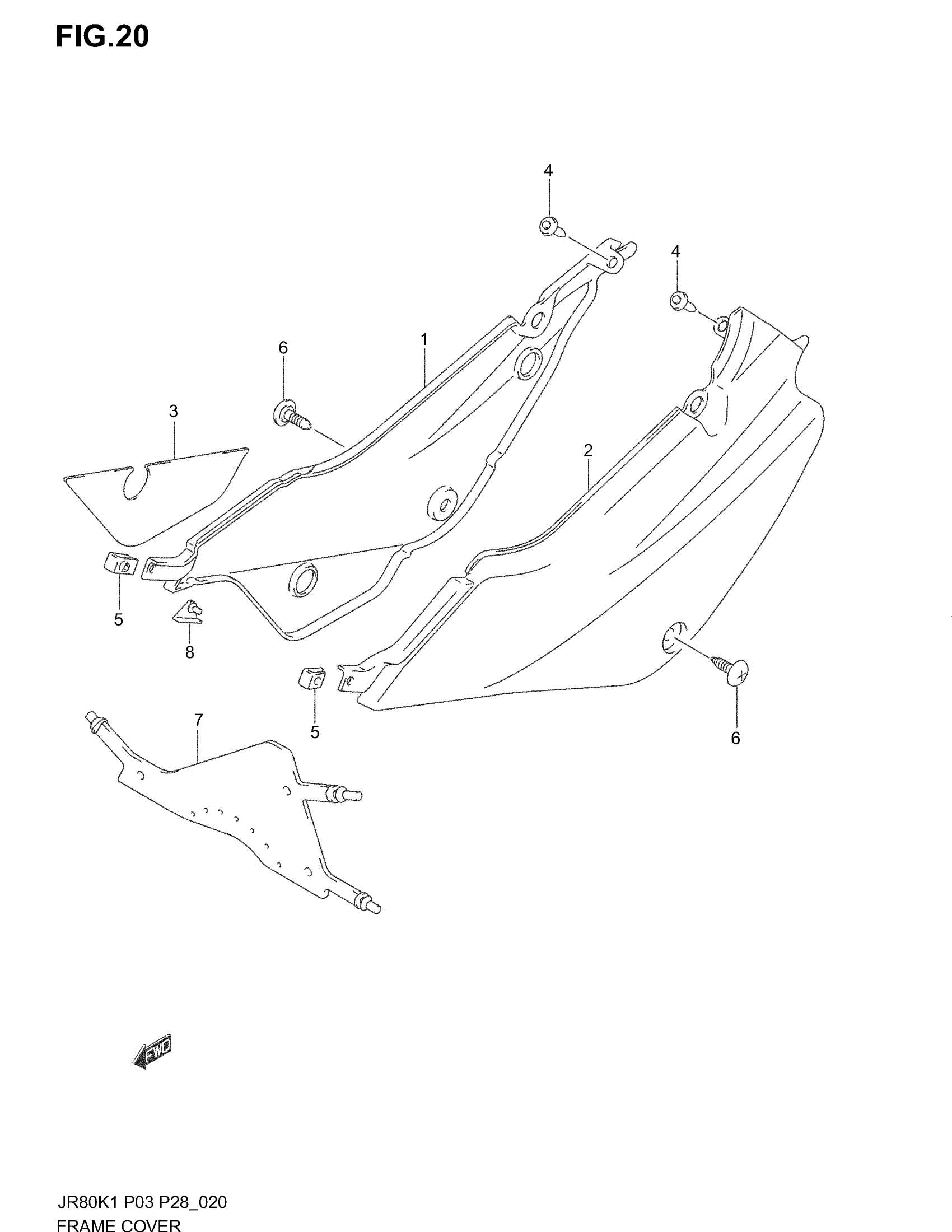

Suzuki JR80 (2004) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW) | MODEL K1 This part replaces 47111-034A0-YR1.

47111-034A0-YU1

Unavailable

1

COVER, FRAME RH (YELLOW) | MODEL K2

47111-034A0-YU1

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL K3/K4

47111-034A0-30H

$123.98

2

COVER, FRAME LH (YELLOW) | MODEL K1 This part replaces 47211-034A0-YR1.

47211-034A0-YU1

Unavailable

2

COVER, FRAME LH (YELLOW) | MODEL K2

47211-034A0-YU1

Unavailable

2

COVER, FRAME LH (WHITE) | MODEL K3/K4

47211-034A0-30H

$126.32

3

TAPE, RH (BLACK)

68136-034A0-291

Unavailable

4

CLIP UPPER (BLACK)

09409-06314-5PK

$2.80

5

NUT

09148-05038

$1.97

6

SCREW, LOWER

09139-06083

$2.24

7

MUD GUARD

47219-034A0

Unavailable

8

CUSHION

47115-034A0

$9.60
