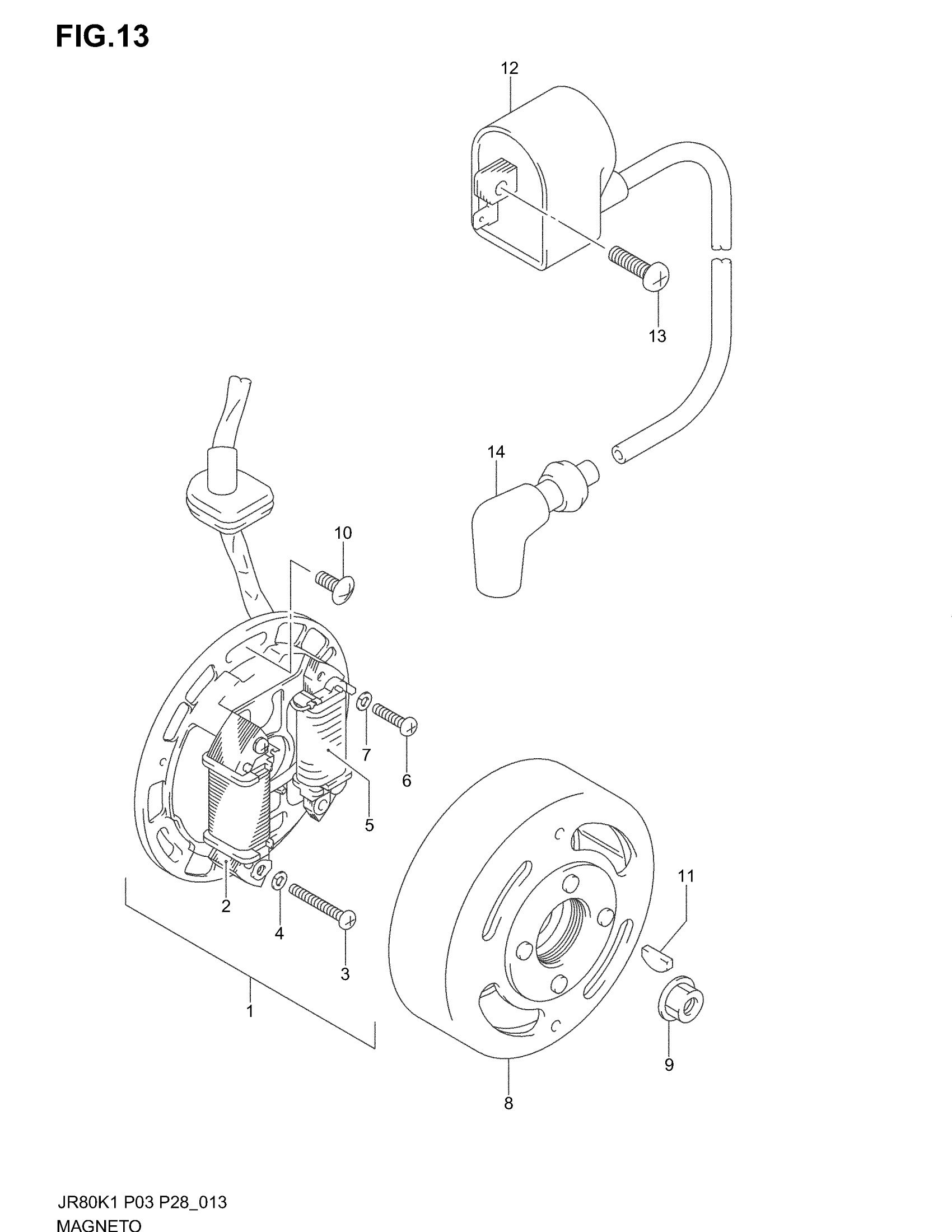

Suzuki JR80 (2004) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 7 This part replaces 32101-03420.

32101-03421

$178.00

2

COIL, LIGHTING

32120-03420

$66.93

3

SCREW

02112-04307

$2.72

4

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

5

COIL, PRIMARY

32140-35410

$92.18

6

SCREW This part replaces 02112-04163.

02112-0416A

$1.49

7

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

8

ROTOR

32102-03420

Unavailable

9

NUT This part replaces 08316-10103.

08316-1010B

$2.66

10

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

11

KEY

08341-31039

$1.89

12

UNIT & COIL ASS This part replaces 33410-48710.

33410-48711

$221.92

13

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

14

CAP, SPARK PLUG | MODEL K1 This part replaces 33510-20A01.

33510-20A02

$24.39

14

CAP, SPARK PLUG | MODEL K2/K3/K4

33510-20A02

$24.39
