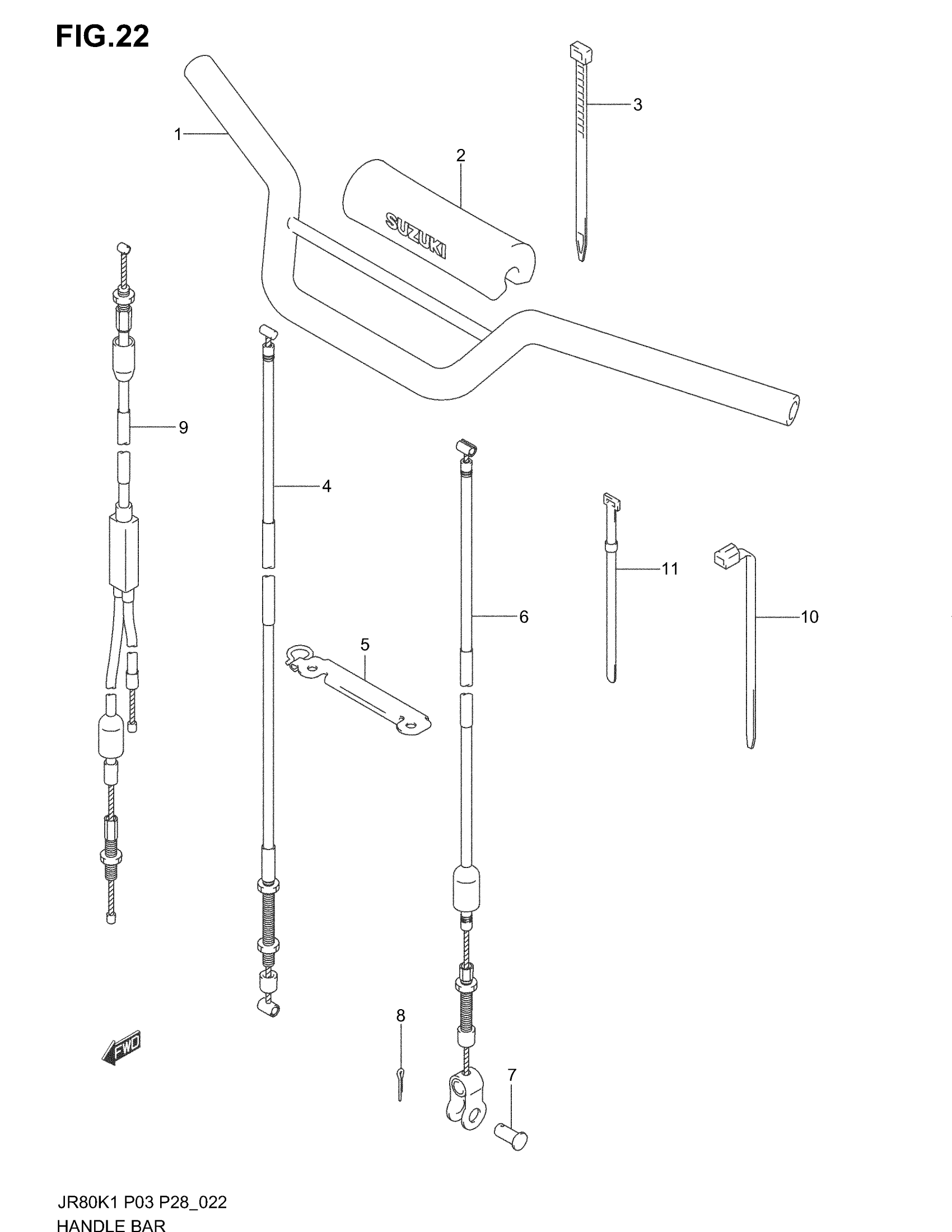

Suzuki JR80 (2004) HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL K1 This part replaces 56110-034A0-291.

56110-034A1-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL K2/K3/K4

56110-034A1-291

Unavailable

2

PAD, CROSS This part replaces 56172-03401.

56172-24500

$16.35

3

CLAMP

09407-14407

$3.57

4

CABLE ASSY, BRAKE

58110-034A0

$29.32

5

GUIDE, BRAKE CABLE

58620-034A0

Unavailable

6

CABLE ASSY, CLUTCH

58200-034A0

$14.94

7

PIN

09200-06004

$2.20

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

CABLE ASSY,THRO This part replaces 58300-034A0.

58300-034A1

$25.92

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:165)

09407-18402

$2.19
