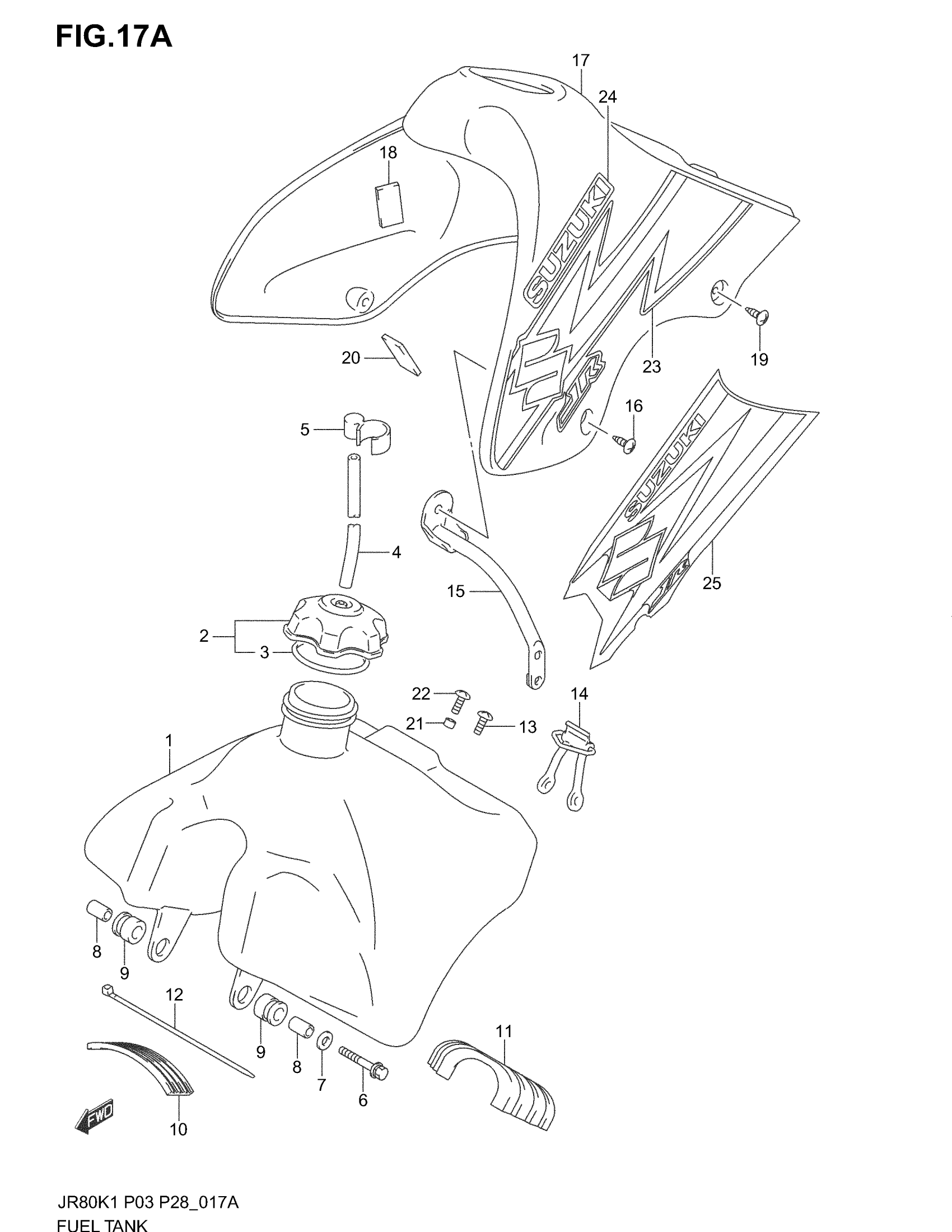

Suzuki JR80 (2004) FUEL TANK (MODEL K3/K4) Diagram

#

Description
Price

1

TANK, FUEL

44110-034A0

Unavailable

2

CAP SET,FUEL TA | Includes Item(s) 3 This part replaces 44200-27870.

44200-27871

$22.96

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

CLAMP, HOSE

44486-03400

$5.32

6

BOLT This part replaces 01570-06353.

01570-0635B

$2.92

7

WASHER

09160-06056

$1.72

8

SPACER

09180-06295

$2.88

9

CUSHION This part replaces 09320-10044.

09320-10081

$10.40

10

CUSHION, UPPER FRONT

44541-14300

$8.12

11

CUSHION, UPPER REAR

44542-03400

$17.07

12

CLAMP

09407-25402

$4.64

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

14

BAND, REAR

44560-034A0

Unavailable

15

BRACKET, TANK COVER

44170-034A0

$55.78

16

SCREW, BRACKET

09139-06083

$2.26

17

COVER, FUEL TANK (YELLOW)

44271-034A0-YU1

$162.37

18

CUSHION

53145-48B00

$3.30

19

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

20

CUSHION This part replaces 44613-13600.

44831-17B00

$6.70

21

SPACER, NO.2

09180-06246

$2.12

22

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

23

TAPE SET, TANK COVER | MODEL K3

68120-034C0-KD2

Unavailable

24

EMBLEM | MODEL K3

68111-03410-GY8

Unavailable

25

TAPE SET, TANK COVER | MODEL K4

68120-03480-NN2

Unavailable
