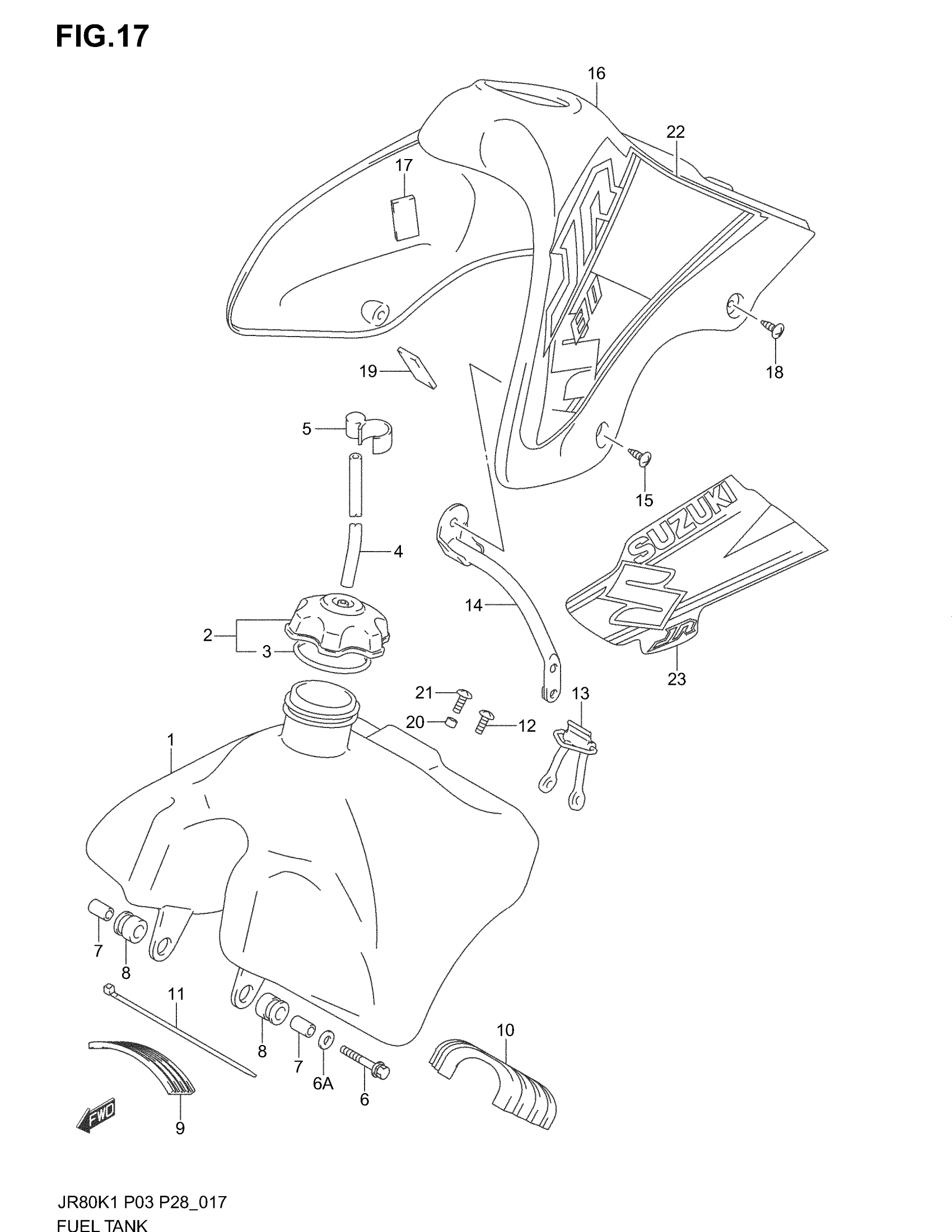

Suzuki JR80 (2004) FUEL TANK (MODEL K1/K2) Diagram

#

Description
Price

1

TANK, FUEL

44110-034A0

Unavailable

2

CAP SET,FUEL TA | Includes Item(s) 3 This part replaces 44200-27870.

44200-27871

$22.96

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

CLAMP, HOSE

44486-03400

$5.32

6

BOLT This part replaces 01570-06353.

01570-0635B

$2.92

6A

WASHER

09160-06056

$1.72

7

SPACER

09180-06295

$2.88

8

CUSHION This part replaces 09320-10044.

09320-10081

$10.40

9

CUSHION, UPPER FRONT

44541-14300

$8.12

10

CUSHION, UPPER REAR

44542-03400

$17.07

11

CLAMP

09407-25402

$4.64

12

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

13

BAND, REAR

44560-034A0

Unavailable

14

BRACKET, TANK COVER

44170-034A0

$55.78

15

SCREW, BRACKET

09139-06083

$2.26

16

COVER, FUEL TANK (YELLOW) | MODEL K1 This part replaces 44271-034A0-YR1.

44271-034A0-YU1

$162.37

16

COVER, FUEL TANK (YELLOW) | MODEL K2

44271-034A0-YU1

$162.37

17

CUSHION

53145-48B00

$3.30

18

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

19

CUSHION This part replaces 44613-13600.

44831-17B00

$6.70

20

SPACER, NO.2

09180-06246

$2.12

21

BOLT, REAR | MODEL K1

09111-06066

$2.62

21

BOLT (6X12) | MODEL K2 This part replaces 63161-43E00.

09111-06107

$2.60

22

TAPE SET, TANK COVER | MODEL K1

68120-034A0-DY9

Unavailable

23

TAPE SET, TANK COVER | MODEL K2

68120-034B0-GY7

Unavailable
