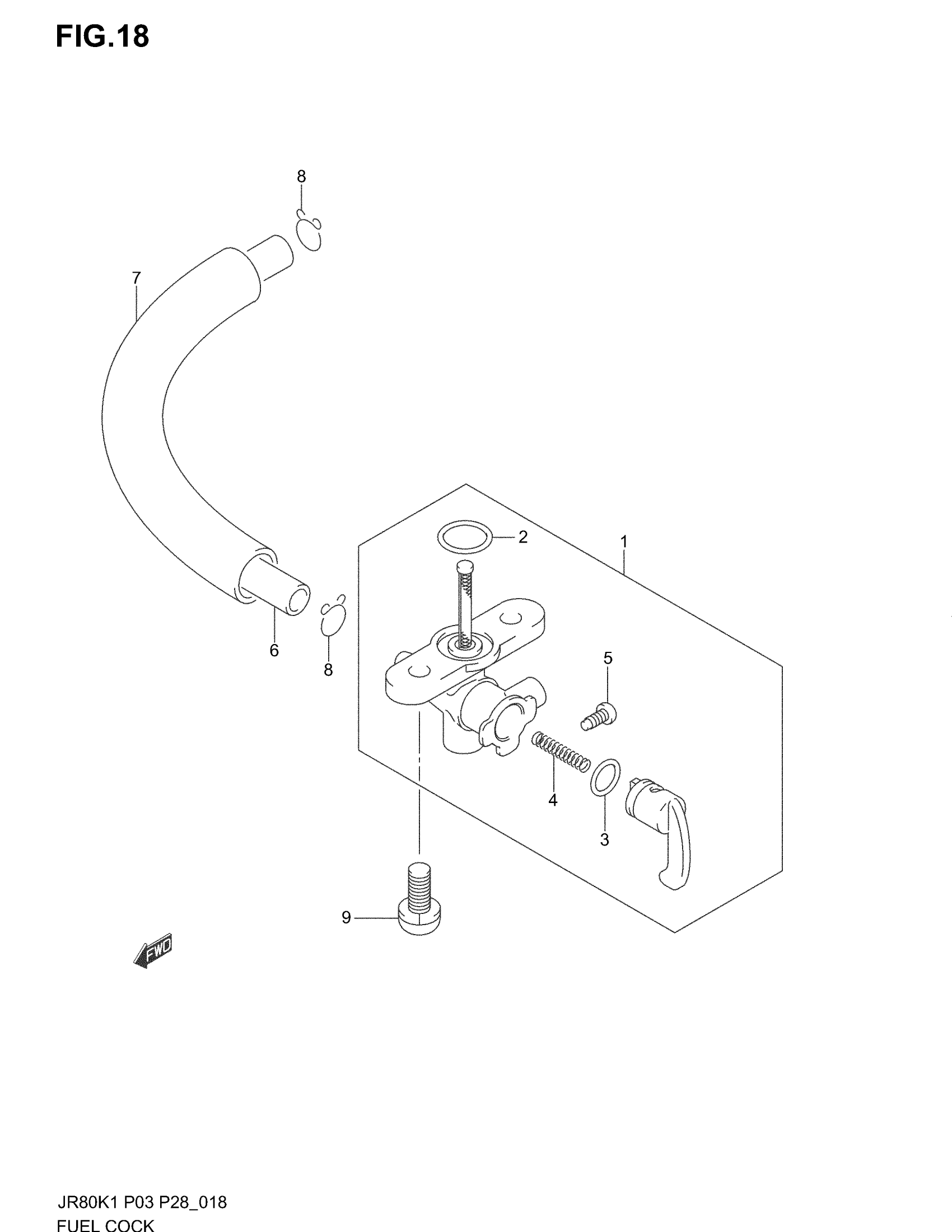

Suzuki JR80 (2004) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY, FUEL | Includes Item(s) 2 - 5

44300-04420

$56.98

2

O RING, JOINT

44348-41370

$1.91

3

O RING, LEVER

44353-41370

$4.37

4

SPRING

44357-32470

$2.21

5

SCREW

44343-41370

$2.22

6

HOSE,5X10X600 This part replaces 09355-50105-600.

44421-13ER0

$10.06

7

PROTECTOR (L:600!150)

09351-14152-600

$10.62

8

CLIP (ID:9.4,H:8)

09401-09403

$2.03

9

SCREW This part replaces 02112-36163.

02112-3616A

$1.97
