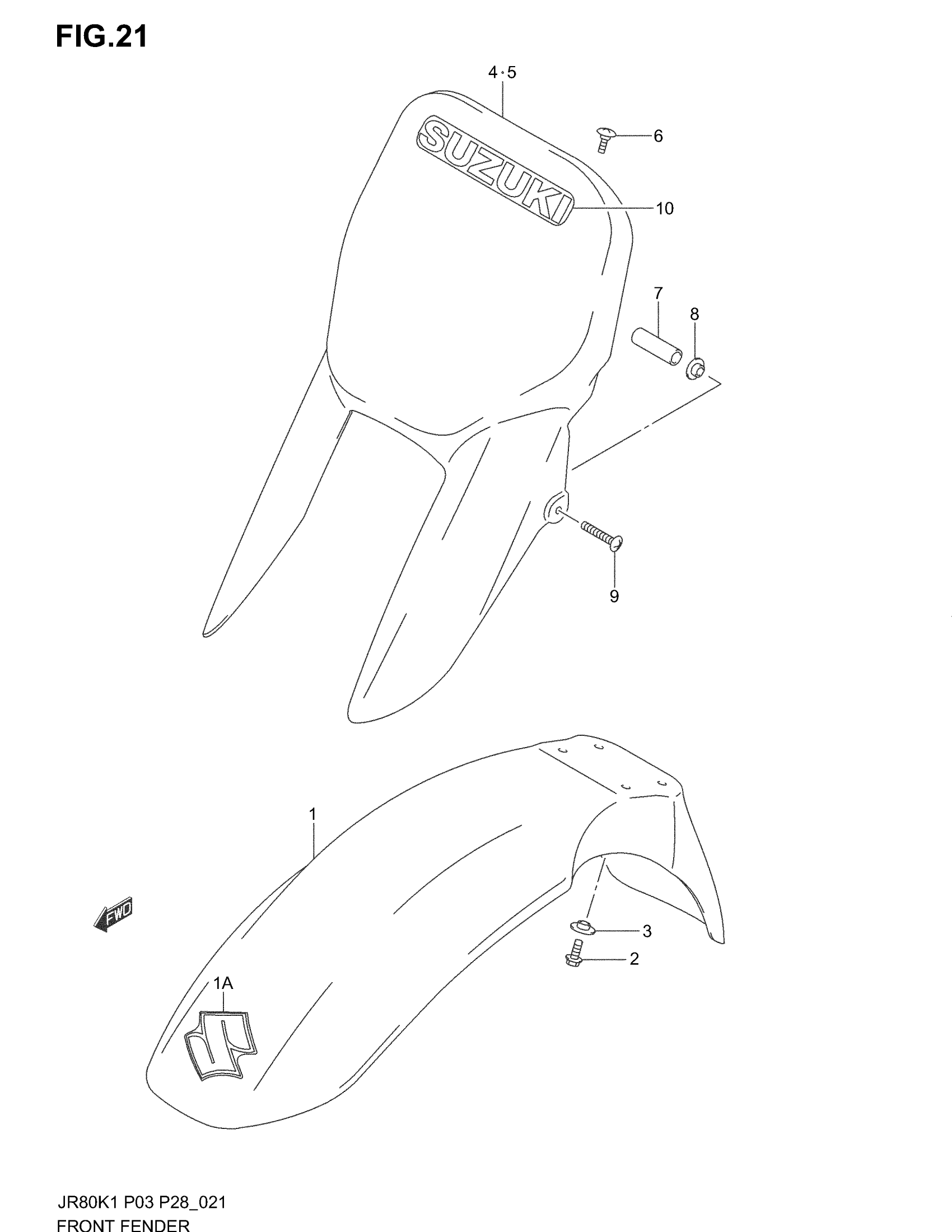

Suzuki JR80 (2004) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW) | MODEL K1 This part replaces 53111-034A0-YR1.

53111-034A0-YU1

$114.08

1

FENDER, FRONT (YELLOW) | MODEL K2/K3/K4

53111-034A0-YU1

$114.08

1A

EMBLEM | MODEL K4

68151-09A00-NN3

Unavailable

2

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

3

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

4

PLATE, FRONT NUMBER (YELLOW) | MODEL K1 P3 This part replaces 94911-034A0-YR1.

94911-034A0-YU1

Unavailable

4

PLATE, FRONT NUMBER (YELLOW) | MODEL K2 P3

94911-034A0-YU1

Unavailable

4

PLATE, FRONT NUMBER (WHITE) | MODEL K3/K4 P3

94911-034A0-30H

$97.80

5

PLATE, FRONT NUMBER (YELLOW) | MODEL K1 P28

94911-034B0-YR1

Unavailable

5

PLATE, FRONT NUMBER (YELLOW) | MODEL K2 P28

94911-034B0-YU1

Unavailable

5

PLATE, FRONT NUMBER (WHITE) | MODEL K3/K4 P28

94911-034B0-30H

Unavailable

6

SCREW, UPPER | MODEL K1

09139-06088

$3.85

6

SCREW, UPPER | MODEL K2/K3/K4

09139-06113

$4.00

7

SPACER, LOWER

09180-05051

$3.03

8

WASHER

09169-05019

$3.30

9

SCREW, INNER This part replaces 02142-05303.

02142-0530B

$2.60

10

EMBLEM | MODEL K2

68721-09A00-GY8

$12.82

10

EMBLEM | MODEL K3/K4

68721-09A00-8YM

$12.82
