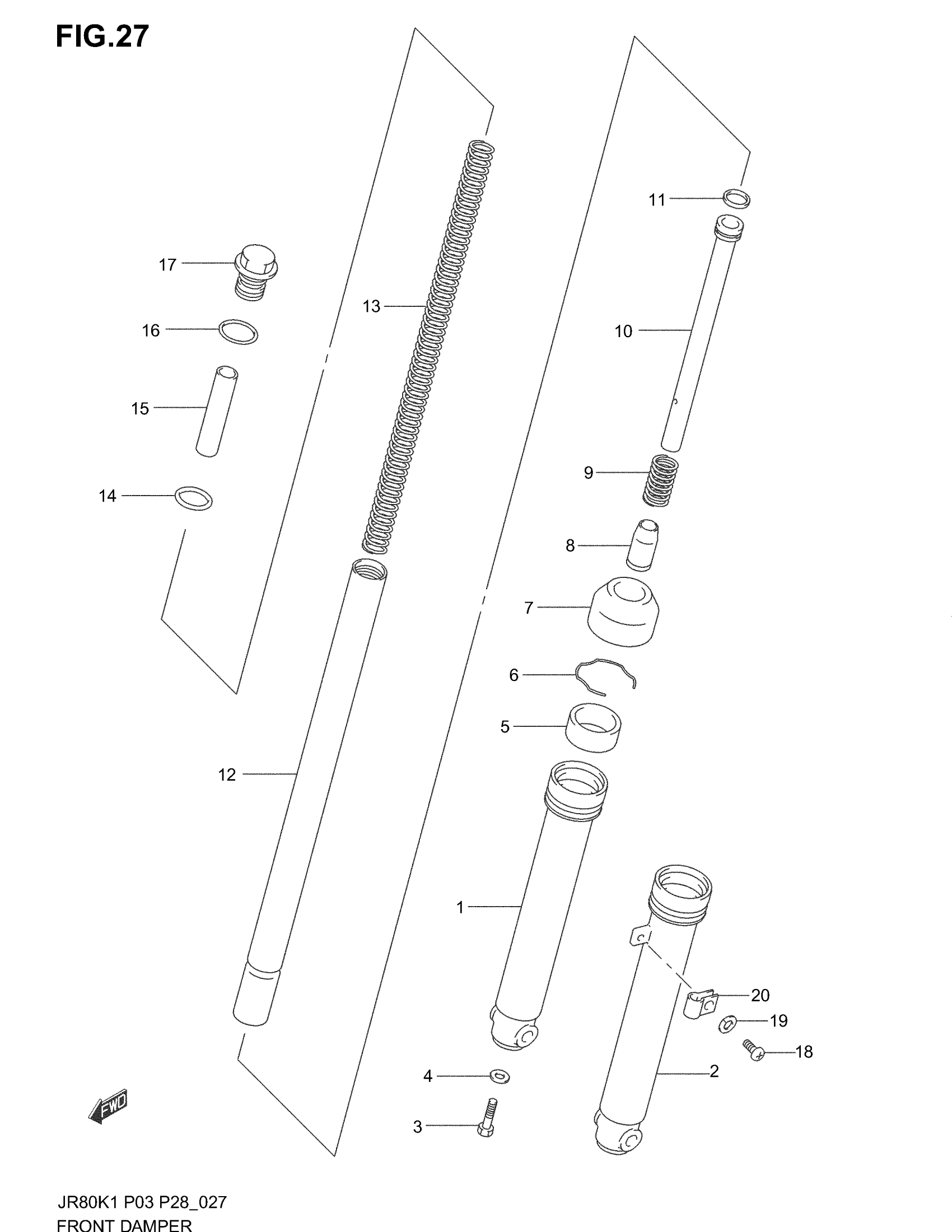

Suzuki JR80 (2004) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-03431

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 17

51104-03431

Unavailable

1

TUBE, OUTER RH

51131-03431

Unavailable

2

TUBE, OUTER LH

51141-03431

Unavailable

3

BOLT

51147-48130

$4.34

4

GASKET

51148-36011

$3.56

5

OIL SEAL

51153-03400

$13.56

6

RING, OIL SEAL STOPPER

51156-48130

$5.32

7

SEAL,DUST This part replaces 51571-46100.

51571-46101

$5.64

8

PIECE, OIL LOCK

51195-46684

Unavailable

9

SPRING

51177-46100

Unavailable

10

CYLINDER

51146-03400

Unavailable

11

RING, PISTON

51196-46100

$8.42

12

TUBE, INNER

51110-46450

Unavailable

13

SPRING

51171-03400

Unavailable

14

SEAT, SPRING

51192-46100

$4.52

15

SPACER, SPRING

51176-46100

Unavailable

16

O RING

09280-18004

$5.18

17

BOLT

51351-46190

$20.45

18

SCREW

02112-04127

$2.23

19

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

20

CLIP

51452-46040

$6.58
