Description

Price

1

HEAD, CYLINDER | MODEL K1

11111-46400

Unavailable

1

HEAD, CYLINDER | MODEL K2/K3/K4

11111-46410

Unavailable

2

GASKET, CYLINDER HEAD

11141-46082

$5.80

3

NUT This part replaces 08316-10083.

08316-1008B

$2.66

4

STUD BOLT (8X115)

09108-08006

$5.00

5

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.91

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

SPARK PLUG (NGK,BR7ES)

09482-00117

$3.03

7

SPARK PLUG (DENSO,W22ESR)

09482-00245-111

$6.52

8

CYLINDER This part replaces 11210-46400.

11210-46401

$464.88

9

GASKET, CYLINDER

11241-46010

$6.15

10

RUBBER PAD

11252-13630

$3.25

11

VALVE ASSY, REED | Includes Item(s) 12 - 14

13150-26411

$89.43

12

STOPPER

13152-26410

$7.67

13

VALVE, REED

13153-26410

$9.69

14

SCREW This part replaces 02112-03083.

02112-0308A

$1.80

15

GASKET, REED VALVE

13156-46001-H17

$2.83

16

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

17

PIPE,INTAKE This part replaces 13110-03400.

13110-03401

$14.78

18

CLAMP This part replaces 09402-38306.

09402-38303

$6.93

19

BOLT | MODEL K1 This part replaces 01570-06203.

01570-0620A

$2.19

19

BOLT | MODEL K2/K3/K4 This part replaces 01570-06163.

01570-0616A

$2.23

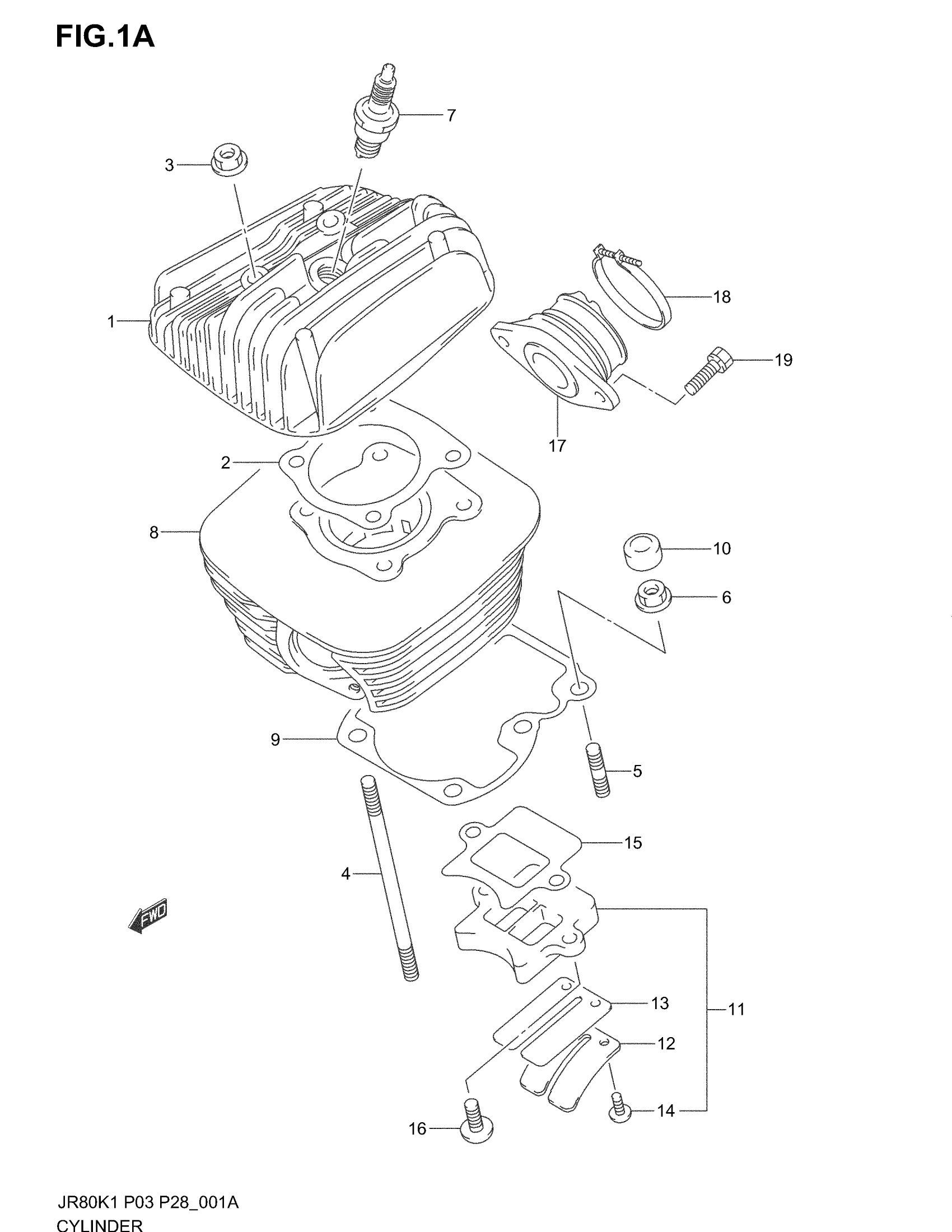

Suzuki JR80 (2004) CYLINDER Diagram
