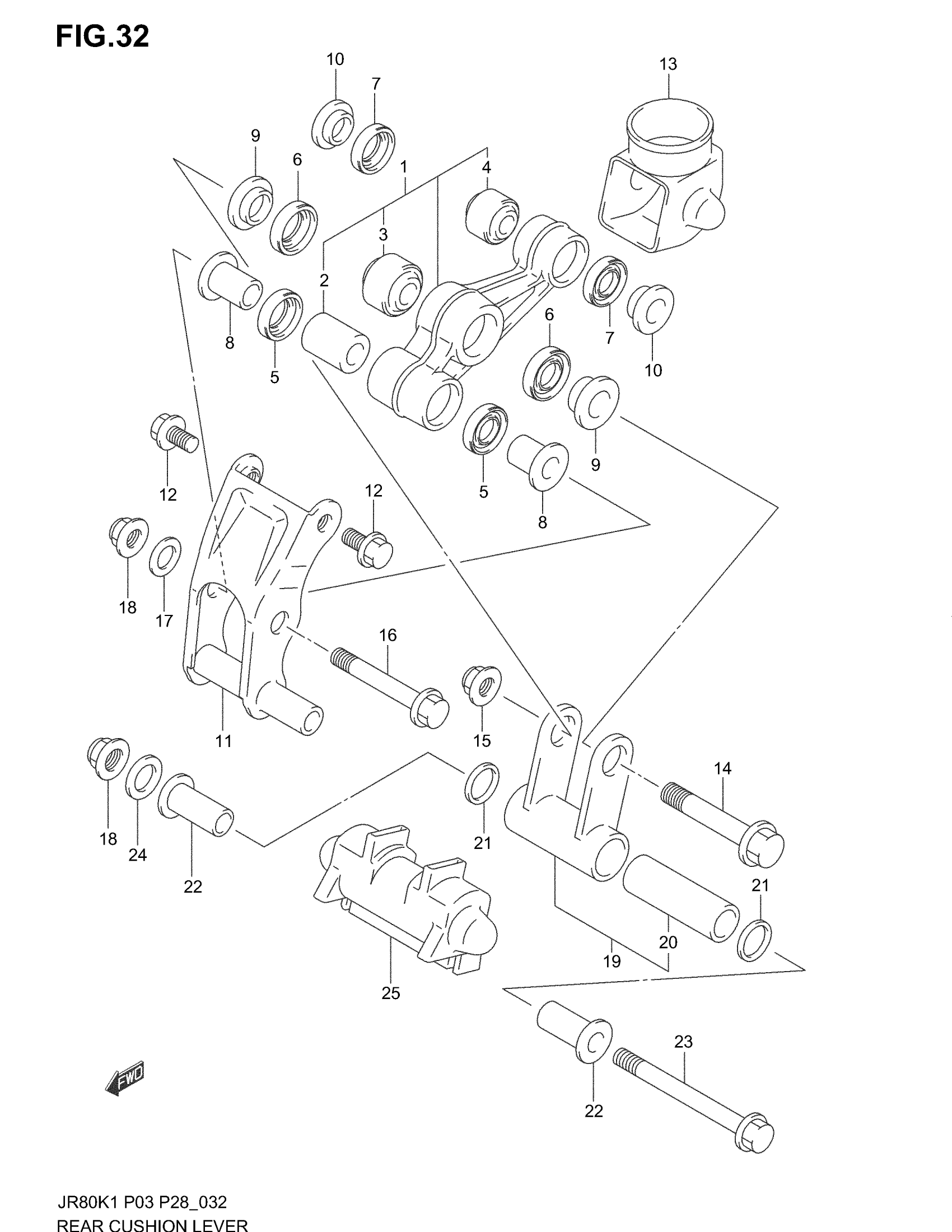

Suzuki JR80 (2004) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION | Includes Item(s) 2 - 4

62600-03812

Unavailable

2

BUSH, FRONT (15X20X31)

62682-04701

$16.87

3

BEARING, CENTER (12X26X16)

09269-12002

$62.71

4

BEARING, REAR (10X24X14.5)

09269-10003

$58.48

5

DUST SEAL, FRONT

62683-13600

$5.02

6

DUST SEAL, CENTER

62683-04700

$4.82

7

DUST SEAL, REAR

62683-43400

$5.67

8

SPACER, FRONT

62684-03400

Unavailable

9

SPACER, CENTER

62684-04701

Unavailable

10

SPACER, REAR

62684-43401

$10.75

11

HOLDER, CUSHION LEVER

62690-03400

Unavailable

12

BOLT, HOLDER (8X16)

62313-04701

Unavailable

13

BOOT, LEVER REAR

62689-03411

Unavailable

14

BOLT, CENTER (12X55)

09103-12007

Unavailable

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76

16

BOLT, FRONT (10X65)

09103-10058

Unavailable

17

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

18

NUT

08319-31107

$2.73

19

ROD, CUSHION LEVER | Includes Item(s) 20

62600-03820

Unavailable

20

BUSH, LOWER (15X20X54)

62642-03400

Unavailable

21

DUST SEAL, LOWER

62683-20400

$3.37

22

SPACER, LOWER

62316-03400

Unavailable

23

BOLT, LOWER (10X69)

62315-03400

Unavailable

24

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

25

BOOT, ROD LOWER

62689-03401

Unavailable
