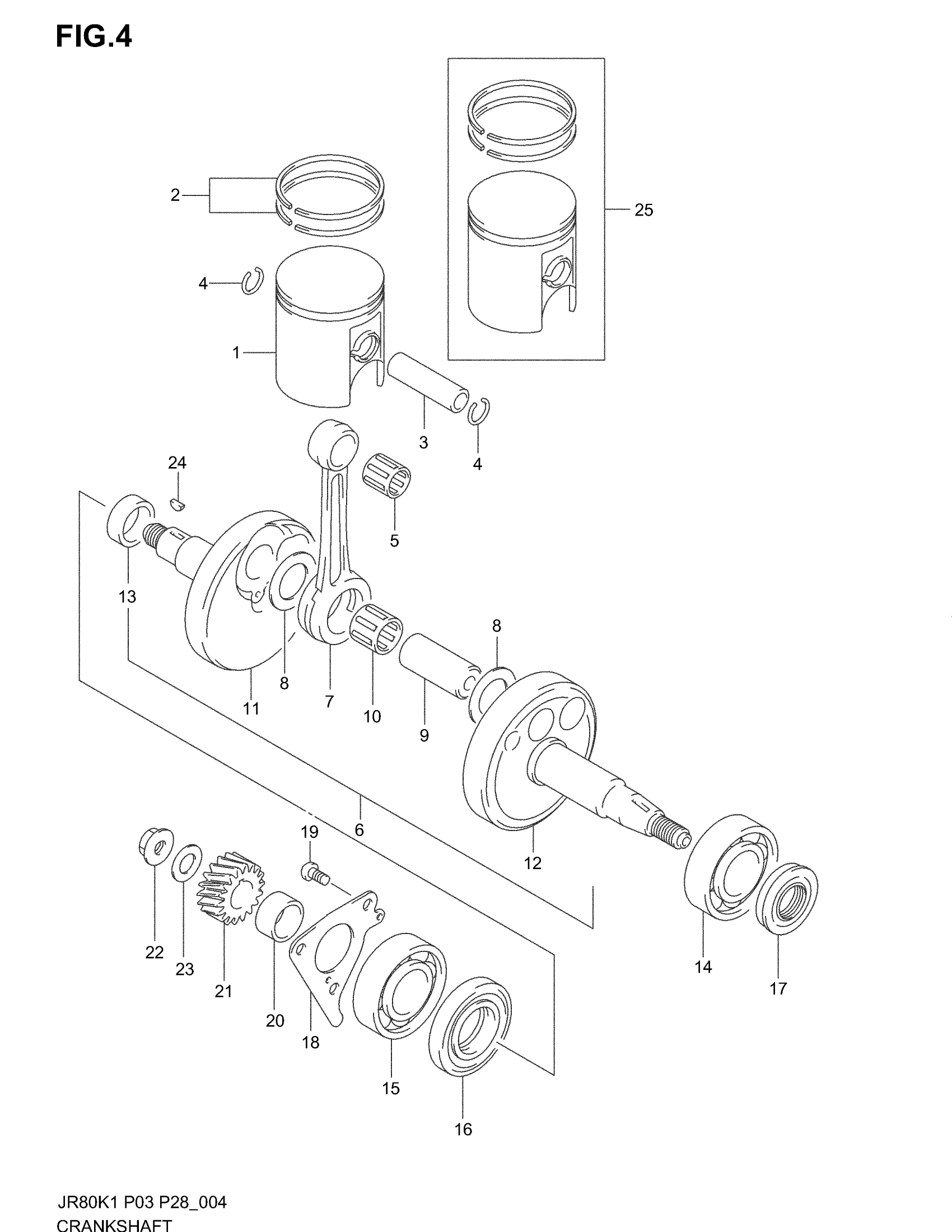

Suzuki JR80 (2004) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD) | MODEL K1 This part replaces 12110-46410.

12110-46411

$51.53

1

PISTON (STD) | MODEL K2/K3/K4

12110-46411

$51.53

2

RING SET, PISTON (STD)

12140-25631

$31.65

2

RING SET, PISTON (OS:0.5) | OPT

12140-25631-050

$41.02

2

RING SET, PISTON (OS:1.0) | OPT

12140-28630

$40.22

3

PIN, PISTON

12151-35400

$8.73

4

SNAP RING

09381-12001

$1.49

5

BEARING (12X16X15.8)

09263-12023

$10.19

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 13

12200-46412

$639.30

7

ROD, CONNECTING

12161-14001

$85.28

8

WASHER

09160-17022

$3.23

9

PIN, CRANK

12211-46000

$30.53

10

BEARING (17.7X22.9X14)

09263-17016

$23.45

11

CRANKSHAFT, RH

12220-46810

Unavailable

12

CRANKSHAFT, LH

12261-46411

Unavailable

13

SPACER, RH

09180-20021

$9.93

14

BEARING, DRIVE SHAFT LH | MODEL K1 This part replaces 09262-20019.

09262-20069

$23.28

14

BEARING, LH (20X47X14) | MODEL K2/K3/K4

09262-20048

$25.77

15

BEARING, RH (20X47X14)

09262-20141

$32.43

16

OIL SEAL, RH (26X47X7.3)

09283-26015

$6.17

17

OIL SEAL, LH (20X37X8)

09283-20034

$5.18

18

RETAINER, BEARING RH

12541-46001

$8.42

19

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

20

SPACER

09180-20059

$7.55

21

GEAR, PRIMARY DRIVE (NT:19)

21111-46000

Unavailable

22

NUT

09159-12005

$3.93

23

WASHER

09164-12020

$2.35

24

KEY

08341-31039

$1.89

25

PISTON SET (OS:0.5) | OPT MODEL K1 This part replaces 12100-46410-050.

12100-46411-050

$109.47

25

PISTON SET (OS:0.5) | OPT MODEL K2/K3/K4

12100-46411-050

$109.47

25

PISTON SET (OS:1.0) | OPT MODEL K1 This part replaces 12100-46410-100.

12100-46411-100

$113.18

25

PISTON SET (OS:1.0) | OPT MODEL K2/K3/K4

12100-46411-100

$113.18
