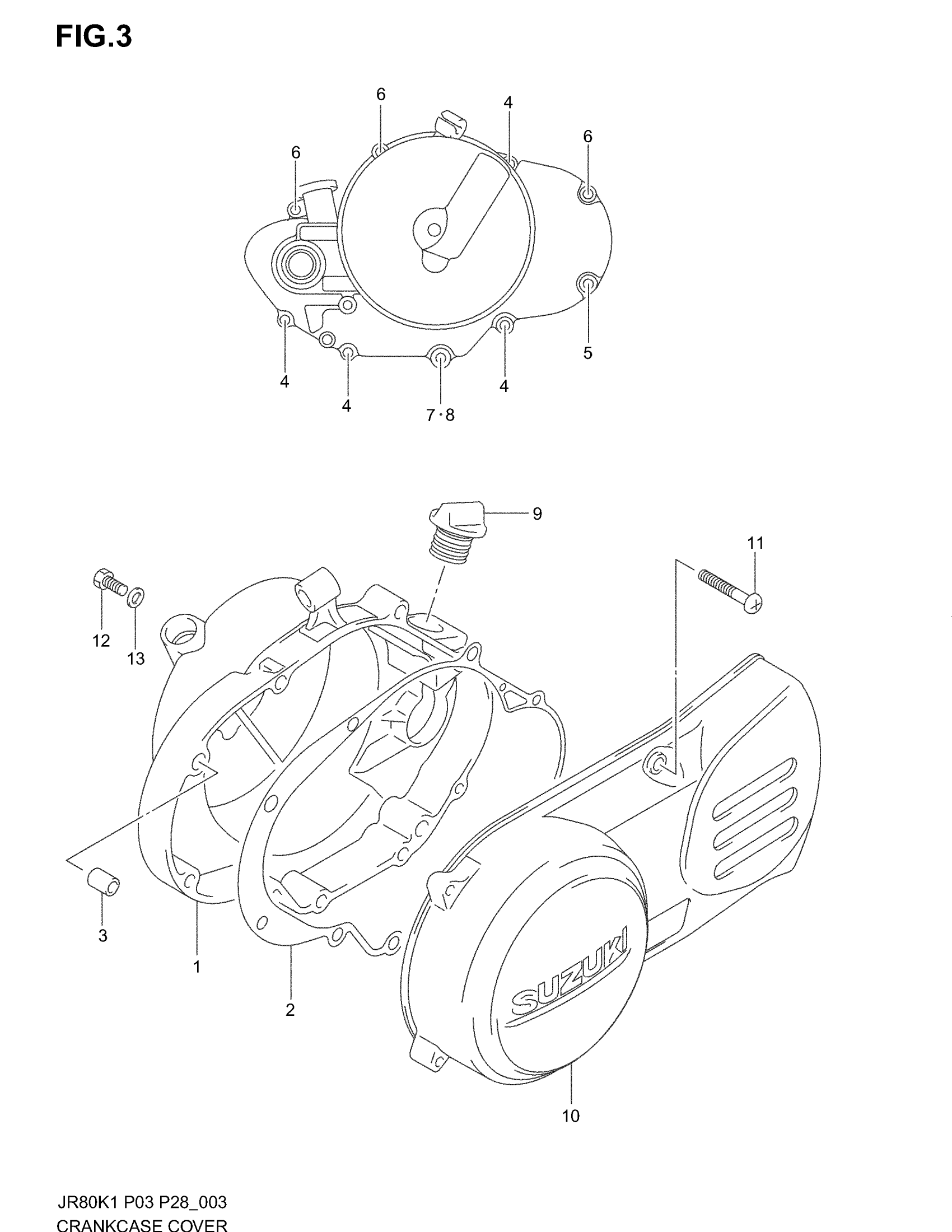

Suzuki JR80 (2004) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-46001

Unavailable

2

GASKET, CLUTCH COVER

11482-46010

$10.34

3

PIN

04211-09129

$1.65

4

SCREW This part replaces 02112-06253.

02112-0625A

$1.80

5

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

6

SCREW This part replaces 02112-06403.

02112-0640A

$1.96

7

SCREW This part replaces 02112-06353.

02112-0635B

$2.19

8

GASKET

09168-06004

$1.49

9

PLUG This part replaces 09259-19001.

09259-19005

$2.98

10

COVER, MAGNETO

11351-46401

$137.02

11

SCREW This part replaces 02112-06253.

02112-0625A

$1.80

12

PLUG, OIL LEVEL

09128-06044

$1.49

13

GASKET (5.8X13X1.2)

09168-06023

$2.35
