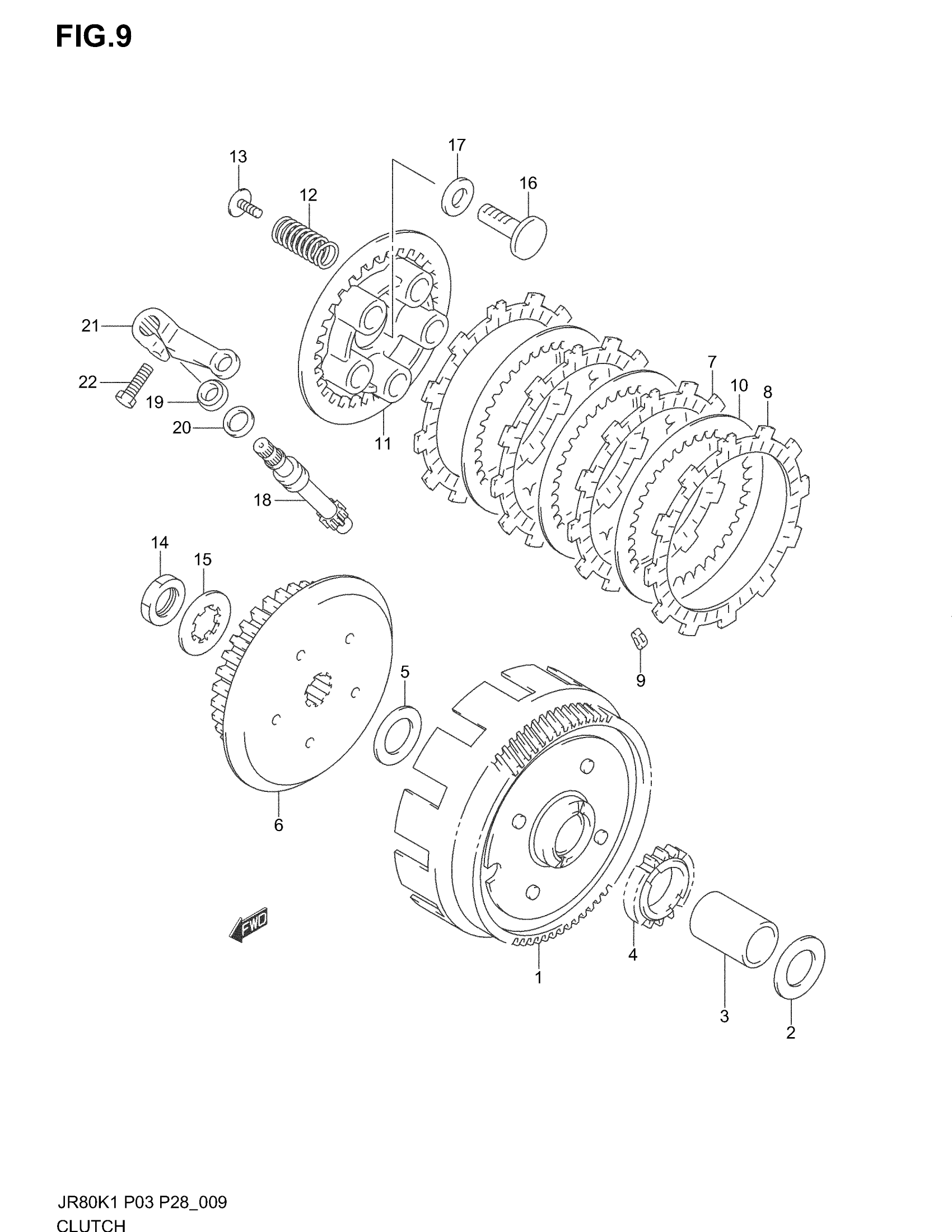

Suzuki JR80 (2004) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:73)

21200-46010

$254.02

2

WASHER (21X30X1.0)

09160-21005

$2.06

3

SPACER, PRIMARY DRIVEN GEAR | 17X22X33.5

21251-21D10

$20.70

4

GEAR, KICK DRIVEN (NT:17) | MODEL K1/K2 This part replaces 26281-46000.

26281-46001

Unavailable

4

GEAR, KICK DRIVEN (NT:17) | MODEL K3/K4

26281-46001

Unavailable

5

WASHER

08211-17282

$2.70

6

HUB, SLEEVE

21411-46000

$71.38

7

PLATE, DRIVE

21441-13A01

$14.73

8

PLATE, DRIVE

21441-46010

$43.02

9

DAMPER,CL DR PL This part replaces 21481-46000.

21481-46001

$10.07

10

PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00

$7.58

11

PLATE, PRESSURE

21462-06C00

$27.28

12

SPRING

09440-15008

$2.10

13

BOLT (5X16)

09116-05020

$2.03

14

NUT

09140-16005

$3.75

15

WASHER (17.1X33X0.8)

09167-17002

$1.91

16

RACK This part replaces 23165-28301.

23165-46000

$22.21

17

BEARING (10.1X22X2.8)

09263-10002

$10.19

18

PINION, RELEASE (NT:12)

23261-41301

$43.68

19

OIL SEAL (10X17X5)

09285-10004

$3.37

20

WASHER (12.5X17X1)

09160-12086

$2.15

21

ARM, CLUTCH RELEASE

23271-46010

$28.97

22

BOLT This part replaces 01500-06163.

01500-0616A

$1.78
