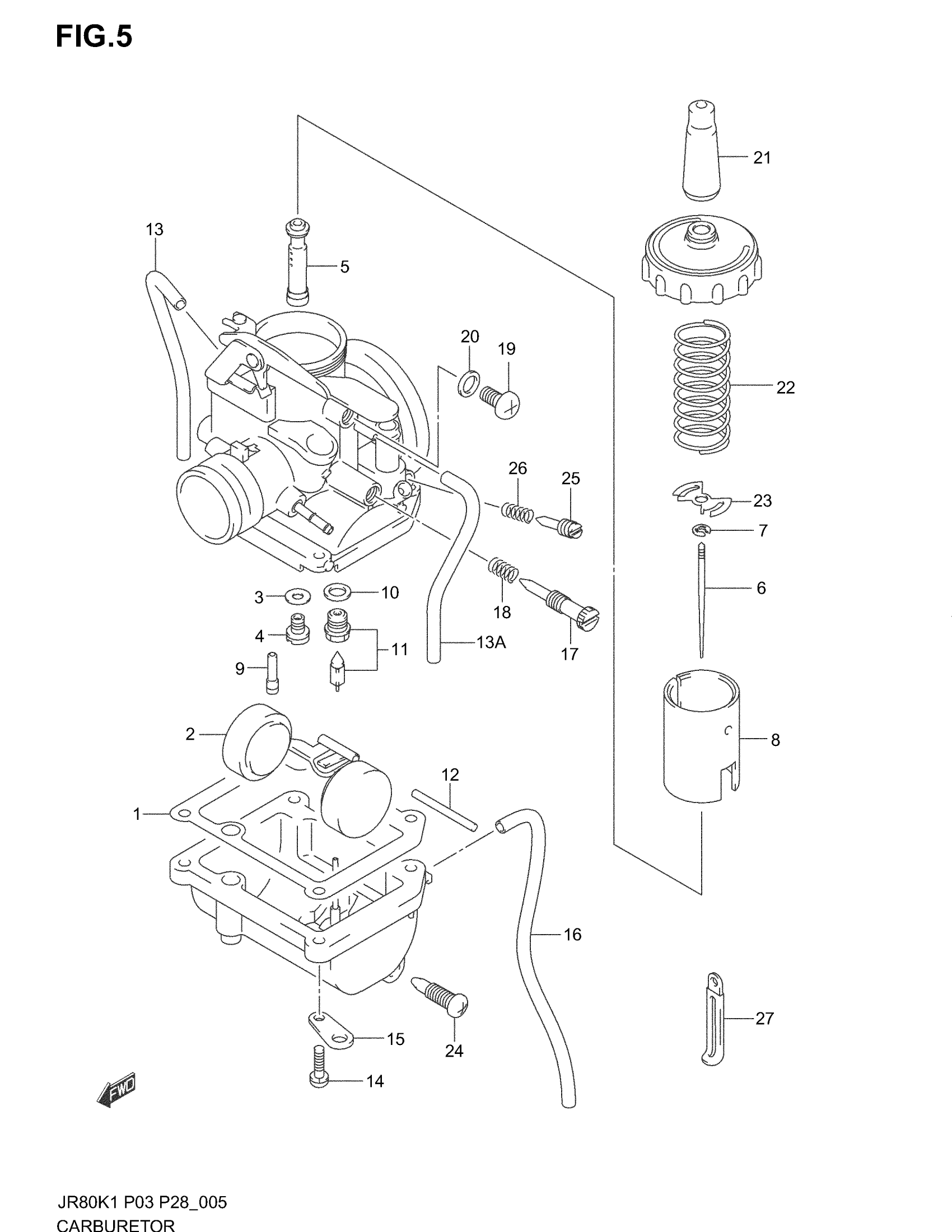

Suzuki JR80 (2004) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 1A - 26

13200-03410

$235.53

1A

GASKET

13251-03410

$5.80

2

FLOAT

13250-04700

$31.65

3

WASHER

13382-03110

$2.80

4

JET, MAIN (87.5)

09491-87005

$11.38

5

JET, NEEDLE (0-4)

09494-00398

$24.87

6

NEEDLE, JET (4L27-3)

13383-03400

$18.43

7

.E-RING

13394-40D20

$5.45

8

THROTTLE VALVE (CA:1.5)

13551-03400

Unavailable

9

JET, PILOT (25)

09492-25005

$9.55

10

WASHER

13392-01010

$2.15

11

VALVE ASSY, NEEDLE

13370-23010

$57.83

12

.PIN, FLOAT

13254-01010

$3.62

13

.HOSE (3X5X600) | L:600!175 This part replaces 09352-30503-600.

09352-30504-600

$4.91

13A

HOSE | L:600!225 This part replaces 09351-30503-600.

09351-30001-600

$3.57

14

SCREW

13601-04148

$2.81

15

PLATE

13693-30010

$6.55

16

HOSE (3X5X125)

13684-03410

Unavailable

17

SCREW, THROTTLE STOP

13267-95110

$5.83

18

SPRING,THROTTLE SCREW

13268-48700

$4.34

19

SCREW This part replaces 02112-05063.

02112-0506B

$1.84

20

GASKET

13523-46110

$2.70

21

BOOT

13681-33010

$9.32

22

SPRING, THROTTLE VALVE RETURN

13573-36110

$6.20

23

PLATE

13581-09210

$6.55

24

SCREW, DRAIN

13247-02340

$4.99

25

SCREW, AIR

13269-95110

$13.35

26

SPRING

13268-01010

$5.28

27

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
