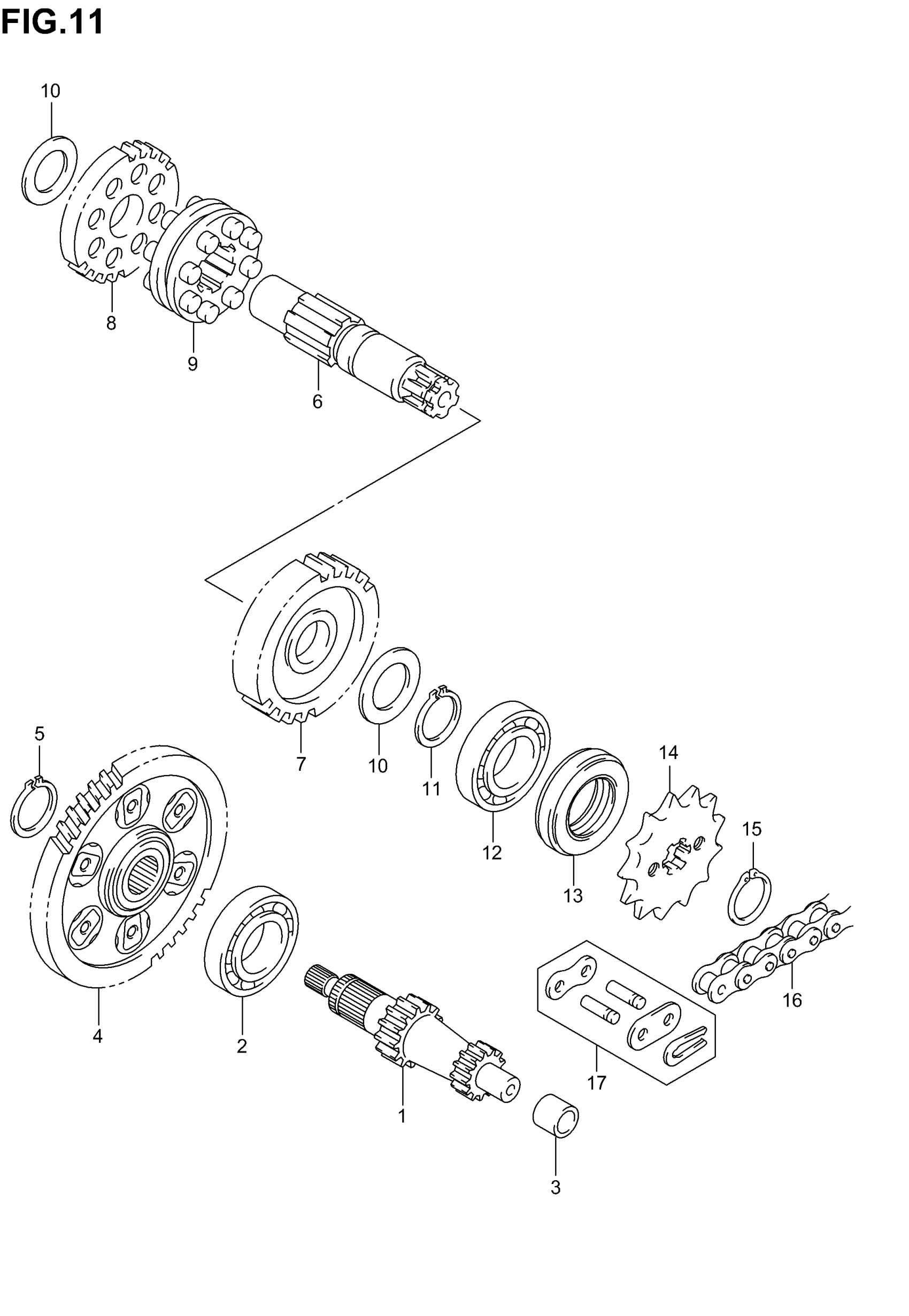

Suzuki JR50 (2006) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:10/13)

24121-04011

Unavailable

2

BEARING (17X40X12)

09262-17023

$16.75

3

BUSH

09304-10005

$5.65

4

GEAR, PRIMARY DRIVEN (NT:53)

21200-04501

Unavailable

5

CIRCLIP

09380-17003

$2.45

6

DRIVE SHAFT

24131-04001

Unavailable

7

GEAR, 1ST DRIVEN (NT:40)

24311-04002

$79.03

8

GEAR, 2ND DRIVEN (NT:29)

24321-04011

$80.52

9

WHEEL, SLIDING

24411-04003

Unavailable

10

WASHER (17X30X1.0)

09181-17223

$2.96

11

CIRCLIP, 2ND DRIVEN

09380-17003

$2.45

12

BEARING (17X40X12)

09262-17023

$16.75

13

OIL SEAL CRANKS This part replaces 09283-17010.

09283-17012

$7.31

14

SPROCKET, ENGINE (NT:13)

27511-19000

$14.98

15

CIRCLIP This part replaces 08331-31166.

08331-31169

$1.78

16

CHAIN ASSY,DRIV This part replaces 27600-01011-078.

27600-01012-078

$20.71

17

JOINT (DID) | OPT

27620-01012

$6.87
