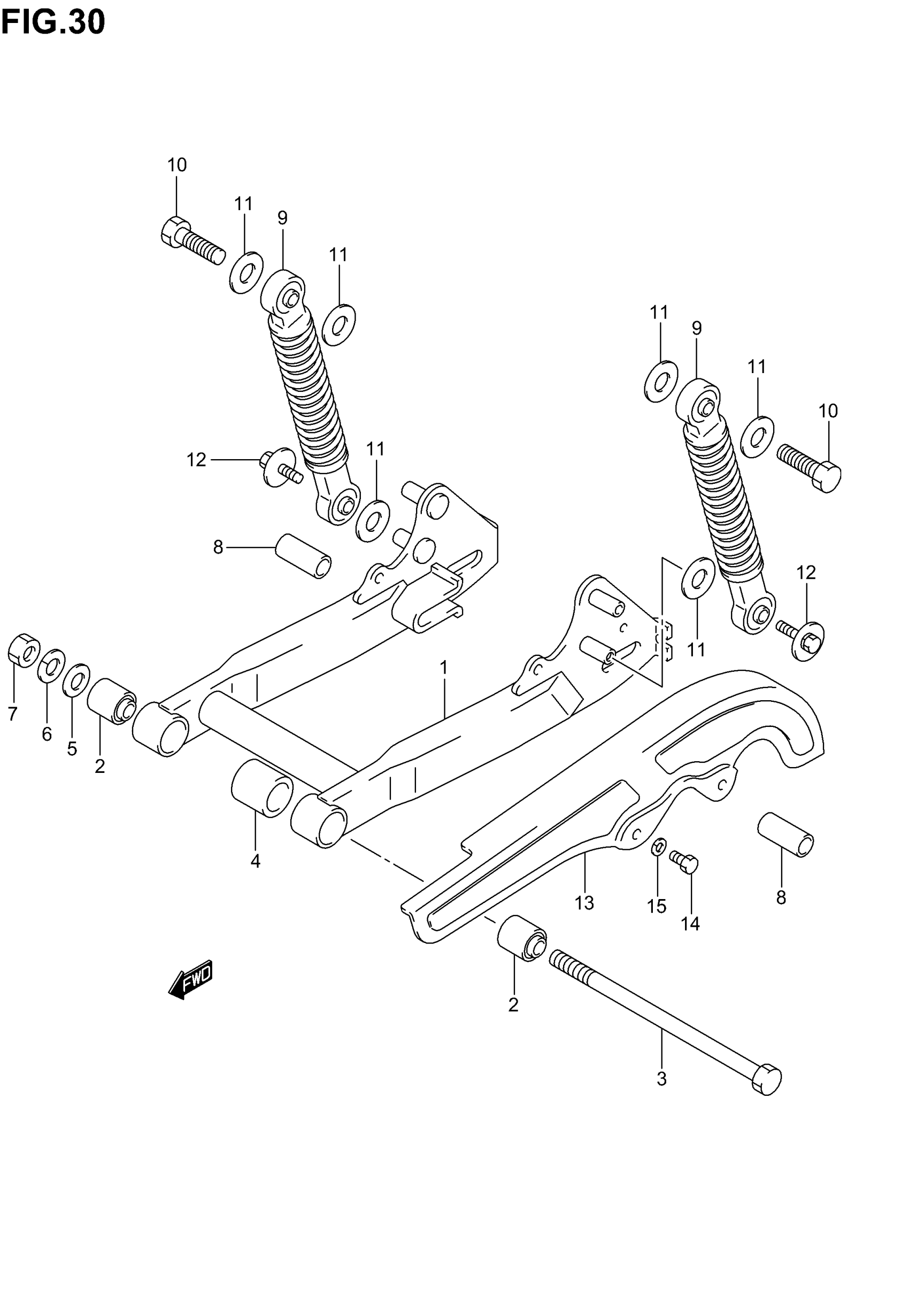

Suzuki JR50 (2006) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (SILVER) | Includes Item(s) 2

61000-04420-13L

Unavailable

2

BUSHING (10X22X28)

09319-10014

$6.97

3

SHAFT, PIVOT

61211-04420

$18.12

4

CUSHION

61273-19G00

Unavailable

5

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

6

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.84

7

NUT This part replaces 08310-00103.

08310-0010A

$1.84

8

CAP, BOSS

61223-04420

$7.00

9

ABSORBER ASSY, REAR SHOCK

62100-04410

Unavailable

10

BOLT, HANDLE HOLDER This part replaces 01500-10353.

01500-1035B

$3.72

11

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

12

BOLT (6X12)

09118-06055

$2.80

13

CASE, CHAIN

61310-04410

$35.40

14

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

15

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84
