2006 Suzuki JR50 Rear Brake Diagram

← All diagrams

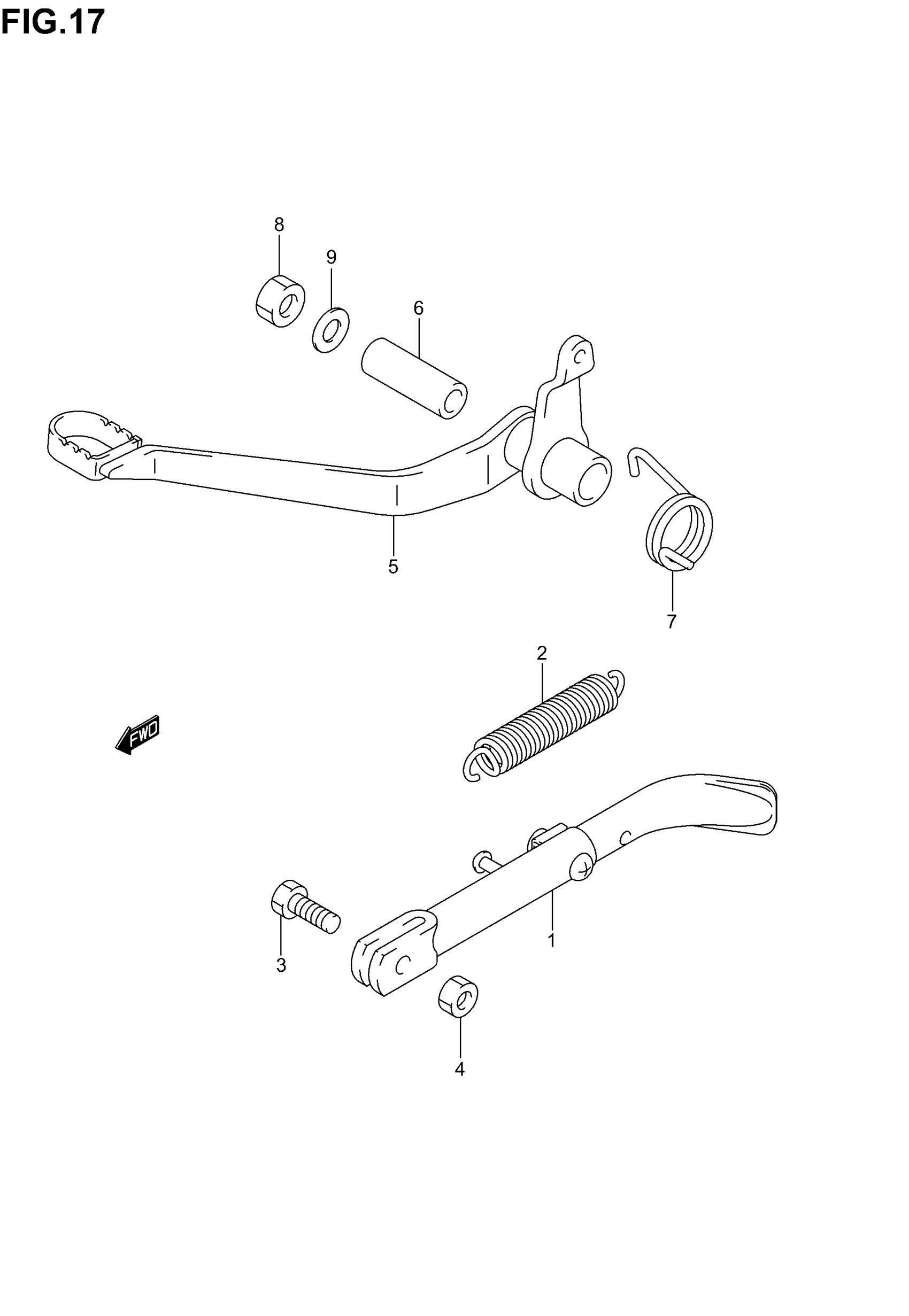

Find the part on the Rear Brake diagram for your 2006 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki JR50 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42300-04420-019

1
Out of stock

2

SPRING

09443-14017

1
Out of stock

3

BOLT (8X22)

09100-08274

1
Out of stock

4

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

5

PEDAL, BRAKE

43110-04410

1
Out of stock

6

SPACER

43181-04411

1
Out of stock

7

SPRING

43182-04410

1
Out of stock

8

NUT

09159-10093

1
Out of stock

9

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

1
Out of stock
