Partiron

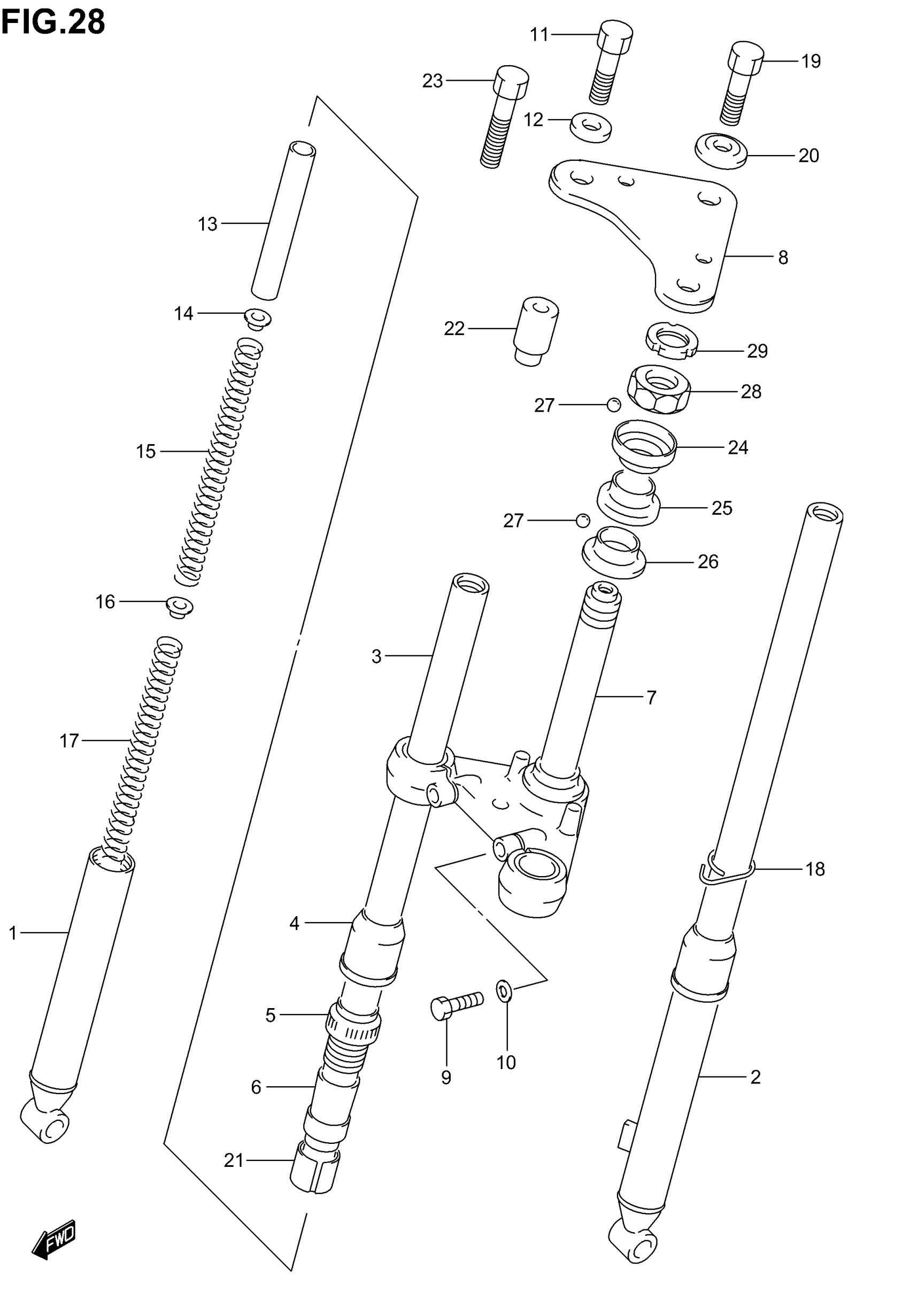

Suzuki JR50 (2006) FRONT FORK Diagram

#

Description
Price

FORK ASSY, FRONT (SILVER) | Includes Item(s) 1 - 21

51100-04430-13L

Unavailable

1

TUBE, OUTER RH (SILVER)

51130-04411-13L

$190.83

2

TUBE, OUTER LH (SILVER)

51140-04411-13L

Unavailable

3

TUBE, INNER

51110-04420

$56.70

4

DUST SEAL

51173-04410

$9.75

5

NUT, OUTER

51150-04410

$20.82

6

STOPPER

51193-04410

$1.87

7

STEM, STEERING

51410-04430

Unavailable

8

HEAD, STEERING STEM

51310-04430

$34.12

9

BOLT

01500-08257

$2.53

10

.LOCK WASHER

08321-01087

$1.83

11

BOLT

51352-04420

Unavailable

12

WASHER (36X10.5X2.3)

51356-07010

$7.52

13

SPACER

51176-04420

Unavailable

14

GUIDE, SPRING NO.1

51172-04420

Unavailable

15

SPRING, NO.1

51171-04420

$9.30

16

GUIDE, SPRING NO.2

51172-04410

$4.62

17

SPRING, NO.2

51184-04420

$9.37

18

CLIP

51572-04410

Unavailable

19

BOLT

51351-04420

$4.62

20

WASHER (33.5X10.5X4.2)

51356-04420

Unavailable

21

BUSH, SLIDE

51121-04430

$10.58

22

SPACER

52331-04420

$13.50

23

BOLT

09100-10302

$5.38

24

RACE, INNER UPPER

51611-19G00

Unavailable

25

RACE, INNER LOWER

51612-19G00

Unavailable

26

RACE,STEERING O This part replaces 51622-29C10.

51622-29C20

$12.75

27

STEEL BALL

06111-05004

$1.30

28

RACE,STEERING O This part replaces 51621-02200.

51621-16A01

$14.73

29

NUT, STEERING STEM

99800-10420

Unavailable
