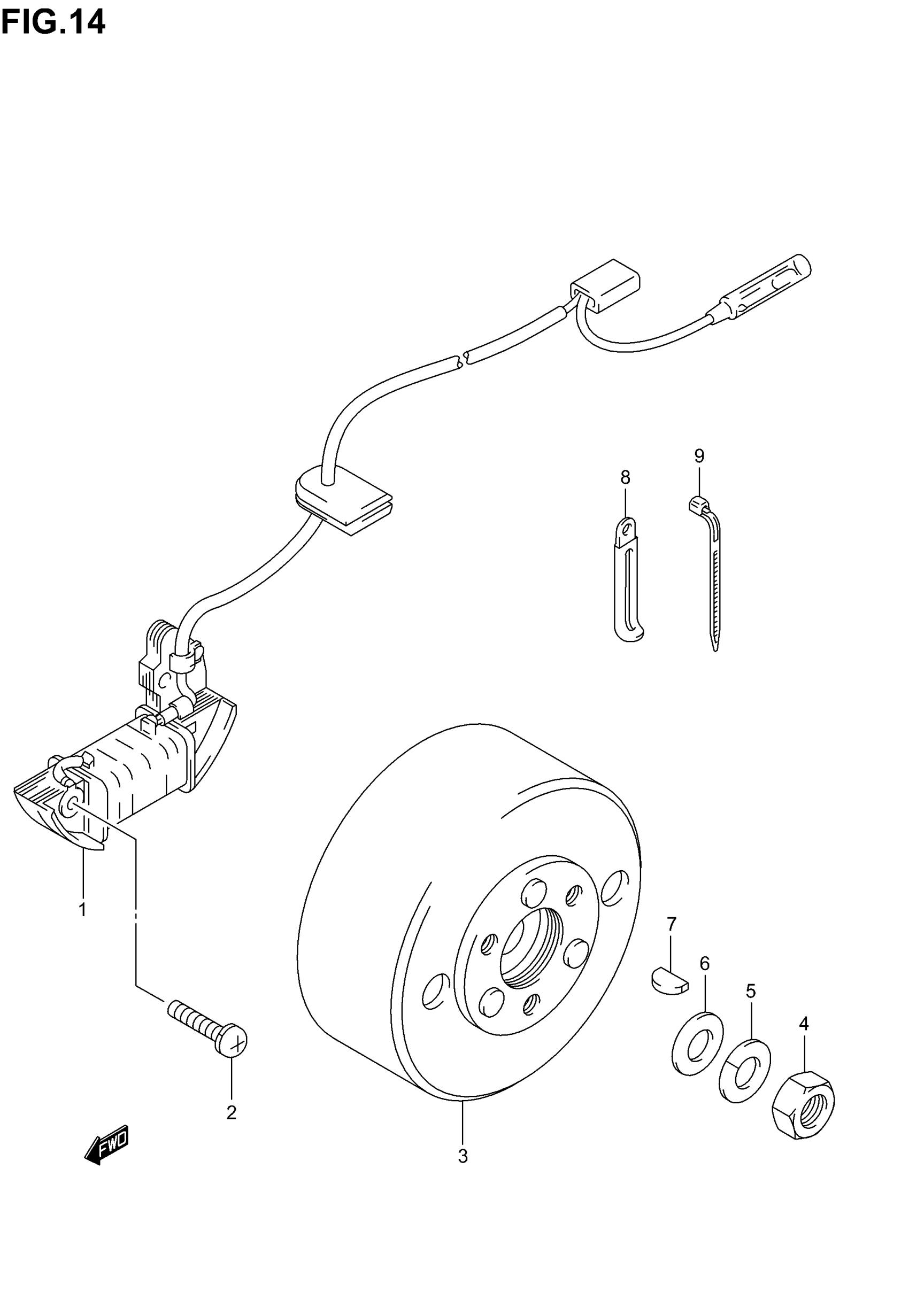

Suzuki JR50 (2006) MAGNETO Diagram

#

Description

Price

1

COIL ASSY, PRIMARY This part replaces 32101-19G00.

32101-04432

$81.20

2

SCREW This part replaces 02112-34253.

02112-3425B

$3.08

3

ROTOR, FLYWHEEL

32102-19G00

Unavailable

4

NUT This part replaces 08310-00103.

08310-0010A

$1.84

5

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.84

6

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

7

KEY

08341-31039

$1.89

8

CLAMP (L:45)

09404-06429

$1.83

9

CLAMP (L:165)

09407-18402

$2.19
