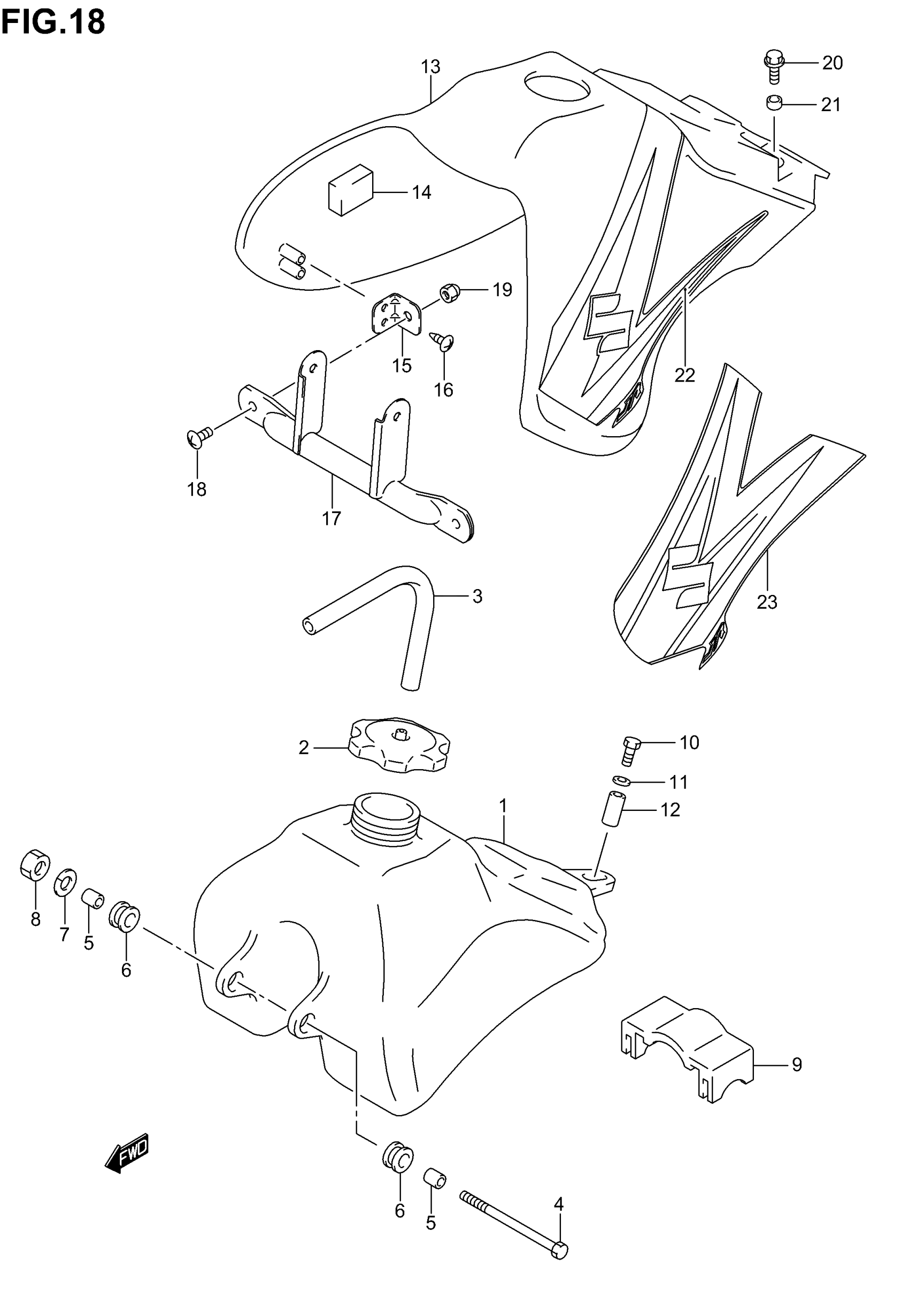

Suzuki JR50 (2006) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-09AB0.

44100-09AA0

Unavailable

2

CAP, FUEL TANK

44200-09AA0

$65.53

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

BOLT This part replaces 01500-06903.

01500-0690B

$3.55

5

SPACER

09180-06289

$2.56

6

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

7

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

8

NUT This part replaces 08310-00063.

08310-0006A

$1.84

9

CUSHION, UPPER

44542-04420

$9.00

10

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

11

WASHER (6.5X18X1.0)

09160-06028

$1.49

12

SPACER

09180-06260

$3.37

13

COVER, FUEL TANK (YELLOW)

44271-09AA0-YU1

$117.07

14

CUSHION

17798-29E30

$7.63

15

BRACKET, COVER NO.1 | E3 ONLY

44171-09AA0

$9.15

16

SCREW This part replaces 03242-05123.

03241-0512A

$1.49

17

BRACKET, TANK COVER

44170-09AA0

$47.48

18

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

19

NUT This part replaces 08313-20063.

08313-2006A

$1.97

20

SCREW, REAR

09136-06015

$2.09

21

SPACER

09180-06309

$2.06

22

TAPE SET | MODEL K5

68120-09A50-YHS

Unavailable

23

TAPE SET | MODEL K6

68120-09A60-CET

Unavailable
