2006 Suzuki JR50 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2006 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

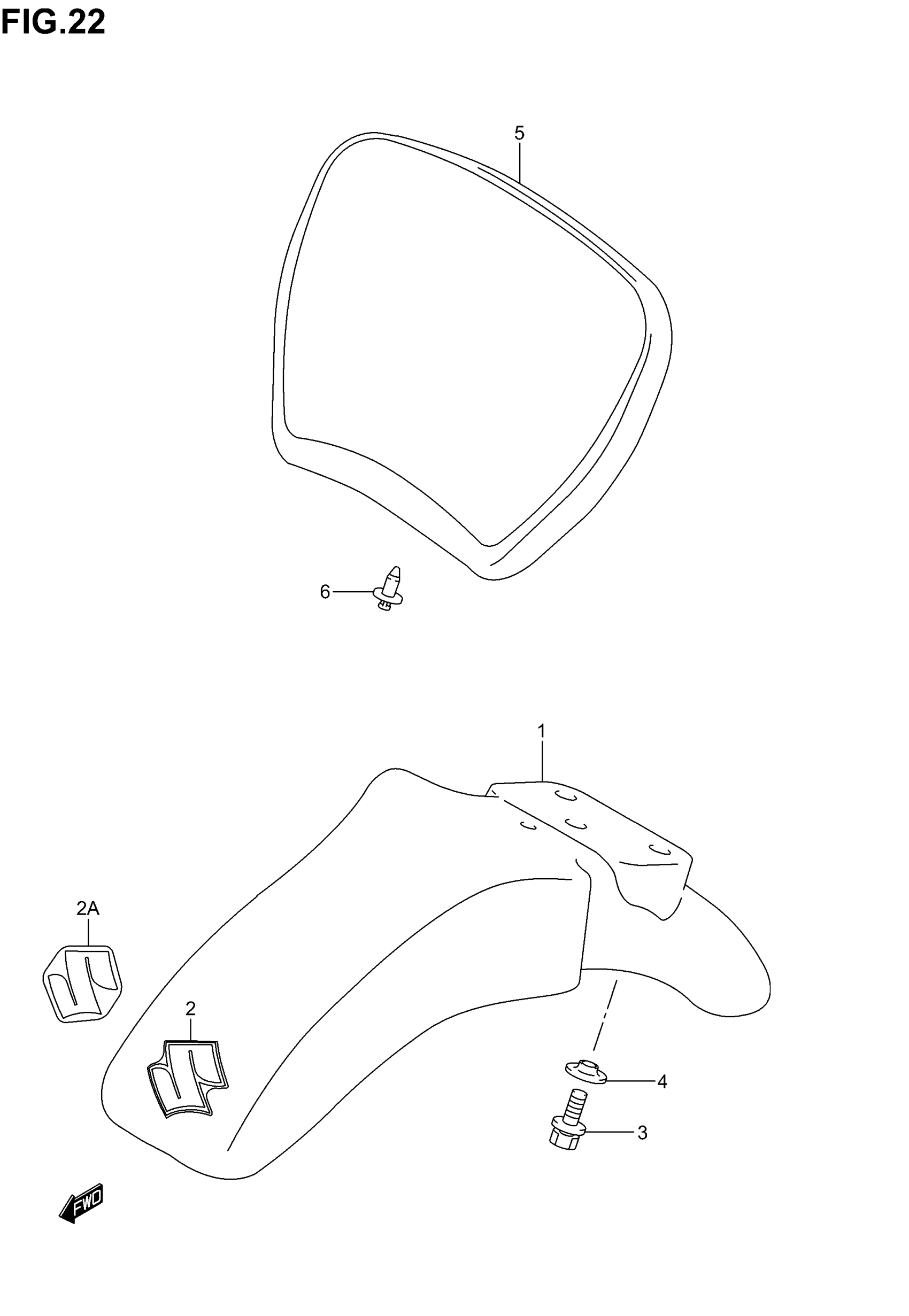

2006 Suzuki JR50 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-09AA0-YU1

1
Out of stock

2

EMBLEM, "S" | MODEL K5

68151-03B00-AZT

1
Out of stock

2A

EMBLEM, "S" | MODEL K6

68151-03B10-CFM

1
Out of stock

3

BOLT

09116-06170

3

$2.68

In stock

4

WASHER

09169-06073

3
Out of stock

5

PLATE, FRONT NUMBER (WHITE)

94911-09AA0-30H

1
Out of stock

6

CLIP (BLACK)

09409-06314-5PK

1
Out of stock
← Frame/footrest Label →
