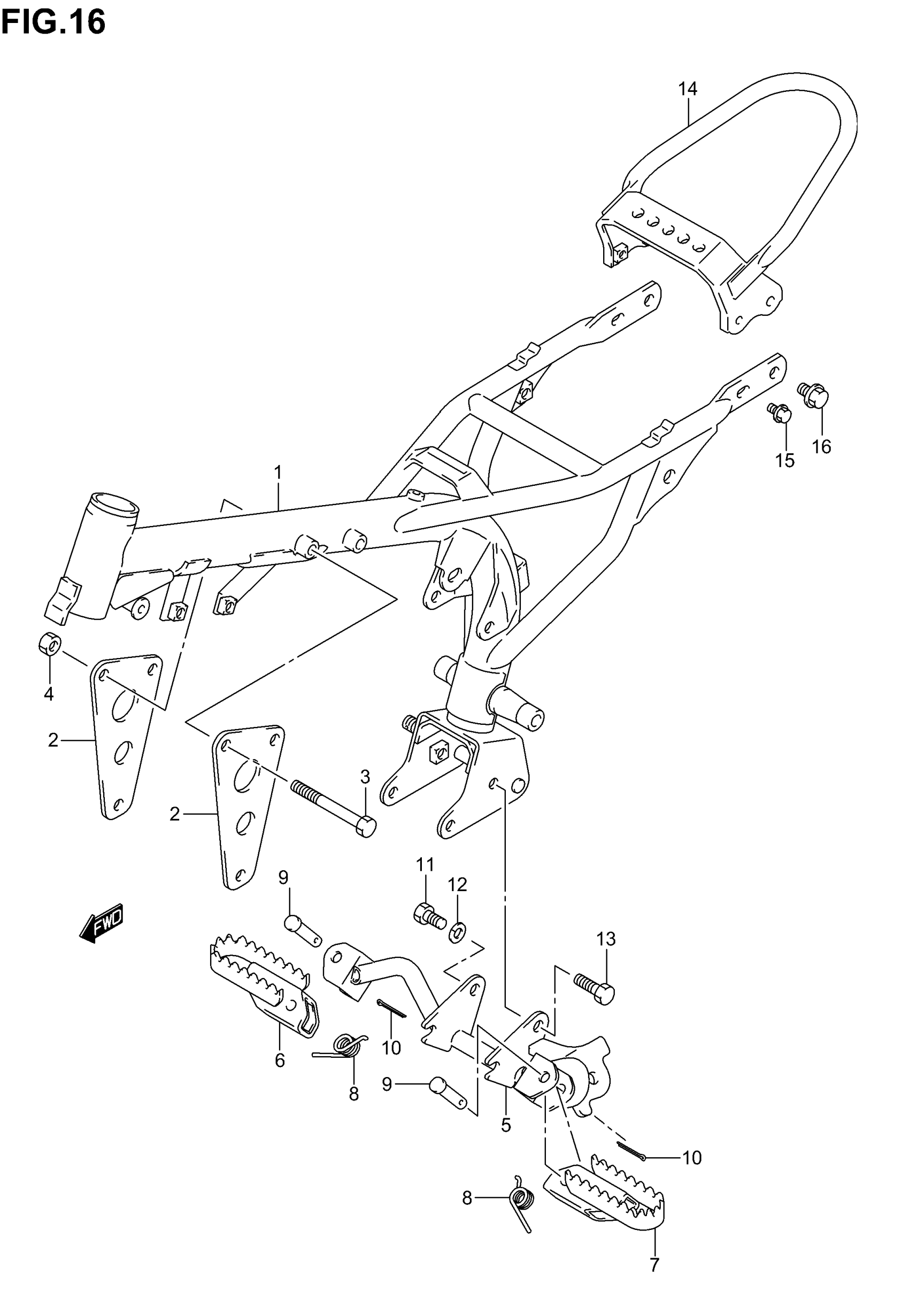

Suzuki JR50 (2006) FRAME/FOOTREST Diagram

#

Description
Price

1

FRAME (BLACK)

41100-09AA0-019

Unavailable

2

PLATE, MOUNTING

41991-04410

Unavailable

3

BOLT

09103-08099

$5.09

4

NUT This part replaces 08319-31088.

08319-3108A

$2.31

5

BAR, FRONT FOOTREST

43510-04411

Unavailable

6

FOOTREST, RH (BLACK)

43550-46000-019

$22.88

7

FOOTREST, LH (BLACK)

43560-46000-019

$23.67

8

SPRING

09448-14012

$2.80

9

PIN

09200-08002

$1.97

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

11

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

12

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.83

13

BOLT, LH

09100-08143

$2.15

14

GRIP, REAR

43980-09AA0

Unavailable

15

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31
