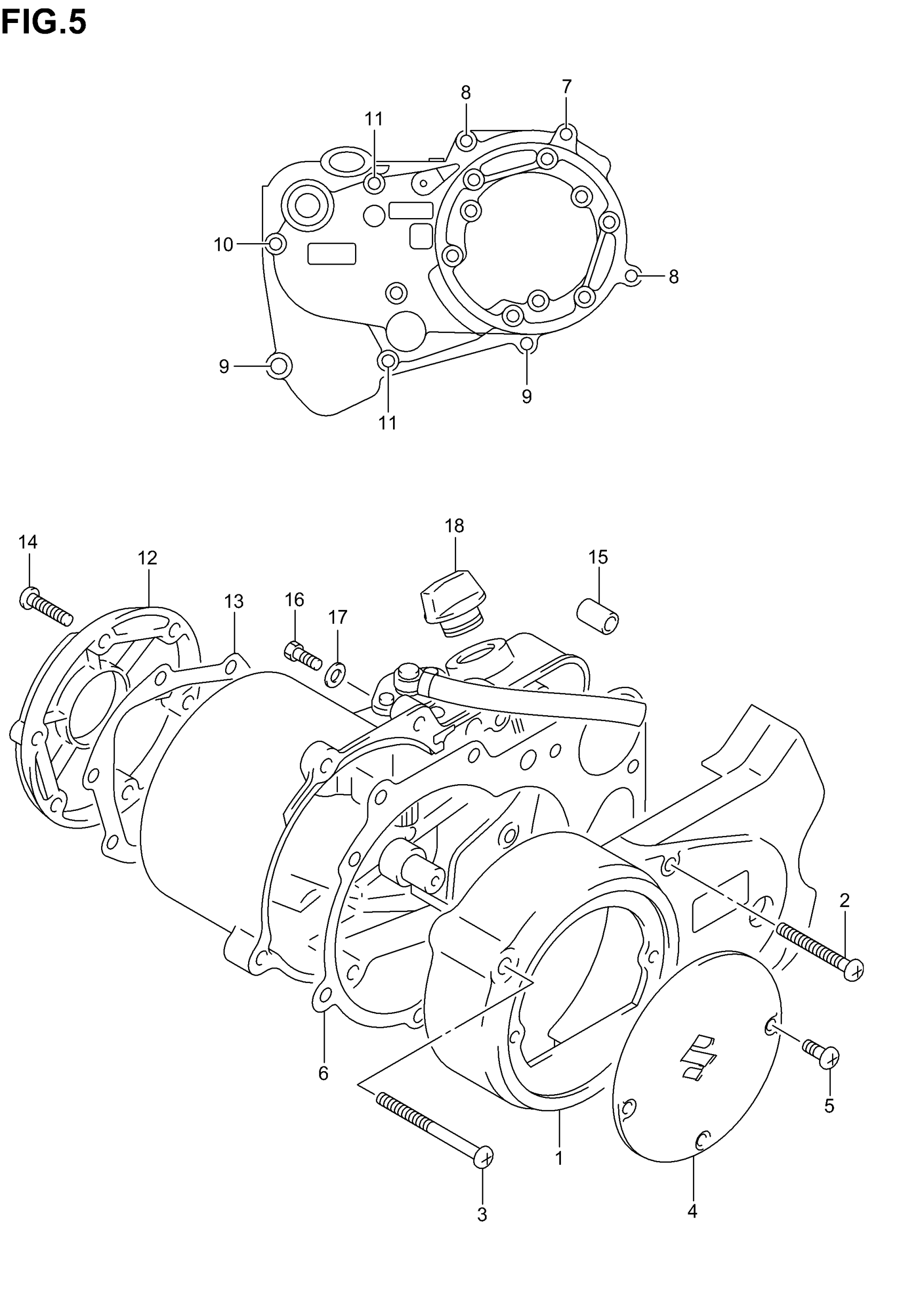

Suzuki JR50 (2006) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, MAGNETO

11351-04400

$115.80

2

SCREW This part replaces 02112-06353.

02112-0635B

$2.19

3

SCREW This part replaces 02112-06453.

02112-0645B

$2.19

4

CAP, MAGNETO INSPECTION

11381-04401

Unavailable

5

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

6

GASKET, CLUTCH COVER

11482-04010

$12.99

7

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

8

SCREW This part replaces 02112-06253.

02112-0625A

$1.80

9

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

10

SCREW This part replaces 02112-06453.

02112-0645B

$2.19

11

SCREW This part replaces 02112-06503.

02112-0650B

$2.42

12

CAP, CLUTCH RELEASE

11387-04401

Unavailable

13

GASKET, RELEASE CAP

11495-04410

$5.92

14

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

15

PIN

04211-09129

$1.65

16

SCREW, OIL LEVEL

09128-06044

$1.49

17

GASKET

09168-06004

$1.49

18

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02
