Description

Price

1

NO DESCRIPTION AVAILABLE | INC. CLUTCH COVER; Includes Item(s) 2 - 18 This part replaces 11300-04853.

11300-04854

Unavailable

2

GEAR, OIL PUMP DRIVE | NT:23

16161-04000

$40.85

3

OIL SEAL (12X18.5X3)

09284-12004

$5.79

4

PLUNGER, SUB

09261-02006

$1.72

5

SPRING

09440-01001

$1.72

6

CAM, OIL PUMP

16251-04000

Unavailable

7

GASKET, OIL PUMP

16731-04000-H17

$3.02

8

UNION BOLT

09360-06003

$3.76

9

GASKET

09168-06004

$1.49

10

SCREW This part replaces 02112-34123.

02112-3412B

$2.30

11

STOPPER

09135-06007

$2.24

12

GASKET

09164-06003

$2.07

13

CHECK VALVE

16710-04010

Unavailable

14

O RING

09280-03003

$1.91

15

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

16

GASKET

09168-05001

$1.98

17

HOSE, OIL (L:512!97)

16810-07520

Unavailable

18

CLIP

09401-08401

$1.54

19

CLIP

09401-08401

$1.54

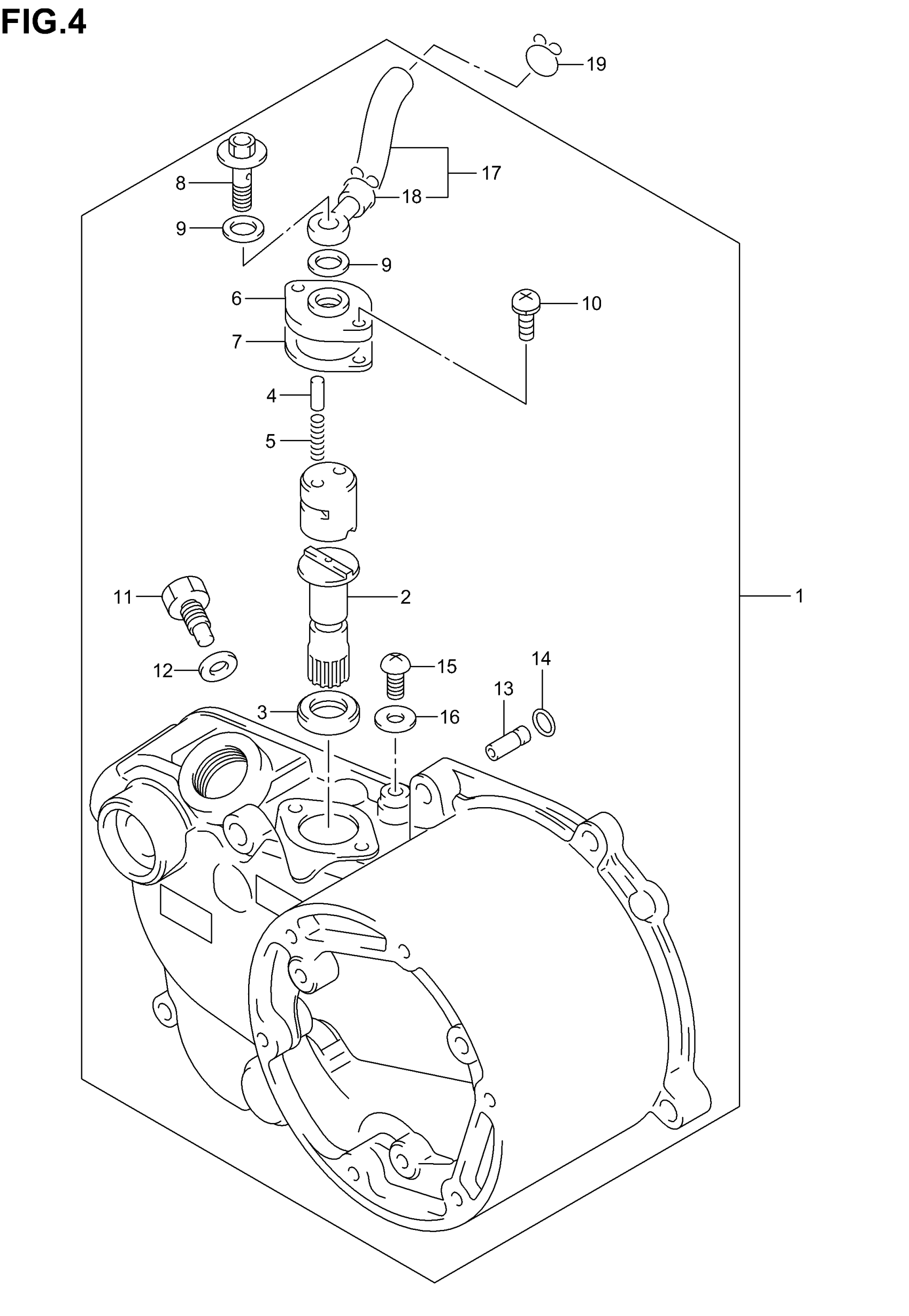

Suzuki JR50 (2006) CLUTCH COVER/OIL PUMP Diagram

NO DESCRIPTION AVAILABLE | INC. CLUTCH COVER; Includes Item(s) 2 - 18 This part replaces 11300-04853.

GEAR, OIL PUMP DRIVE | NT:23

OIL SEAL (12X18.5X3)

PLUNGER, SUB

SPRING

CAM, OIL PUMP

GASKET, OIL PUMP

UNION BOLT

GASKET

SCREW This part replaces 02112-34123.

STOPPER

GASKET

CHECK VALVE

O RING

SCREW This part replaces 02112-05083.

GASKET

HOSE, OIL (L:512!97)

CLIP

CLIP
