2004 Suzuki JR50 Rear Swinging Arm Diagram

← All diagrams

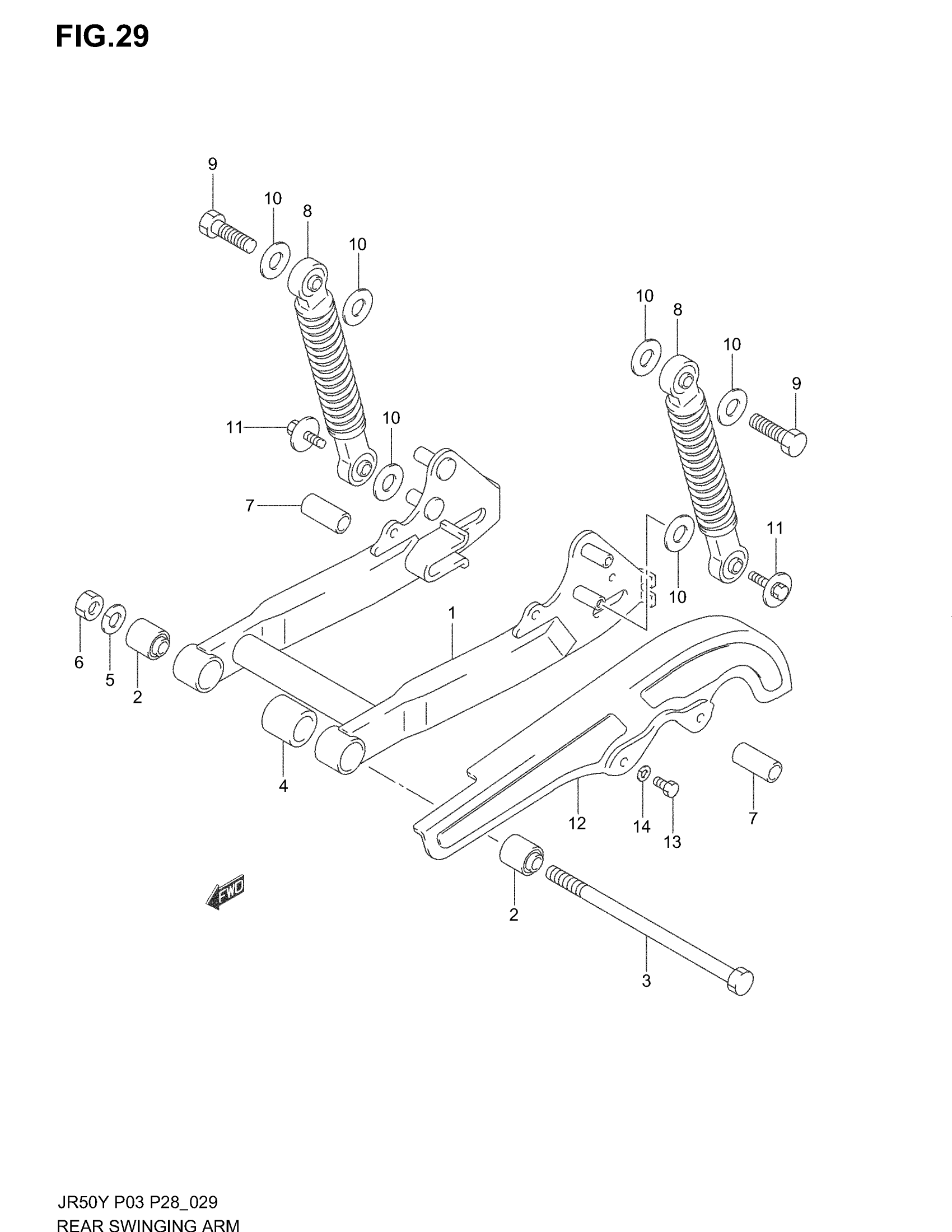

Find the part on the Rear Swinging Arm diagram for your 2004 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki JR50 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR (SILVER) | Includes Item(s) 2

61000-04420-13L

1
Out of stock

2

BUSHING (10X22X28)

09319-10014

2
Out of stock

3

SHAFT, PIVOT | MODEL Y/K1/K2/K3

61211-04410

1
Out of stock

3

SHAFT, PIVOT | MODEL K4

61211-04420

1
Out of stock

4

CUSHION R SWING This part replaces 09320-20002.

09320-20012

1
Out of stock

5

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

1
Out of stock

6

NUT This part replaces 08310-00103.

08310-0010A

1
Out of stock

7

CAP, BOSS

61223-04420

2
Out of stock

8

ABSORBER ASSY, REAR SHOCK

62100-04410

2
Out of stock

9

BOLT, HANDLE HOLDER This part replaces 01500-10353.

01500-1035B

2
Out of stock

10

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

6
Out of stock

11

BOLT (6X12)

09118-06055

2
Out of stock

12

CASE, CHAIN

61310-04410

1
Out of stock

13

BOLT This part replaces 01500-06123.

01500-0612A

2
Out of stock

14

LOCK WASHER This part replaces 08321-01063.

08321-0106A

2
Out of stock
