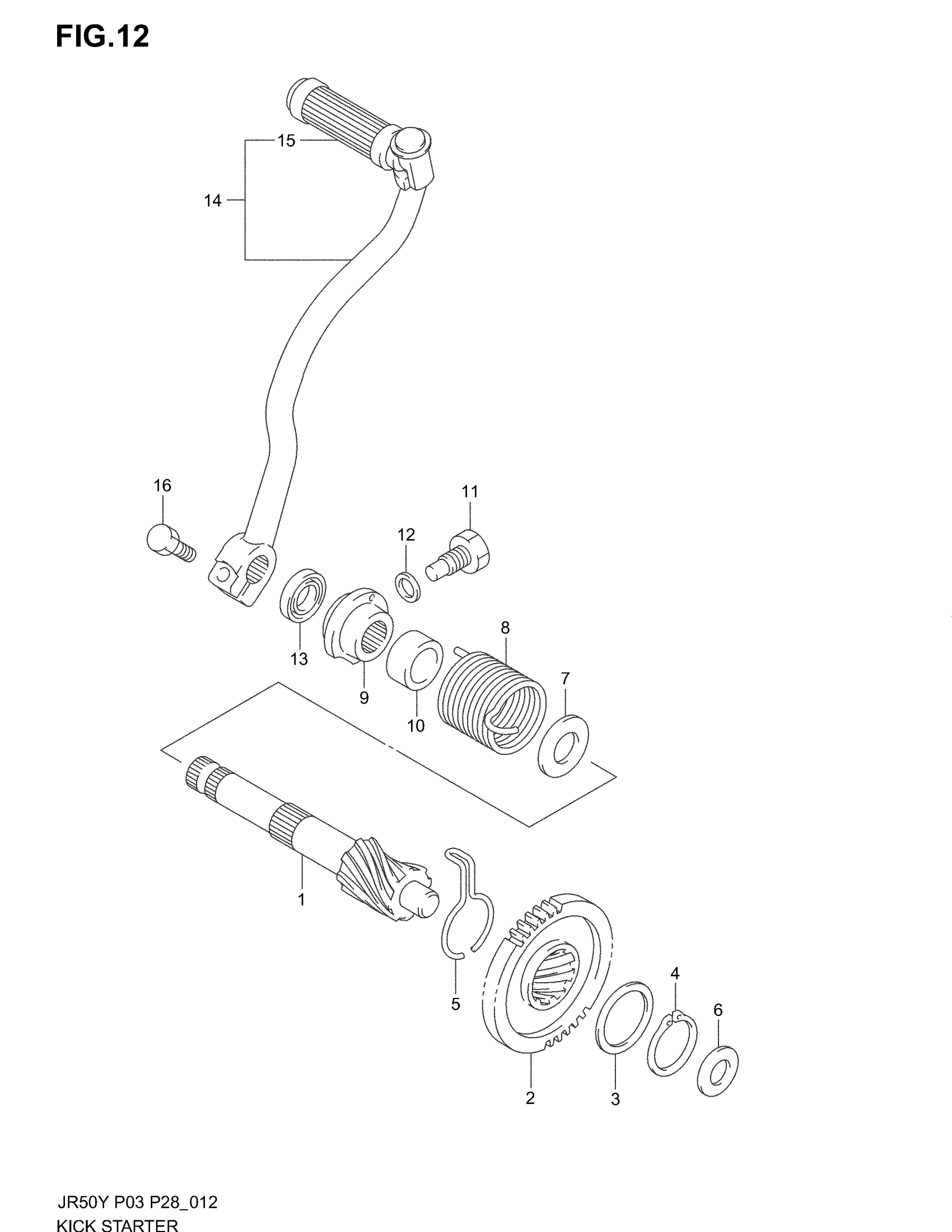

Suzuki JR50 (2004) KICK STARTER Diagram

SHAFT, KICK STARTER

26211-04000

$56.90

GEAR, DRIVE (NT:43)

26241-04002

$71.38

WASHER

08211-25321

$3.27

CIRCLIP

09380-25009

$2.77

RETAINER SPRING

09384-30001

$5.08

WASHER

08211-12261

$2.50

WASHER (16X30.5X1)

09160-16003

$2.92

SPRING

09448-41001

$6.32

STOPPER, KICK STARTER

26232-04401

Unavailable

GUIDE, KICK RETURN SPRING

26221-04400

Unavailable

BOLT

09135-10003

$3.03

GASKET (9.9X14X0.3)

09168-10002

$2.13

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

LEVER ASSY,KICK | Includes Item(s) 15 This part replaces 26300-04410.

26300-04411

$103.77

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78
