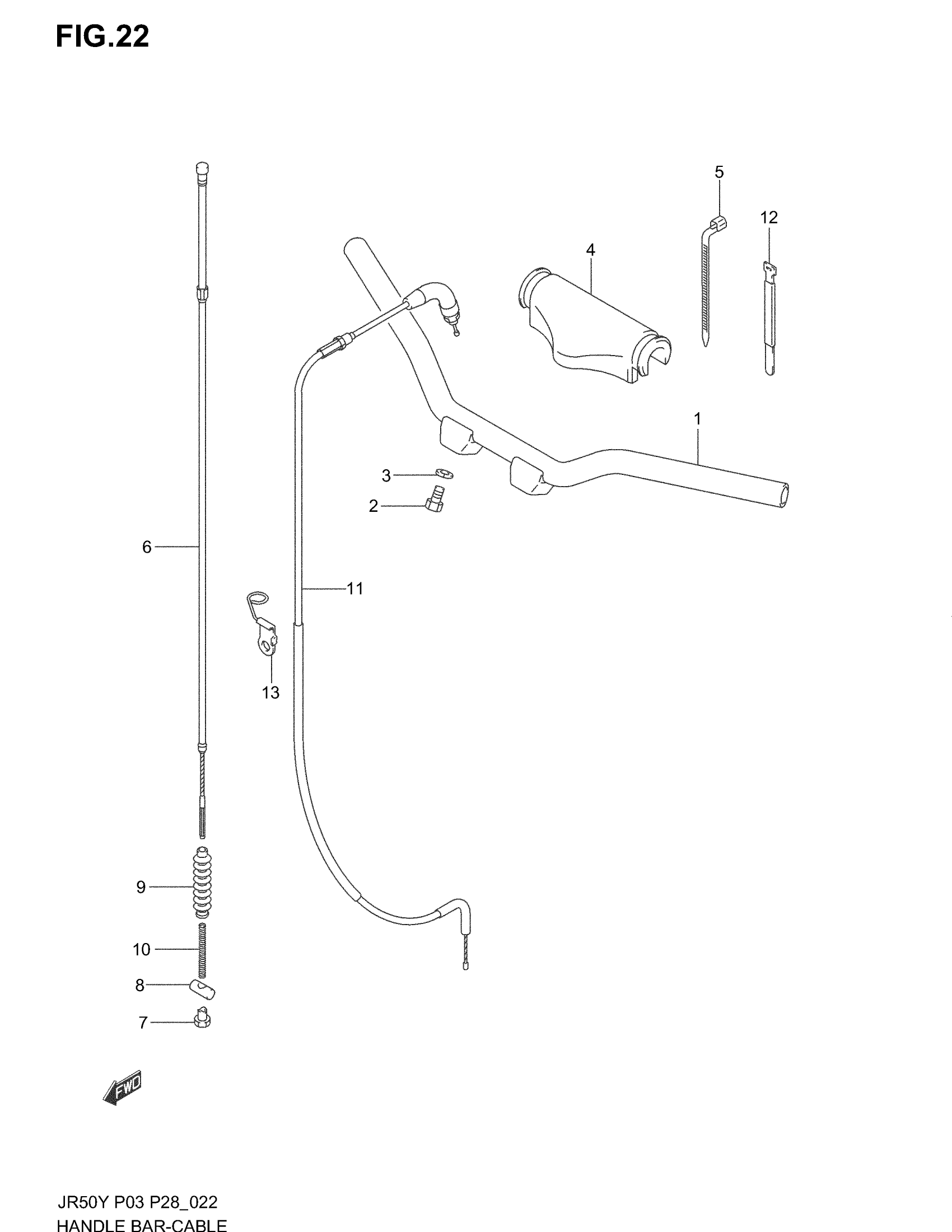

Suzuki JR50 (2004) HANDLEBAR/CABLE Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-04411-291

Unavailable

2

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

3

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

4

COVER, HANDLE

56171-09AA0

Unavailable

5

CLAMP

09407-14403

$2.26

6

CABLE ASSY, BRAKE

58110-04430

$26.53

7

NUT

09150-05101

$3.04

8

PIN

09209-10001

$1.49

9

BOOT

09287-07001

$2.00

10

SPRING

09440-06003

$2.44

11

CABLE ASSY, THROTTLE | MODEL Y/K1 This part replaces 58300-04430.

58300-04432

$22.44

11

CABLE ASSY, THROTTLE | MODEL K2/K3 This part replaces 58300-04431.

58300-04432

$22.44

11

CABLE ASSY, THROTTLE | MODEL K4

58300-04432

$22.44

12

CLAMP This part replaces 09407-14301.

09407-18302

$2.28

13

GUIDE, BRAKE

58620-04430

Unavailable
