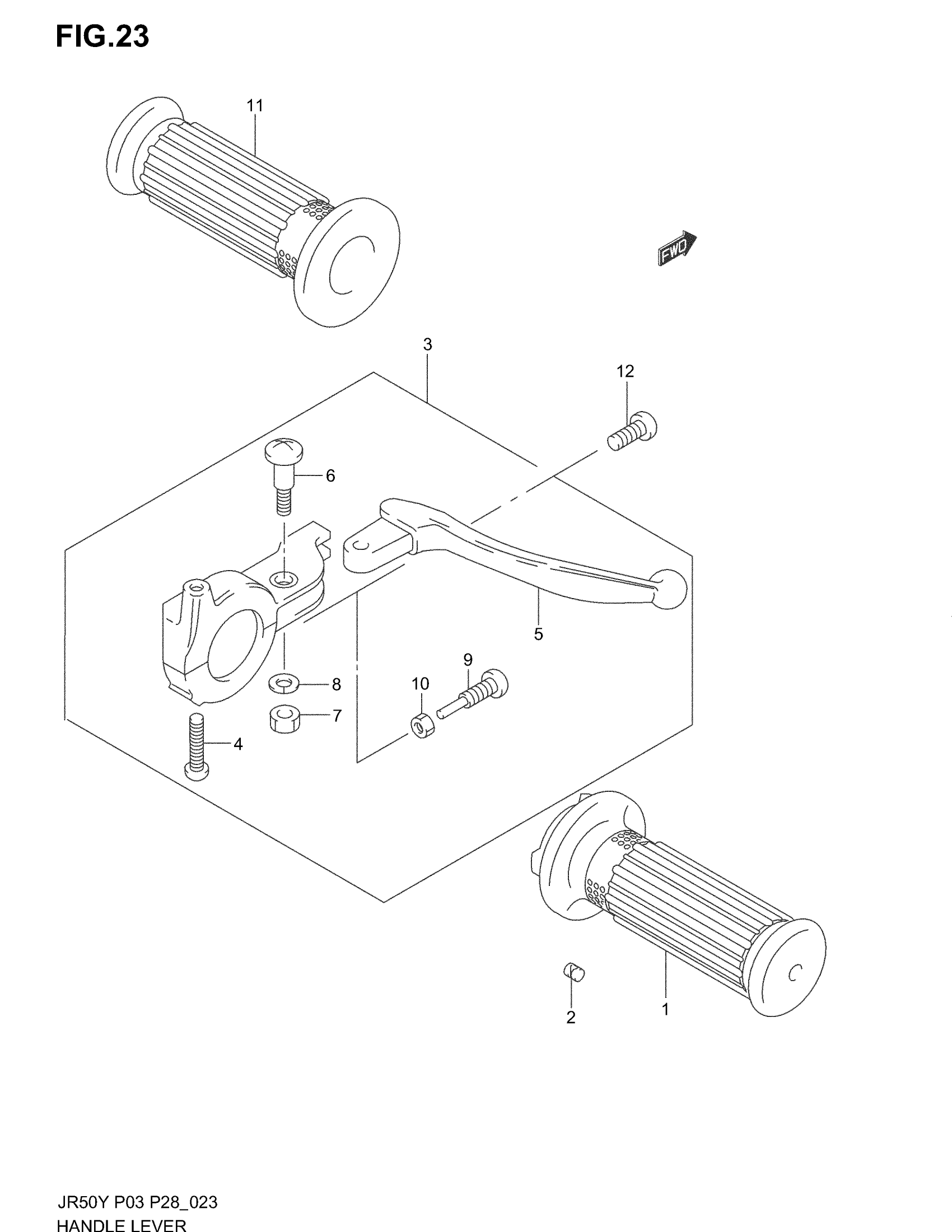

Suzuki JR50 (2004) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE | MODEL Y This part replaces 57110-04410.

57110-04411

$9.72

1

GRIP, THROTTLE | MODEL K1/K2/K3/K4

57110-04411

$9.72

2

PIECE, END

58631-07010

$3.56

3

BRAKE LEVER ASSY | MODEL Y

57300-04420

$19.72

3

BRAKE LEVER ASSY | MODEL K1/K2/K3/K4; Includes Item(s) 4 - 10

57300-09AA0

$21.19

4

SCREW

09125-05065

$4.60

5

LEVER, BRAKE (BLACK)

57421-04420

$14.36

6

BOLT | MODEL Y/K1 This part replaces 57431-04420.

09139-05068

$2.52

6

BOLT | MODEL K2/K3/K4

09139-05068

$2.52

7

NUT This part replaces 08310-00053.

08310-0005A

$1.84

8

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.84

9

SCREW, GRIP ADJUSTER | MODEL K1/K2/K3/K4

57118-09AA0

$3.65

10

NUT | MODEL K1/K2/K3/K4 This part replaces 08310-00053.

08310-0005A

$1.84

11

GRIP, LH

57211-04410

$4.66

12

SCREW | MODEL K1/K2/K3/K4 This part replaces 09125-05121.

02112-0506B

$1.84
