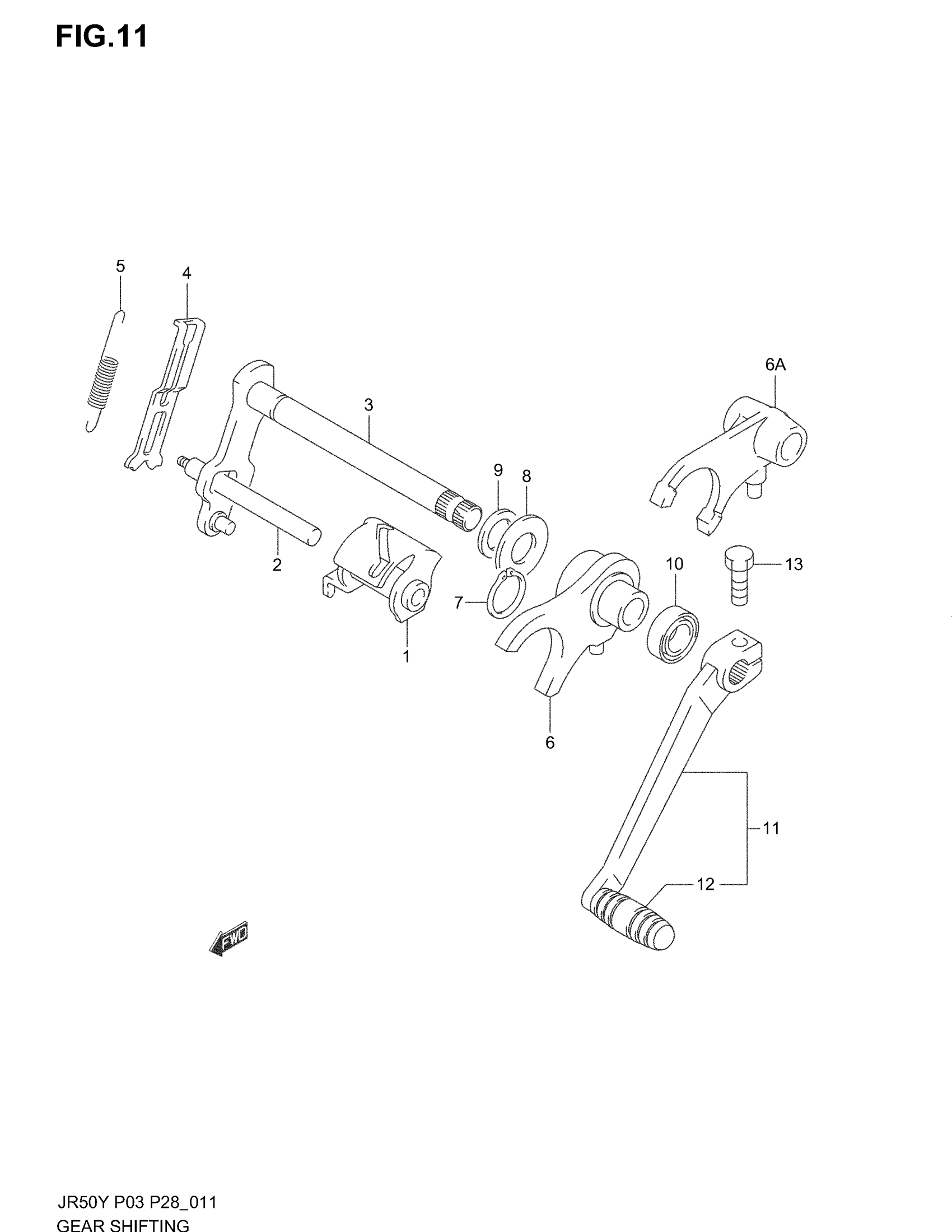

Suzuki JR50 (2004) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING

25310-04001

$63.30

2

SHAFT, CAM

25411-04000

Unavailable

3

SHAFT, GEAR SHIFTING

25510-04401

$176.35

4

ARM, CAM STOPPER

25352-04000

Unavailable

5

SPRING

09443-08008

$2.50

6

FORK, GEAR SHIFTING | MODEL Y This part replaces 25210-04001.

25211-04010

$64.30

6A

FORK, GEAR SHIFTING | MODEL K1/K2/K3/K4

25211-04010

$64.30

7

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

8

WASHER

08211-12261

$2.50

9

WASHER

08211-12205

Unavailable

10

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

11

LEVER ASSY. GEAR SHIFTING | Includes Item(s) 12 This part replaces 25600-29300.

25600-29310

$42.95

12

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

13

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78
