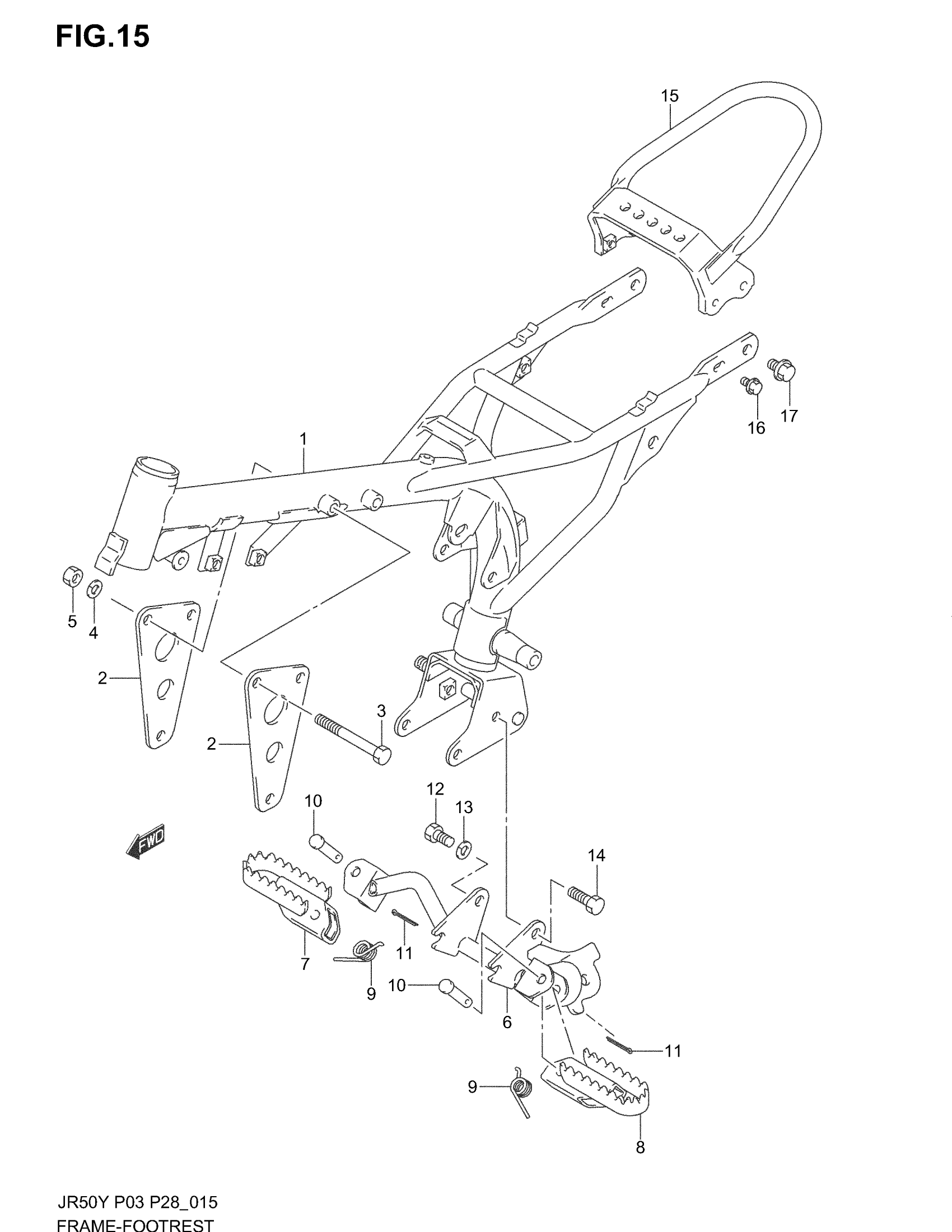

Suzuki JR50 (2004) FRAME/FOOTREST Diagram

#

Description
Price

1

FRAME (BLACK)

41100-09AA0-019

Unavailable

2

PLATE, MOUNTING

41991-04410

Unavailable

3

BOLT This part replaces 01500-08703.

01500-0870B

$3.49

4

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

5

NUT This part replaces 08310-00083.

08310-0008A

$1.84

6

BAR, FRONT FOOTREST

43510-04411

Unavailable

7

FOOTREST, RH (BLACK)

43550-46000-019

$20.27

8

FOOTREST, LH (BLACK)

43560-46000-019

$20.97

9

SPRING

09448-14012

$3.04

10

PIN

09200-08002

$2.05

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

13

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

14

BOLT, LH

09100-08143

$2.29

15

GRIP, REAR

43980-09AA0

Unavailable

16

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

17

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32
