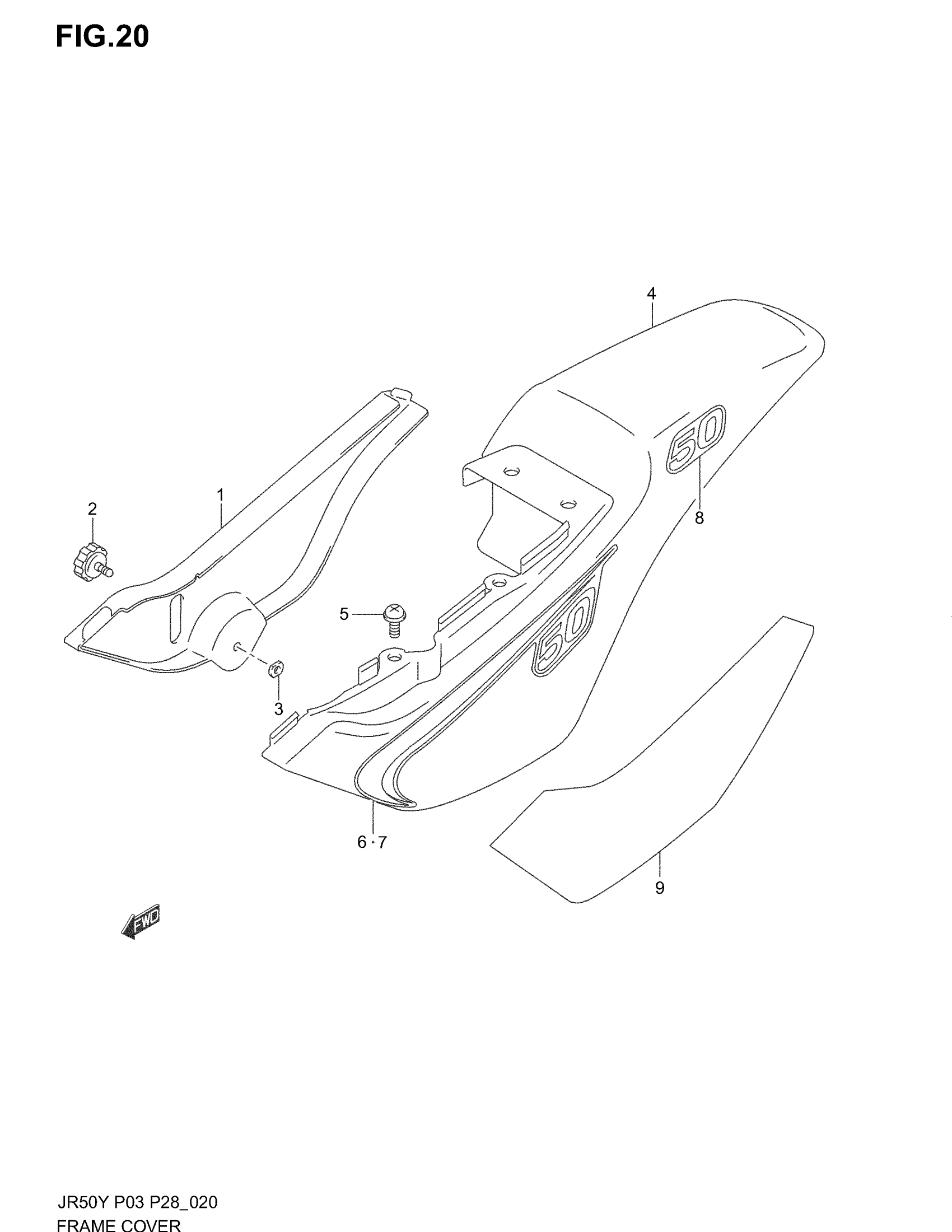

Suzuki JR50 (2004) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL Y

47111-09AA0-30H

$57.45

1

COVER, FRAME RH (YELLOW) | MODEL K1 This part replaces 47111-09AA0-YR1.

47111-09AA0-YU1

$58.63

1

COVER, FRAME RH (YELLOW) | MODEL K2

47111-09AA0-YU1

$58.63

1

COVER, FRAME RH (WHITE) | MODEL K3/K4

47111-09AA0-30H

$57.45

2

KNOB

47130-33101

$9.32

3

STOPPER, KNOB

09152-06002

$1.67

4

COVER, FRAME LH (WHITE) | MODEL Y P3

47211-09AA0-30H

Unavailable

4

COVER, FRAME LH (YELLOW) | MODEL K1 P3 This part replaces 47211-09AA0-YR1.

47211-09AA0-YU1

$107.50

4

COVER, FRAME LH (YELLOW) | MODEL K2/K3/K4 P3

47211-09AA0-YU1

$107.50

4

COVER, FRAME LH (WHITE) | MODEL Y P28

47211-09AB0-30H

Unavailable

4

COVER, FRAME LH (YELLOW) | MODEL K1 P28

47211-09AB0-YR1

Unavailable

4

COVER, FRAME LH (YELLOW) | MODEL K2/K3/K4 P28

47211-09AB0-YU1

Unavailable

5

SCREW

09136-06015

$2.09

6

EMBLEM, RH | MODEL Y

68135-09AA0-J7B

Unavailable

7

EMBLEM, LH | MODEL Y

68145-09AA0-J7B

Unavailable

8

EMBLEM | MODEL K2/K3/K4

68131-09AA0-GY8

Unavailable

9

TAPE, LH (WHITE) | MODEL K3/K4

68145-09AB0-30H

$85.15
