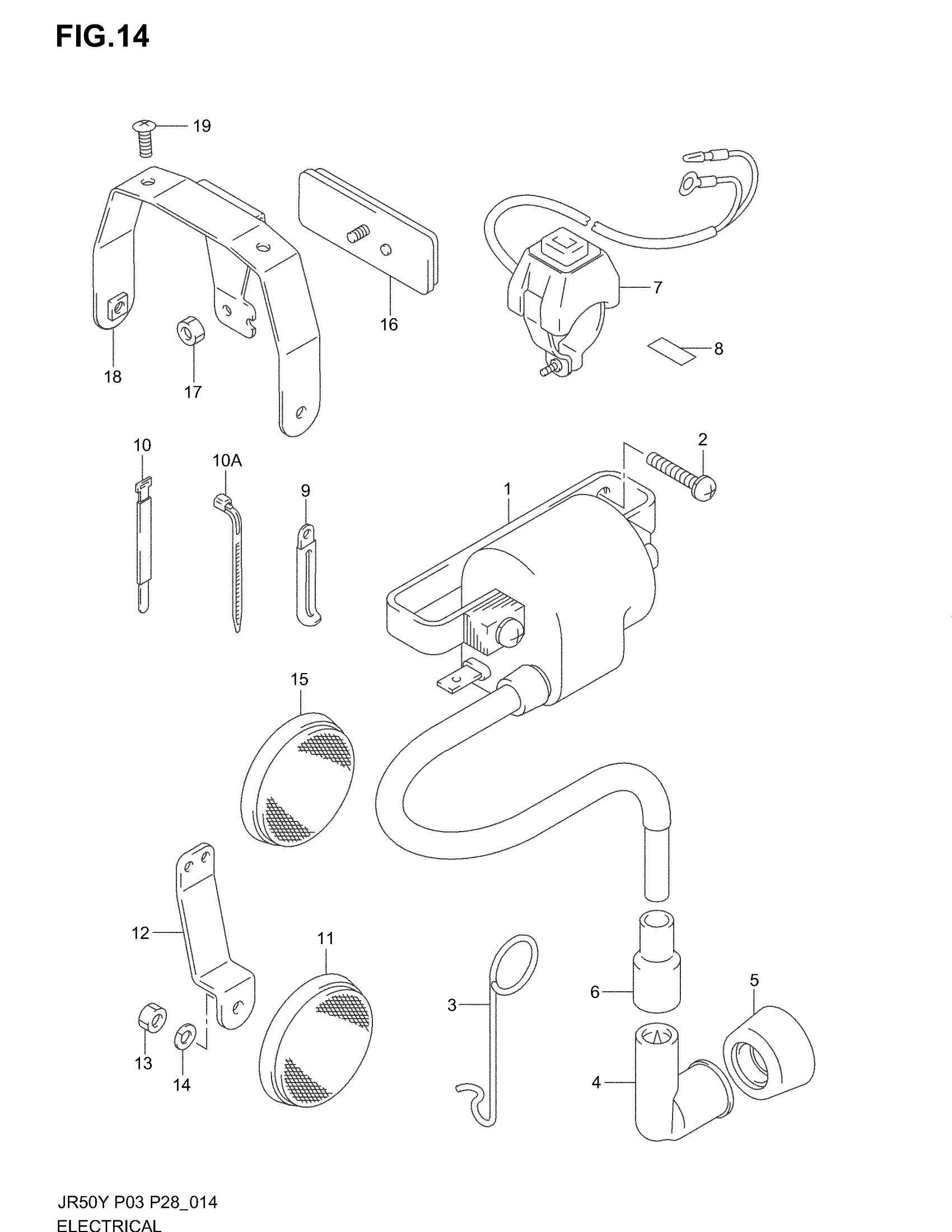

Suzuki JR50 (2004) ELECTRICAL Diagram

#

Description
Price

1

UNIT & COIL ASSY, IGNITION

33410-35340

$193.67

2

SCREW

02112-06207

$1.78

3

GUIDE, HIGH TENSION CORD

58626-04410

$3.17

4

CAP, SPARK PLUG

33510-35411

$28.27

5

SEAL, SPARK PLUG

33541-69010

$4.37

6

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

7

SWITCH ASSY, ENGINE STOP

37820-14X50

$48.54

8

LABEL

37238-46401

Unavailable

8

LABEL | P28

37238-46411

Unavailable

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

10A

CLAMP (L:165)

09407-18402

$2.19

11

REFLEX REFLECTOR ASSY, FR SIDE | MODEL Y/K1/K2/K3 P28

35950-45010

$17.09

11

REFLEX REFLECTOR ASSY, FR SIDE | MODEL K4 P28

35950-14A00

$16.94

12

BRACKET, FR SIDE RR | P28

35975-09AA0

Unavailable

13

NUT | P28 This part replaces 08310-00053.

08310-0005A

$1.84

14

LOCK WASHER | P28 This part replaces 08321-01053.

08321-0105A

$1.84

15

REFLEX REFLECTOR ASSY, RR SIDE | MODEL Y/K1/K2/K3 P28

35970-30910

$44.56

15

REFLEX REFLECTOR ASSY, RR SIDE | MODEL K4 P28

35970-14A10

$18.80

16

REFLECTOR ASSY, RR SIDE | P28 This part replaces 35970-07F00.

35970-07F01

$20.88

17

NUT | P28 This part replaces 08310-00053.

08310-0005A

$1.84

18

BRACKET, SIDE & REAR | P28

35976-04450

Unavailable

19

SCREW, REAR RR BRACKET | P28

02142-06127

$1.49
