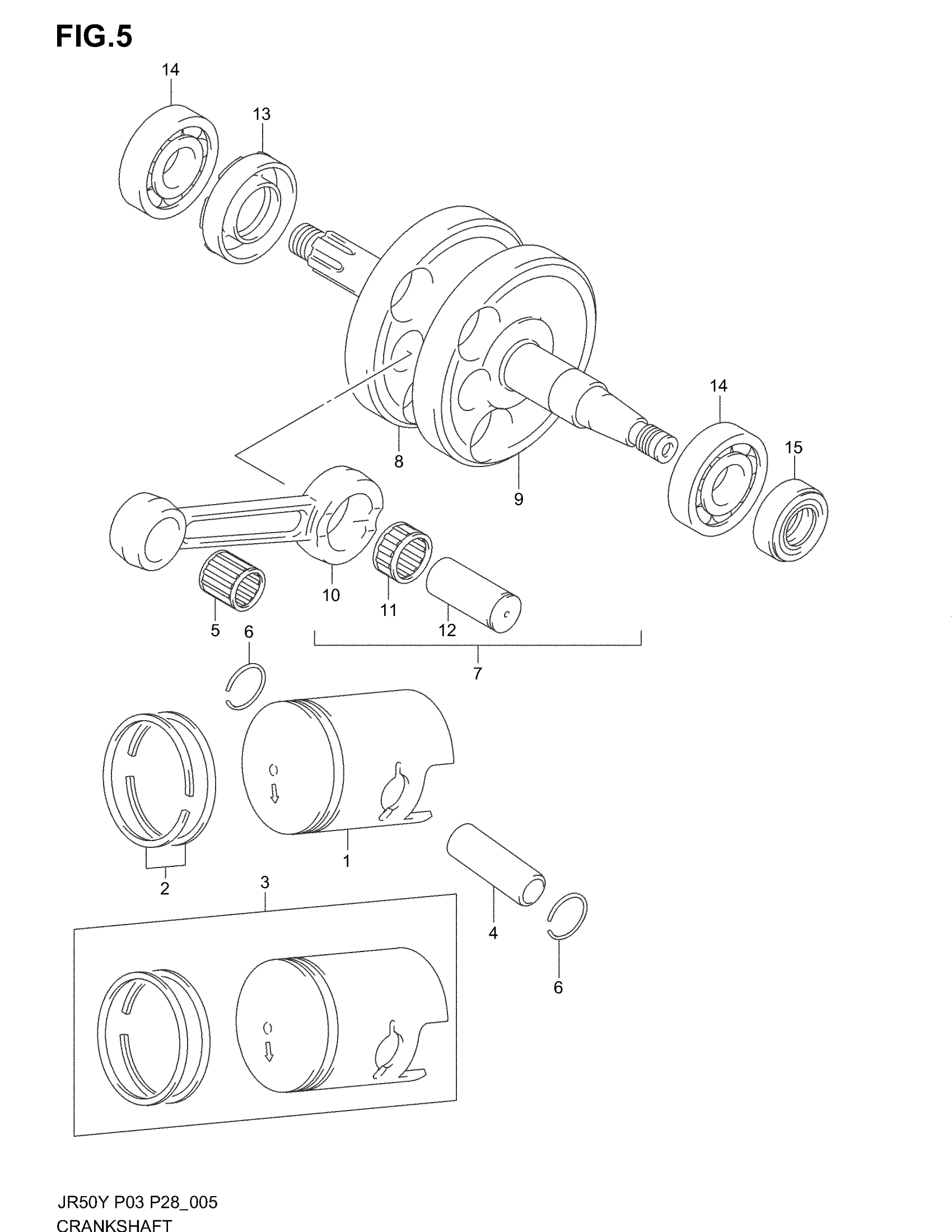

Suzuki JR50 (2004) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD) | MODEL Y/K1 This part replaces 12110-35613-0F0.

12110-35614-0F0

$59.39

1

PISTON (STD) | MODEL K2/K3/K4

12110-35614-0F0

$59.39

2

RING SET, PISTON (STD)

12140-16B10

$22.39

2

RING SET, PISTON (OS:0.5) | OPT

12140-46110-050

$28.25

2

RING SET, PISTON (OS:1.0) | OPT

12140-46110-100

$28.38

3

PISTON SET (OS:0.5) | OPT MODEL Y/K1 This part replaces 12103-43820-050.

12100-35611-050

$77.92

3

PISTON SET (OS:0.5) | OPT MODEL K2/K3/K4

12100-35611-050

$77.92

3

PISTON SET (OS:1.0) | OPT MODEL Y/K1 This part replaces 12103-43820-100.

12100-35611-100

$93.43

3

PISTON SET (OS:1.0) | OPT MODEL K2/K3/K4

12100-35611-100

$93.43

4

PIN, PISTON

12151-04700

$7.22

5

BEARING, PISTON PIN

09263-12023

$10.19

6

SNAP RING

09381-12001

$1.49

7

CRANKSHAFT ASSY | Includes Item(s) 8 - 12

12200-04401

Unavailable

8

CRANKSHAFT, RH

12221-04400

Unavailable

9

CRANKSHAFT, LH

12261-04000

Unavailable

10

ROD, CONNECTING

12161-04001

$75.58

11

BEARING

09263-15014

$14.07

12

PIN, CRANK

12211-04000

$16.78

13

SEAL,OIL(22X40X This part replaces 09283-22001.

09283-22037

$3.88

14

BEARING (17X40X12)

09262-17023

$16.75

15

OIL SEAL CRANKS This part replaces 09283-17010.

09283-17012

$7.31
