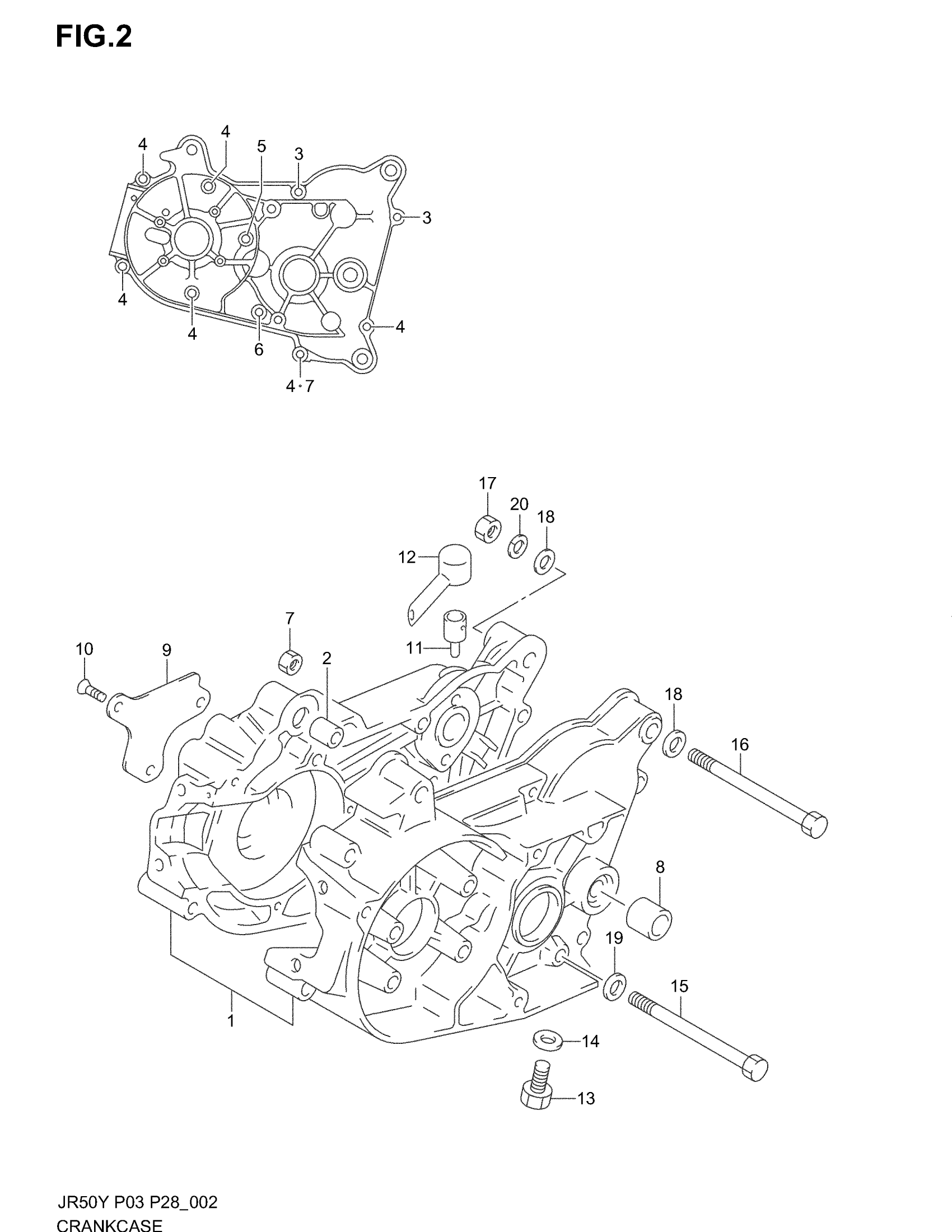

Suzuki JR50 (2004) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 8 This part replaces 11300-04843.

11300-04844

Unavailable

2

PIN

04211-11129

$1.76

3

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

4

SCREW This part replaces 02112-06353.

02112-0635B

$2.19

5

SCREW This part replaces 02112-06403.

02112-0640A

$1.96

6

SCREW This part replaces 02112-06553.

02112-0655B

$2.53

7

NUT This part replaces 08310-00063.

08310-0006A

$1.84

8

BUSH, COUNTER SHAFT

09304-10005

$5.65

9

PLATE, OIL RESERVOIR

12521-04000

Unavailable

10

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

11

PLUG, BREATHER

24821-09001

$9.33

12

BREATHER PLUG C This part replaces 24822-20000.

24822-20001

$3.70

13

PLUG, OIL DRAIN | MODEL Y/K1

09247-10001

$2.20

13

PLUG, OIL DRAIN | MODEL K2/K3/K4

09247-10008

$1.97

14

GASKET

09168-10002

$2.13

15

BOLT | MODEL Y/K1/K2/K3 This part replaces 01500-08903.

01500-0890B

$3.88

15

BOLT (8X80) | MODEL K4 This part replaces 09103-08397.

09103-08016

$29.80

16

BOLT | MODEL Y/K1/K2/K3 This part replaces 01500-08703.

01500-0870B

$3.49

16

BOLT | MODEL K4

09103-08099

$5.57

17

NUT | MODEL Y/K1/K2/K3 This part replaces 08310-00083.

08310-0008A

$1.84

17

NUT | MODEL K4 This part replaces 08319-31088.

08319-3108A

$2.32

18

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

19

WASHER

09160-08128

$2.80

20

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84
