Description

Price

NO DESCRIPTION AVAILABLE | INC. CLUTCH COVER; Includes Item(s) 1 - 17 This part replaces 11300-04853.

11300-04854

Unavailable

1

GEAR, OIL PUMP DRIVE | NT:23

16161-04000

$46.12

2

OIL SEAL (12X18.5X3)

09284-12004

$5.30

3

PLUNGER, SUB

09261-02006

$1.87

4

SPRING

09440-01001

$1.87

5

CAM, OIL PUMP

16251-04000

Unavailable

6

GASKET, OIL PUMP

16731-04000-H17

$2.85

7

UNION BOLT

09360-06003

$3.44

8

GASKET

09168-06004

$1.43

9

SCREW This part replaces 02112-34123.

02112-3412B

$2.50

10

STOPPER

09135-06007

$2.72

11

GASKET

09164-06003

$2.25

12

CHECK VALVE

16710-04010

Unavailable

13

O RING

09280-03003

$1.73

14

SCREW This part replaces 02112-05083.

02112-0508A

$1.43

15

GASKET

09168-05001

$2.17

16

HOSE, OIL (L:512!97)

16810-07520

Unavailable

17

CLIP

09401-08401

$1.52

18

CLIP

09401-08401

$1.52

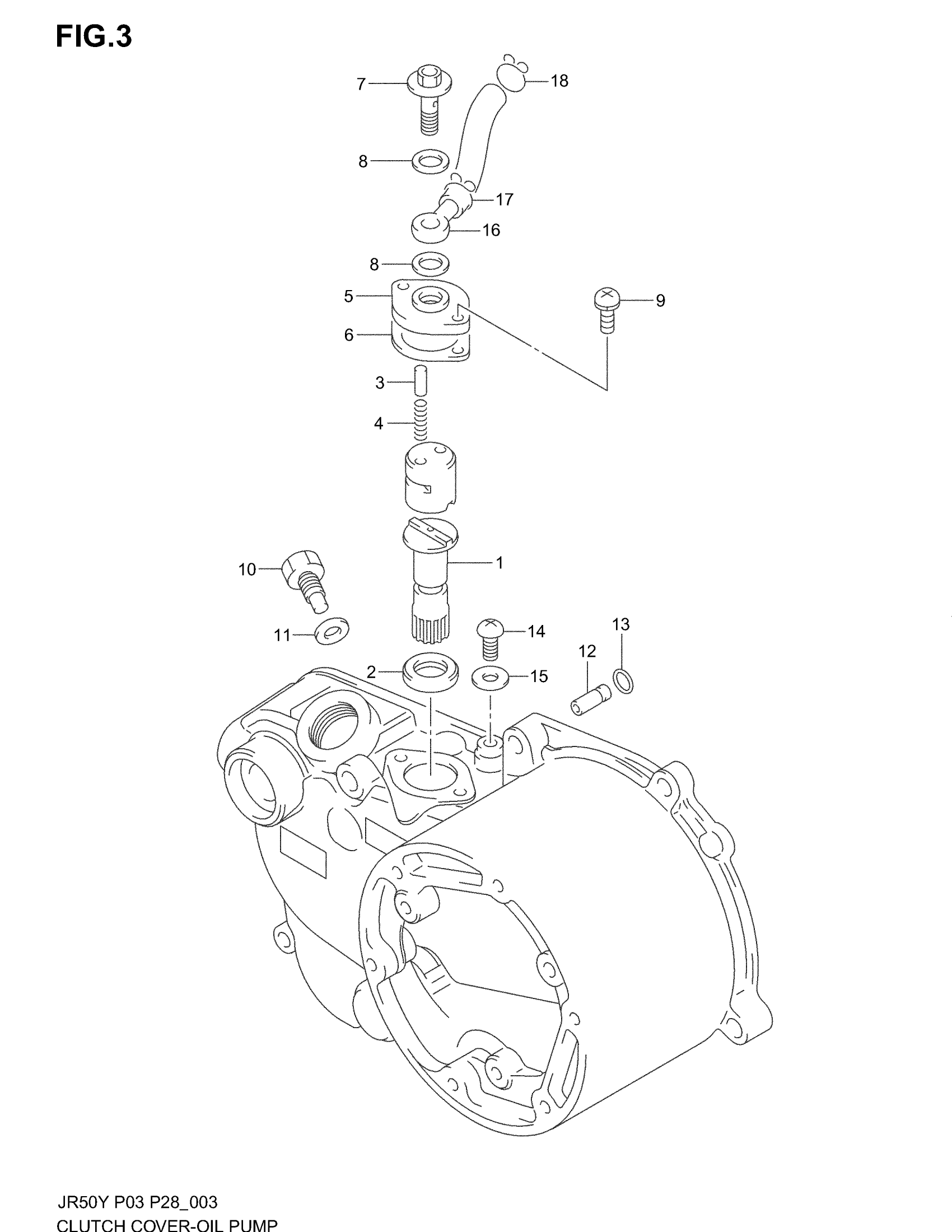

Suzuki JR50 (2004) CLUTCH COVER/OIL PUMP Diagram

NO DESCRIPTION AVAILABLE | INC. CLUTCH COVER; Includes Item(s) 1 - 17 This part replaces 11300-04853.

GEAR, OIL PUMP DRIVE | NT:23

OIL SEAL (12X18.5X3)

PLUNGER, SUB

SPRING

CAM, OIL PUMP

GASKET, OIL PUMP

UNION BOLT

GASKET

SCREW This part replaces 02112-34123.

STOPPER

GASKET

CHECK VALVE

O RING

SCREW This part replaces 02112-05083.

GASKET

HOSE, OIL (L:512!97)

CLIP

CLIP
