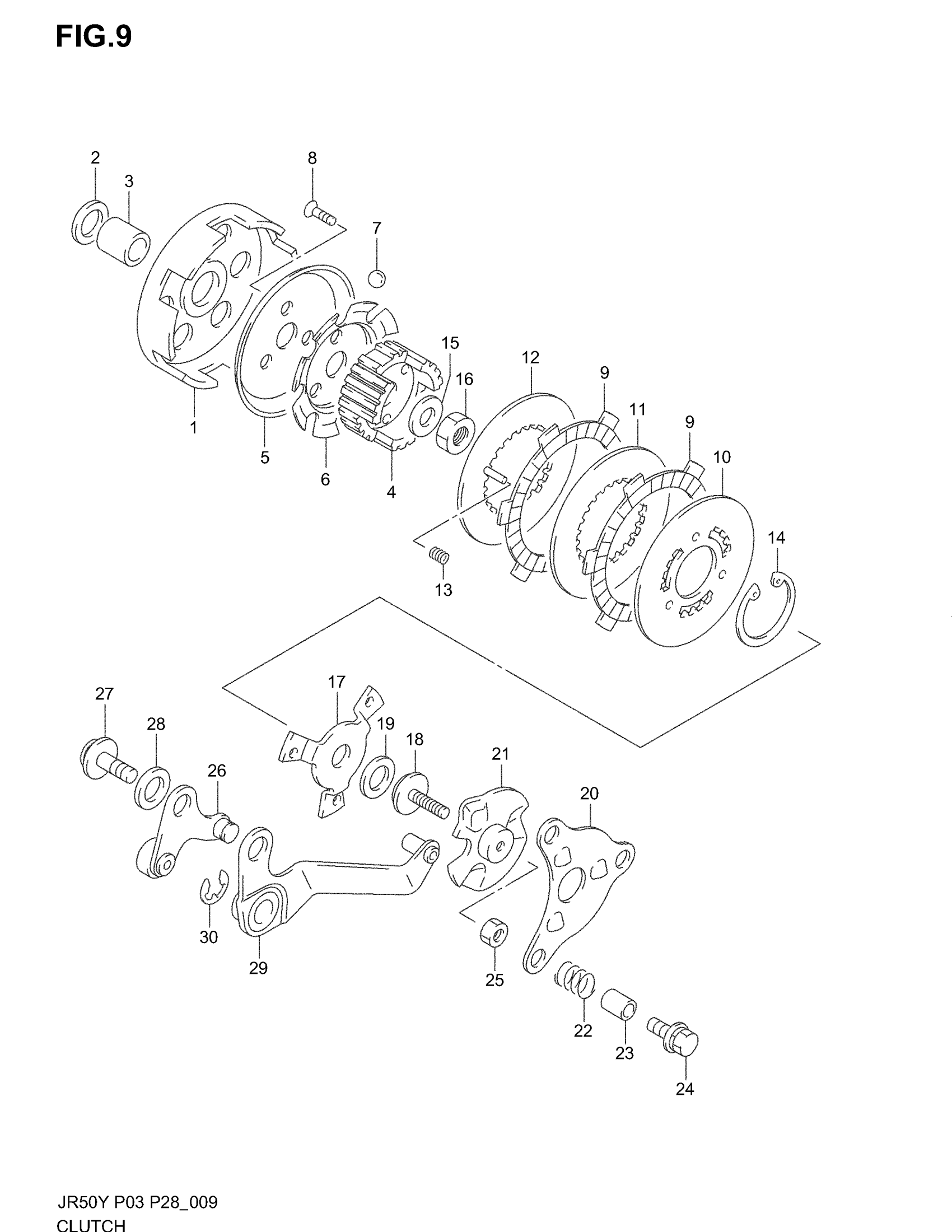

Suzuki JR50 (2004) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:20)

21110-04400

Unavailable

2

WASHER (14X24X3)

09160-14012

$4.68

3

SPACER (14X19X18)

09180-14003

$15.42

4

HUB, SLEEVE

21411-04400

Unavailable

5

PLATE, BALL

21431-04400

Unavailable

6

GUIDE, BALL

21631-04400

Unavailable

7

BALL

06111-12004

$1.93

8

SCREW This part replaces 02122-06163.

02122-0616A

$1.49

9

PLATE, DRIVE

21441-09D02

$18.39

10

PLATE, DRIVEN OUTER

21451-04400

$10.10

11

PLATE, DRIVEN

21452-04400

$5.00

12

PLATE, INNER

21454-04400

$13.85

13

SPRING | MODEL Y This part replaces 09440-06007.

09440-06007-XC0

Unavailable

13

SPRING | MODEL K1/K2/K3/K4

21413-04400

$4.02

14

CIRCLIP This part replaces 08331-41386.

08331-4138A

$2.80

15

WASHER (12.2X22X1.6)

09164-12020

$2.35

16

NUT

09140-12012

Unavailable

17

PLATE, PRESSURE

21461-04400

$12.52

18

PIECE, PUSH

23121-04400

$14.85

19

BEARING (10.1X22X2.8)

09263-10002

$10.19

20

PLATE, RELEASE

23241-04400

$9.17

21

PLATE, RELEASE INNER

23230-04400

Unavailable

22

SPRING

09440-12018

$2.30

23

SPACER (6X9X10.3)

09180-06065

Unavailable

24

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

25

NUT This part replaces 08310-00063.

08310-0006A

$1.84

26

LINK PLATE, RELEASE ARM

23210-04400

$37.75

27

BOLT (8X17)

09111-08032

Unavailable

28

WASHER (8X16X1.0)

09181-08167

$1.96

29

ARM, RELEASE PLATE

23220-04400

Unavailable

30

E-RING, BUSH This part replaces 08332-11093.

08332-1109A

$1.80
