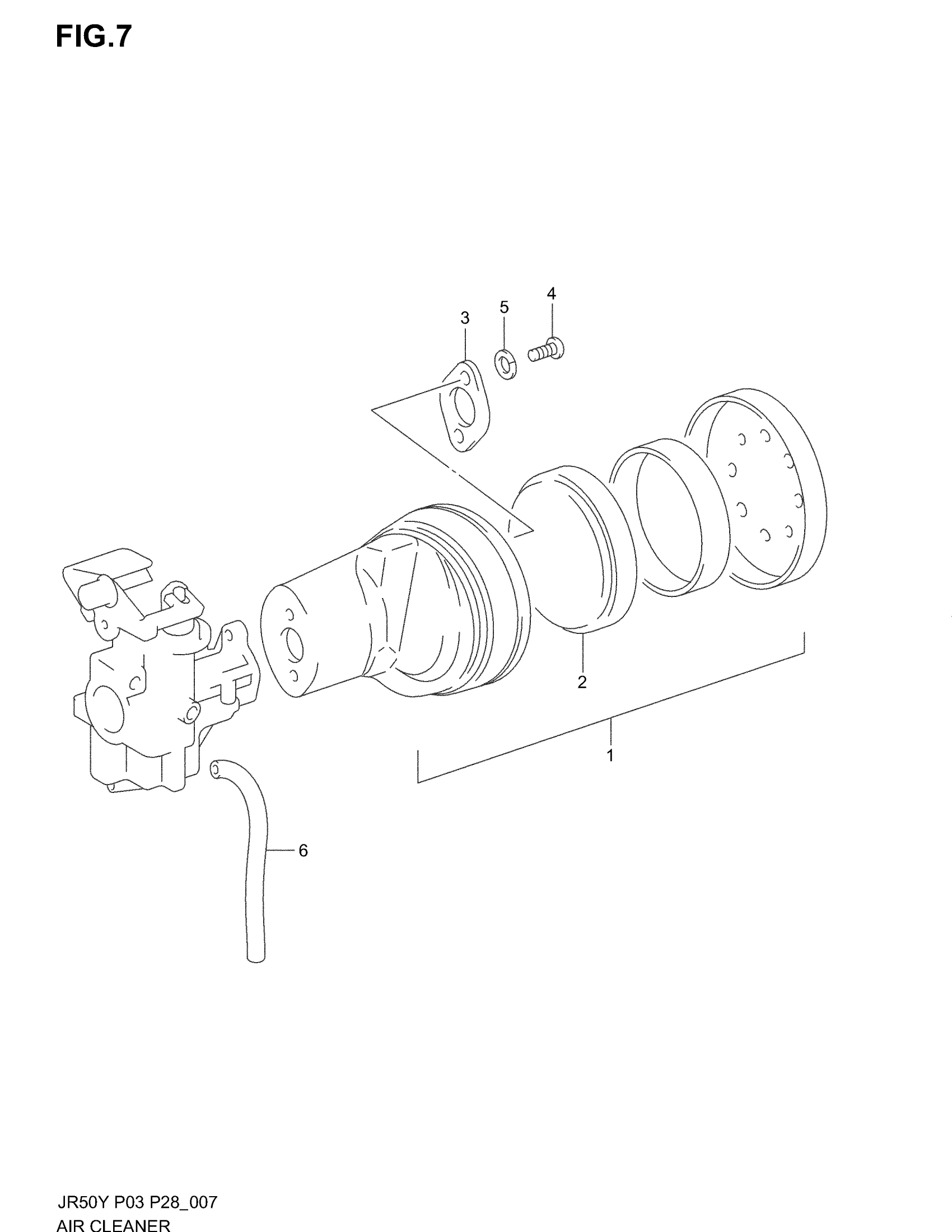

Suzuki JR50 (2004) AIR CLEANER Diagram

#

Description

Price

1

CLEANER ASSY, AIR | Includes Item(s) 2

13700-04410

$28.85

2

FILTER

13781-04400

$4.25

3

PLATE

13883-04400

$3.56

4

SCREW, THROTTLE | MODEL Y/K1/K2 This part replaces 02112-05103.

02112-0510A

$1.49

4

SCREW | MODEL K3/K4 This part replaces 02112-35103.

02112-3510B

$2.25

5

LOCK WASHER | MODEL Y/K1/K2 This part replaces 08321-01053.

08321-0105A

$1.84

6

.HOSE (3X5X600) | L:600!270 This part replaces 09352-30503-600.

09352-30504-600

$4.91
