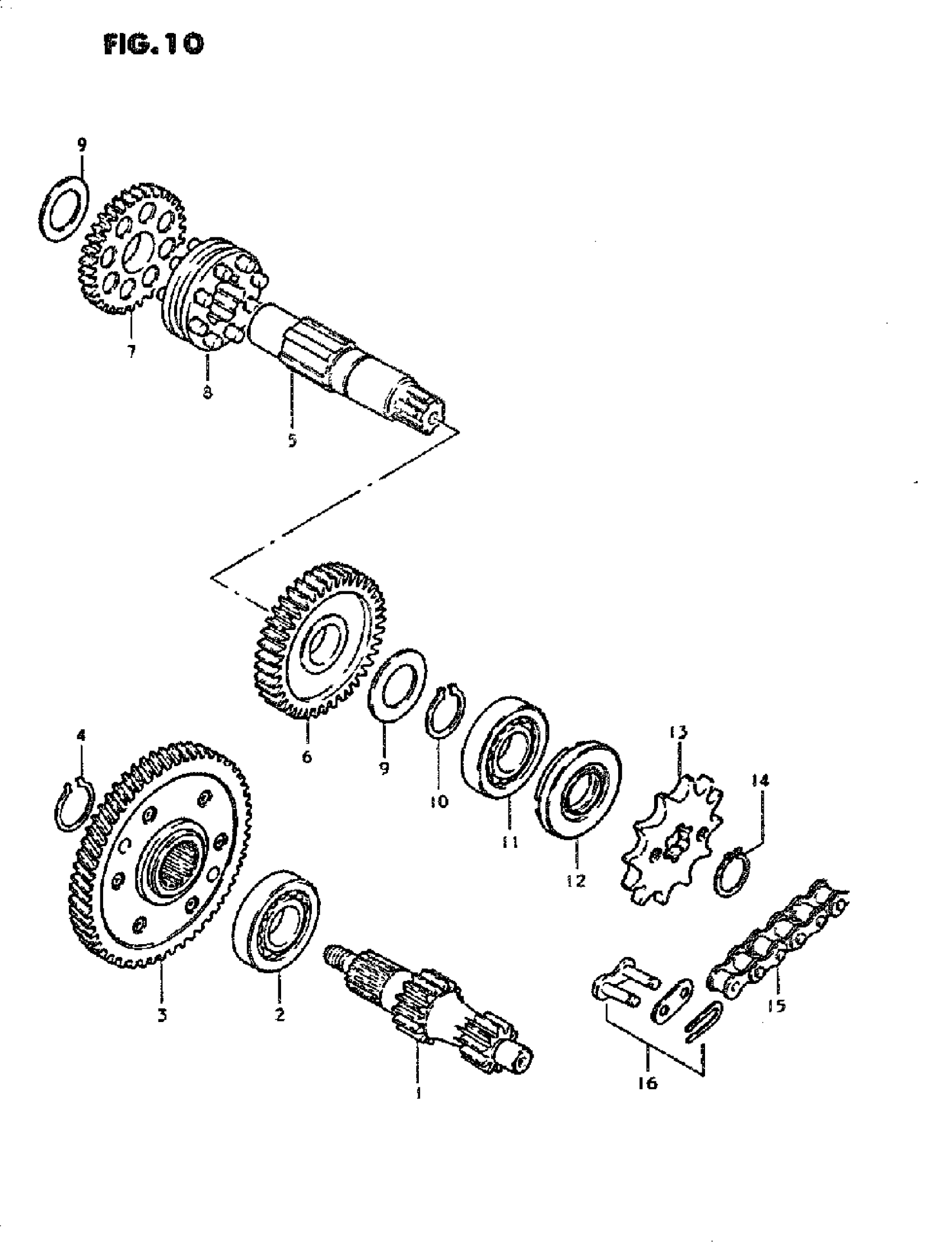

Suzuki JR50 (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:10/13) This part replaces 24121-04010.

24121-04011

Unavailable

2

BEARING (L7X4OX12)

09262-17023

$16.75

3

GEAR ASSY, PRIMARY DRIVEN | MODEL N/P This part replaces 21200-04500.

21200-04501

Unavailable

3

GEAR. PRIMARY DRIVEN (NT:53) | MODEL R/S

21200-04501

Unavailable

4

CIRCLIP

09380-17003

$2.45

5

DRIVESHAFT

24131-04001

Unavailable

6

GEAR, 1ST DRIVEN (NT:40) This part replaces 24311-04001.

24311-04002

$79.03

7

GEAR, 2ND DRIVEN (NT:29) This part replaces 24321-04010.

24321-04011

$80.52

8

WHEEL. SLIDING

24411-04003

Unavailable

9

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

10

CIRCLIP

09380-17003

$2.45

11

BEARING

09262-17023

$16.75

12

OIL SEAL (17X29X7) | MODEL N/P

09283-17001

$3.79

12

OIL SEAL CRANKS | MODEL R/S This part replaces 09283-17010.

09283-17012

$7.31

13

SPROCKET ENGINE (NT:13)

27511-19000

$14.98

14

CIRCLIP This part replaces 08331-31166.

08331-31169

$1.78

15

CHAIN ASSY,DRIV | MODEL N/P This part replaces 27600-46221.

27600-46211

Unavailable

15

CHAIN ASSY,DRIV | MODEL R This part replaces 27600-13670.

27600-01012-130

Unavailable

15

CHAIN ASSY,DRIV | MODEL S This part replaces 27600-01011-078.

27600-01012-078

$20.71

16

JOINT (RK) | MODEL N/P/R

27620-01023

Unavailable

16

J0INT (DID) MODEL S

27620-01012

$6.87

16

JOINT (DID)

27620-01012

$6.87
