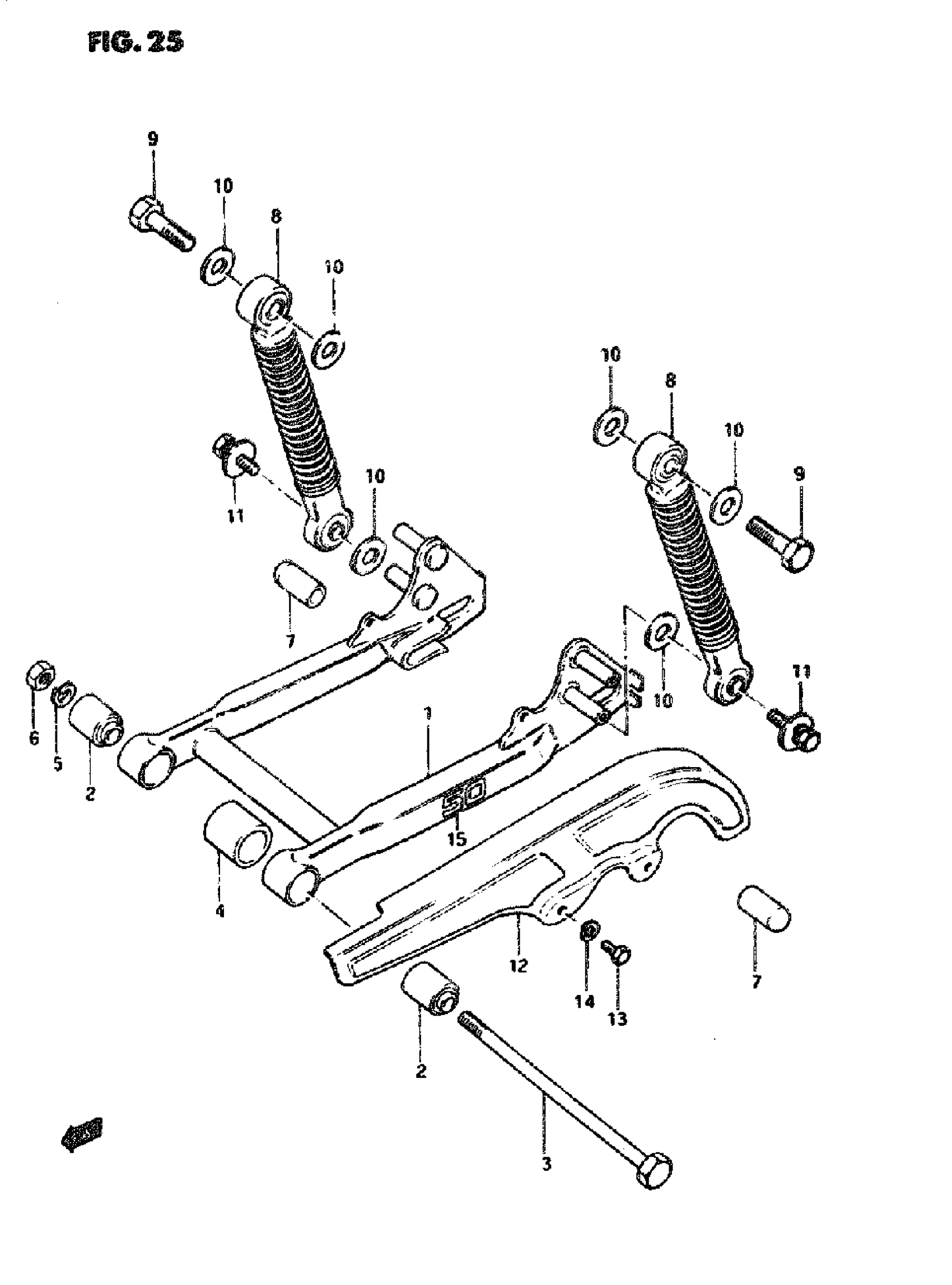

Suzuki JR50 (1995) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY. REAR (PEARL) | SWING MODEL NIP

61000-04420-126

Unavailable

1

SWINGING ARM ASSY REAR (SILVER) | SWING MODEL R/S

61000-04420-13L

Unavailable

2

BUSHING

09319-10041

$16.00

3

SHAFT, PIVOT

61211-04410

$14.17

4

CUSHION R SWING This part replaces 09320-20002.

09320-20012

$3.05

5

LOCK WASHER | MODEL N/P This part replaces 08321-21107.

08321-01107

$1.84

5

WASHER,10.5X22X | MODEL R/S This part replaces 09160-10051.

09160-10143

$2.34

6

NUT | MODEL NIP This part replaces 08310-12108.

08310-00107

$2.19

6

NUT | MODEL R/S This part replaces 08310-00103.

08310-0010A

$1.84

7

CAP. BOSS

61223-04420

$7.00

8

ABSORBER ASSY, REAR SHOCK

62100-04410

Unavailable

9

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

10

WASHER | MODEL N/P This part replaces 08322-21108.

08322-01107

$2.15

10

WASHER,10.5X22X | MODEL R This part replaces 09160-10051.

09160-10143

$2.34

10

WASHER,10.5X22X | MODEL S This part replaces 09160-10119.

09160-10143

$2.34

11

BOLT

09118-06055

$2.80

12

CASE CHAIN

61310-04410

$35.40

13

BOLT | MODEL N/P This part replaces 01107-06127.

01500-06127

$1.97

13

BOLT | MODEL R/S This part replaces 01500-06123.

01500-0612A

$1.78

14

LOCK WASHER | MODEL N/P This part replaces 08321-21067.

08321-01067

$2.13

14

LOCK WASHER | MODEL R/S This part replaces 08321-01063.

08321-0106A

$1.84

15

EMBLEM 50 | MODEL N

68381-04400-17U

Unavailable
