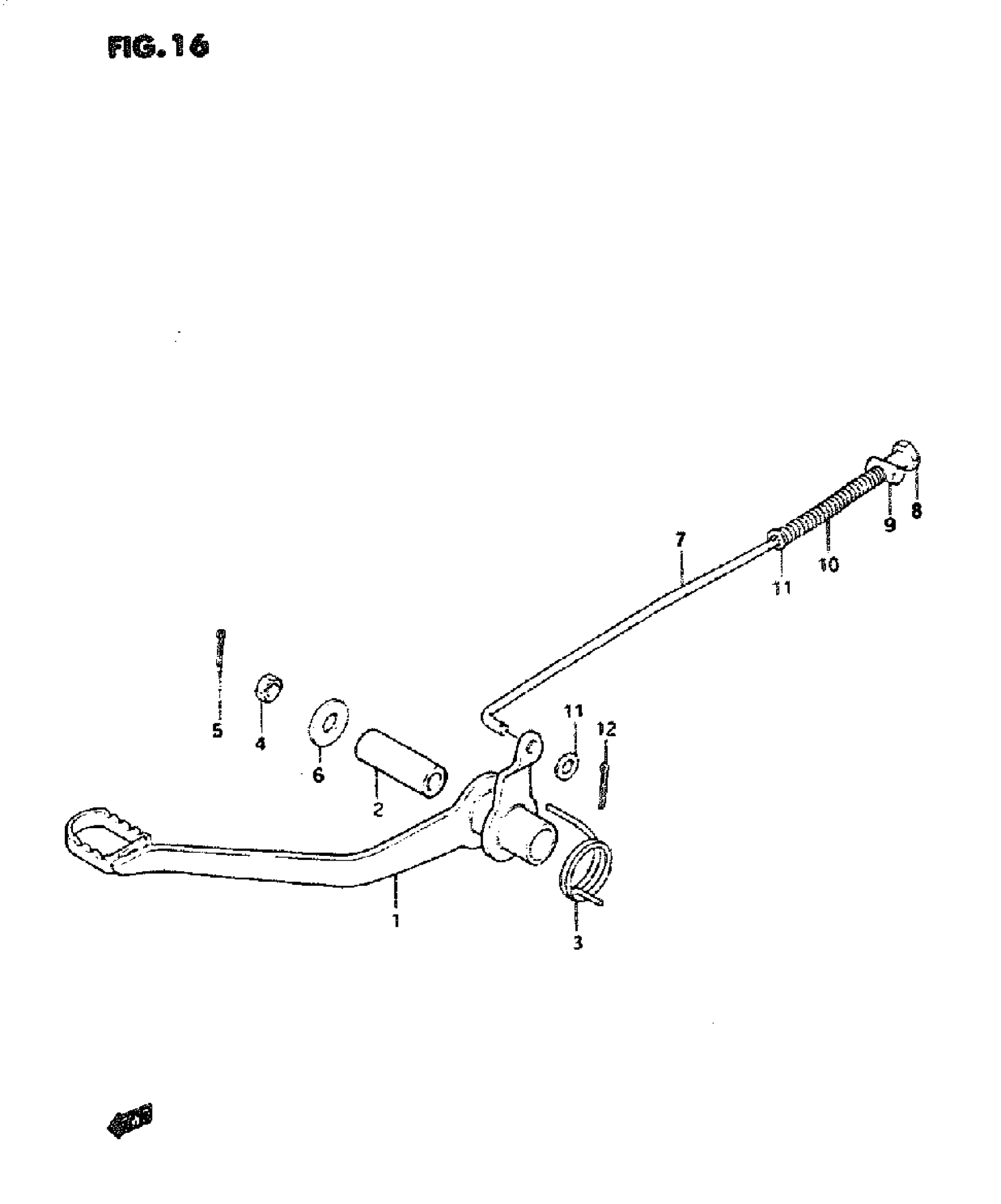

Suzuki JR50 (1995) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-04410

Unavailable

2

SPACER

43181-04411

$5.43

3

SPRING

43182-04410

Unavailable

4

NUT | model N/P This part replaces 08314-31108.

08314-3110A

$2.50

4

NUT | model R/S

09141-10006

$3.23

5

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.25

6

WASHER | MODEL N/P This part replaces 08322-21108.

08322-01107

$1.95

6

WASHER,10.5X22X | MODEL R/S This part replaces 09160-10119.

09160-10143

$2.44

7

ROD ASSY, BRAKE

43300-04410

$6.80

8

NUT

09150-05003

$3.96

9

PIN

09209-10001

$1.37

10

SPRING

09440-09004

$2.06

11

WASHER

08322-01057

$1.93

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25
