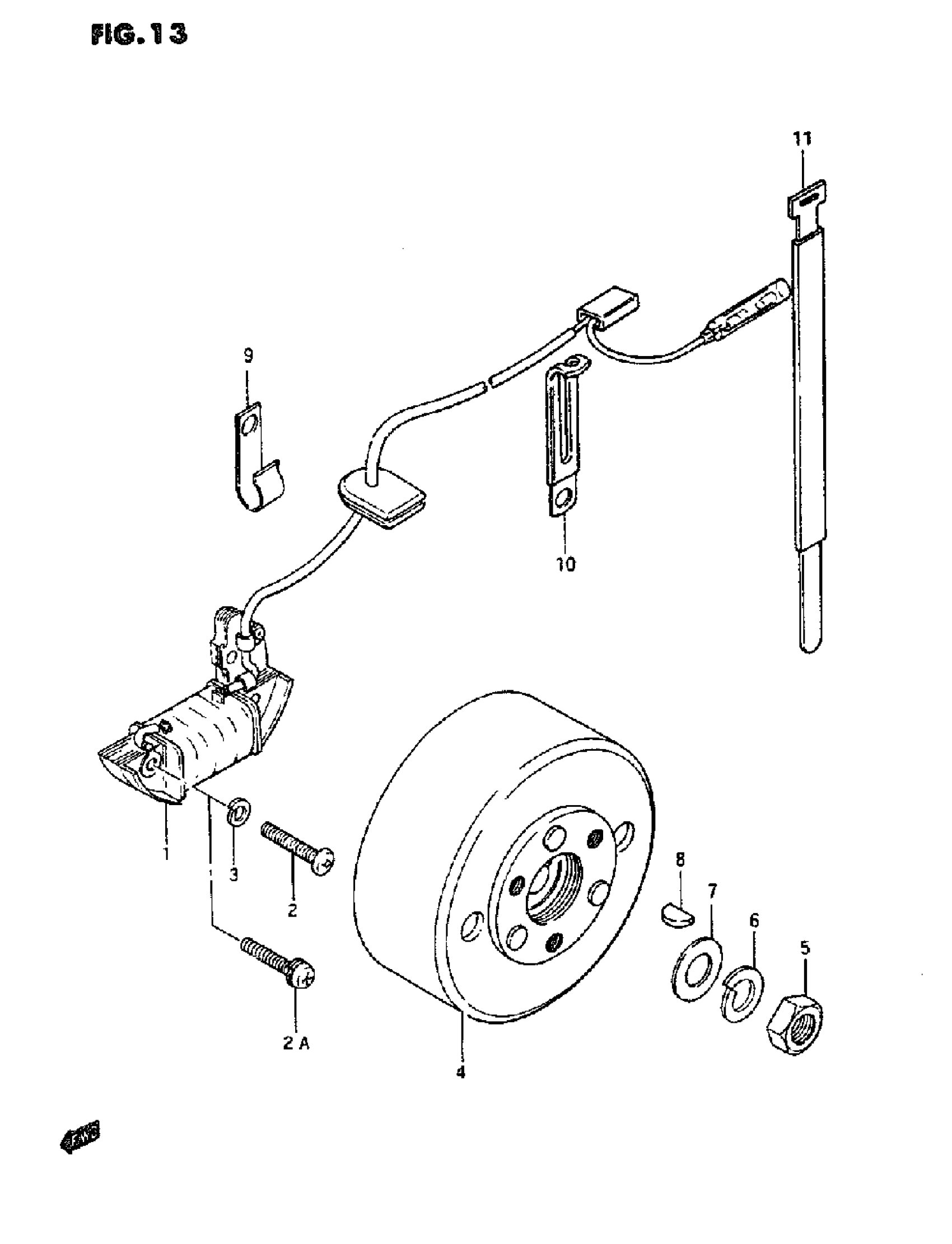

Suzuki JR50 (1995) MAGNETO Diagram

#

Description
Price

1

COIL ASSY, PRIMARY | model N/P/R This part replaces 32101-04431.

32101-04432

$81.20

1

C0IL ASSY, PRIMARY | model S

32101-04432

$81.20

2

SCREW | model N/P/R This part replaces 02112-04258.

02112-0425B

$2.34

2

SCREW | model S This part replaces 02112-34253.

02112-3425B

$3.08

3

LOCK WASHER | model N/P/R This part replaces 08321-21047.

08321-0104A

$1.84

4

R0T0R FLYWHEEL

32102-04430

$239.97

5

NUT | model N/P/R This part replaces 08310-12108.

08310-00107

$2.19

5

NUT | model S This part replaces 08310-00103.

08310-0010A

$1.84

6

LOCK WASHER | model N/P/R This part replaces 08321-21107.

08321-01107

$1.84

6

LOCK WASHER | model S This part replaces 08321-01103.

08321-0110A

$1.84

7

WASHER | model N/P/R This part replaces 08322-21108.

08322-01107

$2.15

7

WASHER, KNUCKLE END | model S This part replaces 08322-01103.

08322-0110A

$1.84

8

KEY

08341-31039

$1.89

9

CLAMP

09403-05303

Unavailable

10

CLAMP | model N/P/R This part replaces 09404-06402.

09404-06039

$1.74

10

CLAMP (L:54) | model S

09404-06429

$1.83

11

CLAMP This part replaces 09407-14301.

09407-18302

$2.28
