Description

Price

1

HANDLEBAR (BLACK)

56110-04411-291

Unavailable

2

PLUG, DRAIN | MODEL N/P This part replaces 01107-08167.

01500-0816B

$2.50

2

BOLT | MODEL R/S

O1500-08163

Unavailable

3

.LOCK WASHER | MODEL N/P This part replaces 08321-21088.

08321-01087

$2.13

3

LOCK WASHER | MODEL R/S This part replaces 08321-01083.

08321-0108A

$1.84

4

CABLE ASSY, BRAKE This part replaces 58100-04420.

58110-04430

$26.53

5

NUT

09150-05101

$3.04

6

PIN

09209-10001

$1.49

7

BOLT

09287-07001

$2.00

8

SPRING

09440-06003

$2.44

9

CABLE ASSY, THROTTLE This part replaces 58300-04420.

58300-04432

$22.44

10

CLAMP | MODEL N/P/R This part replaces 09407-18301.

09407-18302

$2.28

10

CLAMP (L:235) | MODEL S

09407-25401

$4.66

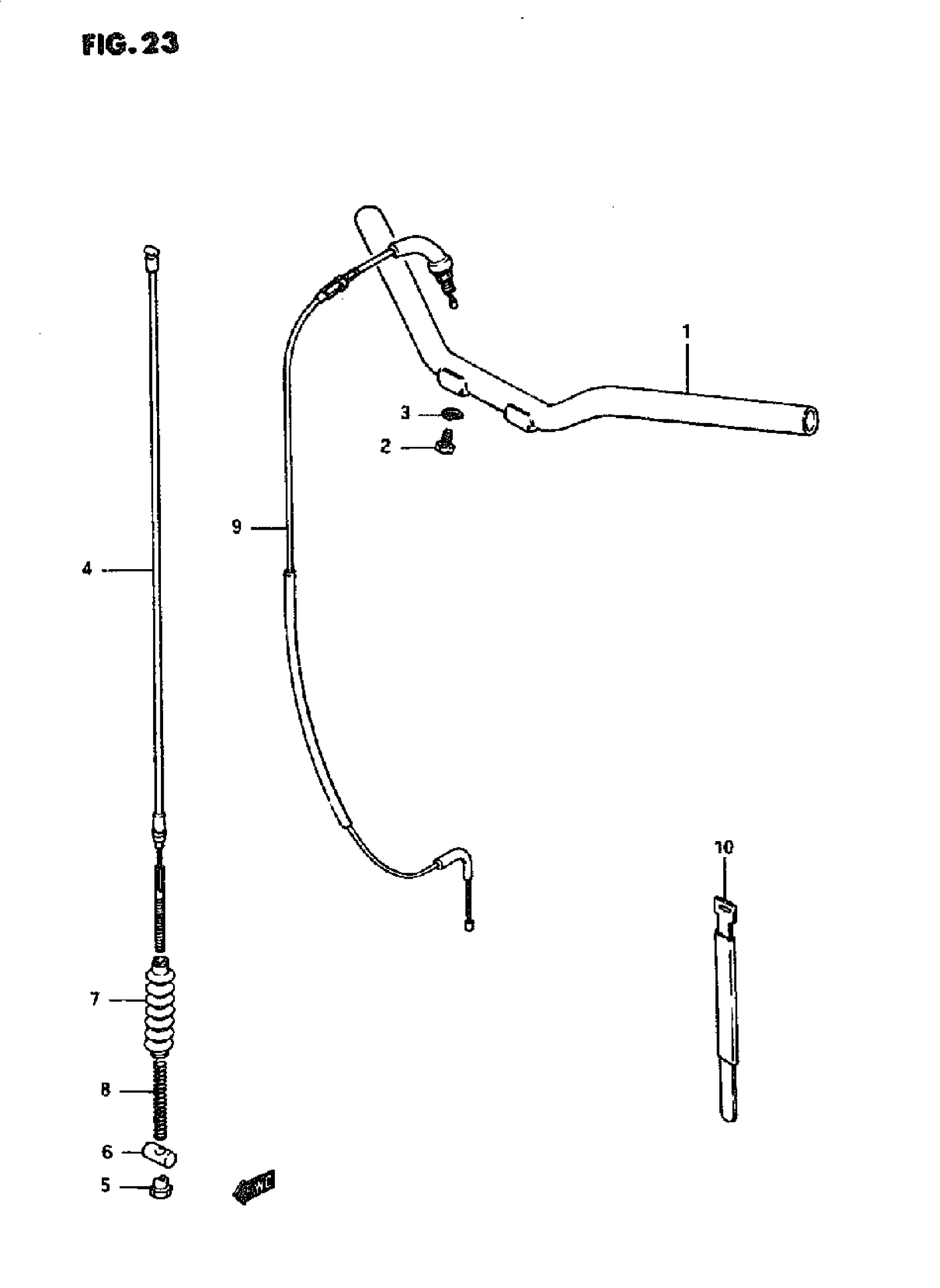

Suzuki JR50 (1995) HANDLEBAR-CABLE Diagram
