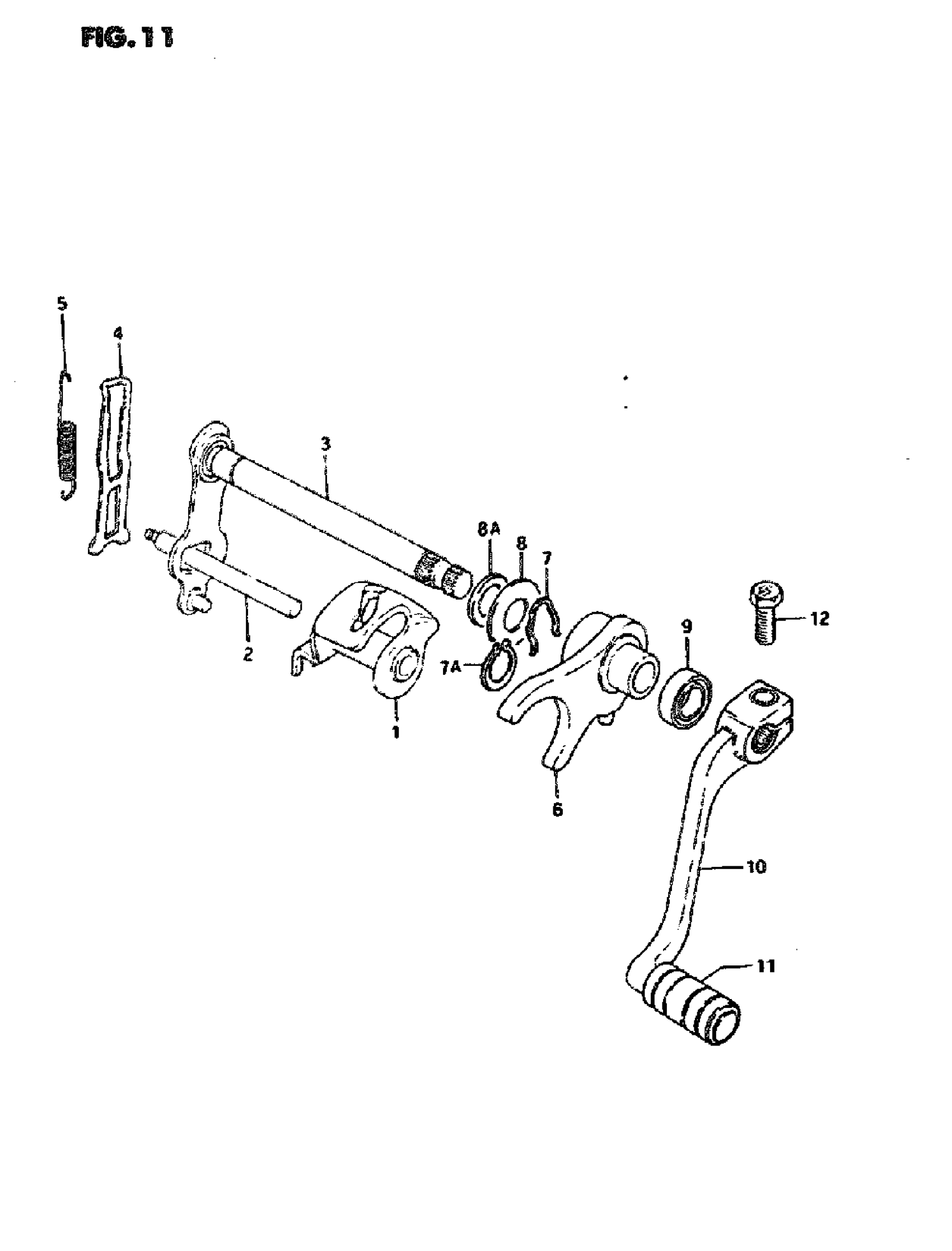

Suzuki JR50 (1995) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING This part replaces 25310-04000.

25310-04001

$63.30

2

SHAFT, CAM

25411-04000

Unavailable

3

SHAFT, GEAR SHIFTING | E.N O.121019 This part replaces 25510-04400.

25510-04401

$176.35

3

SHAFT. GEAR SHIFTING | E.No .121020-

25510-04401

$176.35

4

ARM, CAM STOPPER

25352-04000

Unavailable

5

SPRING

09443-08008

$2.50

6

FORK, GEAR SHIFTING This part replaces 25210-04001.

25211-04010

$64.30

7

CIRCLIP | model N This part replaces 09384-12001.

08331-3112A

$1.78

7

CIRCLIP | model P/R/S This part replaces 08331-31126.

08331-3112A

$1.78

8

WASHER

08211-12261

$2.50

8

WASHER | E.No .121020-

08211-12205

Unavailable

9

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

10

LEVER ASSY. GEAR SHIFTING | model N/P This part replaces 25600-29300.

25600-29310

$42.95

10

LEVER ASSY. GEAR SHIFTING | model R/S

25600-29310

$42.95

11

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

12

BOLT | MODEL N/P This part replaces 01107-06207.

01500-06207

$2.28

12

BOLT, GEAR SHIFT LINK | MODEL R/S This part replaces 01500-06203.

01500-0620A

$1.78
