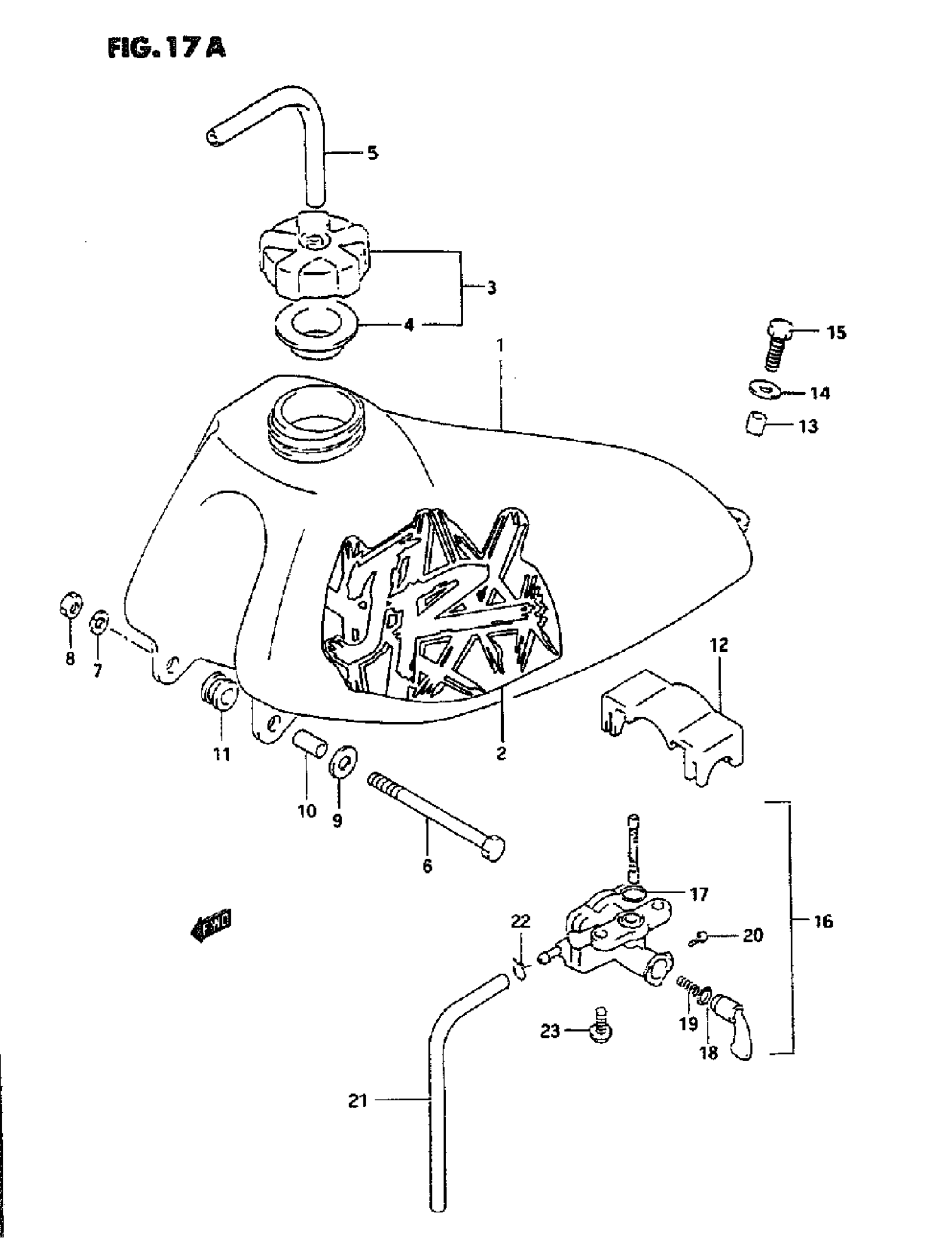

Suzuki JR50 (1995) FUEL TANK (MODEL R/S) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW)

44110-04420-25Y

Unavailable

2

EMBLEM RH | MODE R

68121-04430-C2M

Unavailable

2

EMBLEM RH | MODEL S

68121-04430-D0J

Unavailable

2

EMBLEM LH | MODEL R

68122-04430-C2M

Unavailable

2

EMBLEM LH | MODEL S

68122-04430-D0J

Unavailable

3

CAP SET,FUEL TA | MODEL R This part replaces 44200-40810.

44200-40822

$14.76

3

CAP SET,FUEL TA | MODEL S This part replaces 44200-40811.

44200-40822

$14.76

4

GASKET | MODEL R This part replaces 44248-40400.

44248-05211

$3.76

4

GASKET | MODEL S This part replaces 44248-05210.

44248-05211

$3.76

5

HOSE,5X10X600 | MODEL R This part replaces 09352-50823-300.

44421-13ER0

$10.06

5

HOSE,5X10X600 | MODEL S This part replaces 09352-50823-600.

44421-13ER0

$10.06

6

BOLT This part replaces 01500-06903.

01500-0690B

$3.55

7

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

8

NUT This part replaces 08310-00063.

08310-0006A

$1.84

9

WASHER (6.5X18X1.0)

09160-06028

$1.49

10

SPACER,7.2X10X1 | MODEL.R This part replaces 09180-06006.

09180-07019

$2.63

10

SPACER | MODEL S This part replaces 09180-06112.

09180-06289

$2.56

11

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

12

CUSHION, UPPER

44542-04420

$9.00

13

SPACER This part replaces 09180-06111.

09180-06260

$3.37

14

WASHER (6.5X18X1.0)

09160-06028

$1.49

15

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

16

COCK ASSY, FUEL

44300-04420

$56.98

17

0 RING. JOINT

44348-41370

$1.91

18

0 RING, LEVER

44353-41370

$4.37

19

SPRING This part replaces 44357-41370.

44357-32470

$2.21

20

SCREW

44343-41370

$2.22

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

22

CLIP

09401-08401

$1.54

23

SCREW This part replaces 02112-36163.

02112-3616A

$1.97
