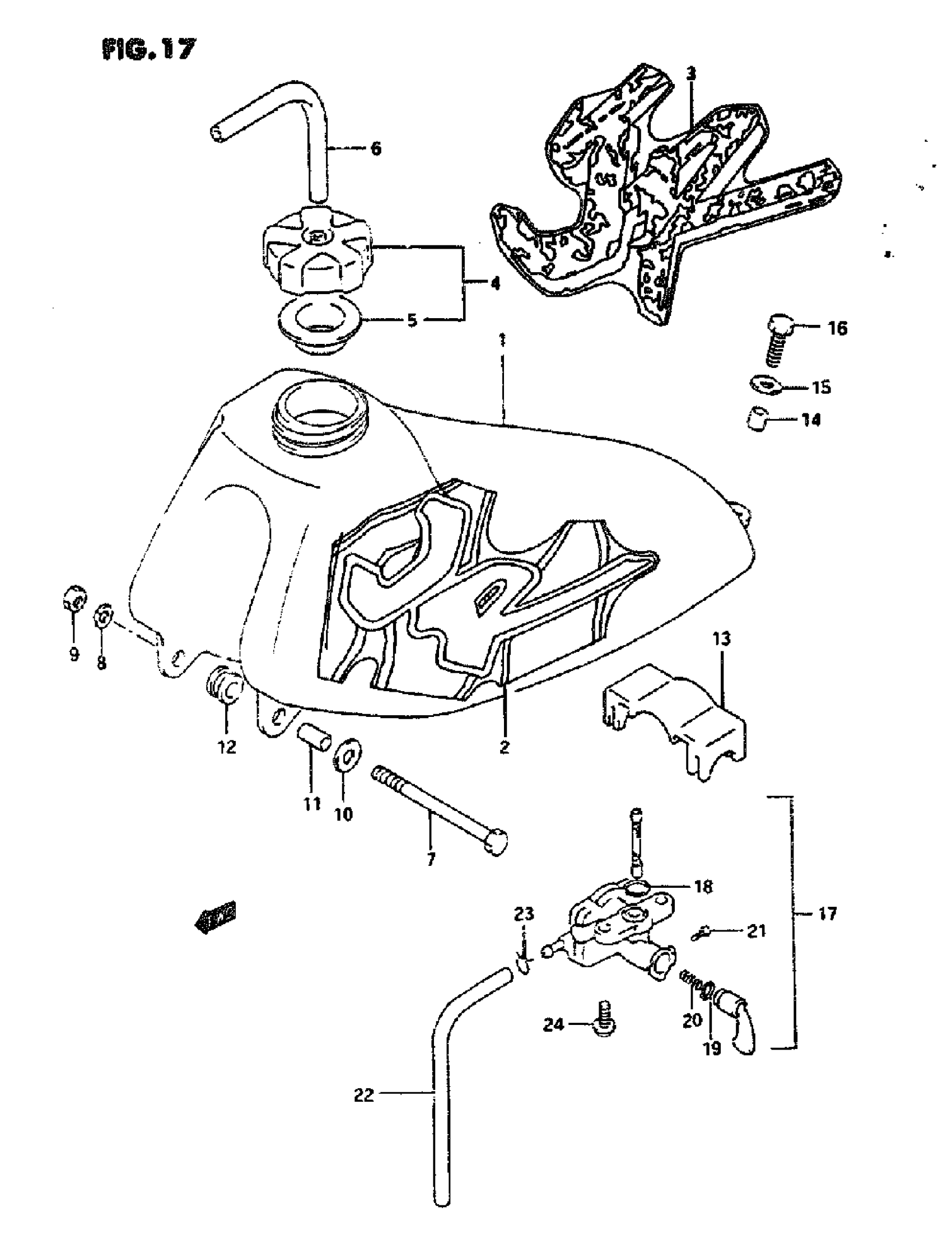

Suzuki JR50 (1995) FUEL TANK (MODEL N/P) Diagram

#

Description
Price

1

TANK. FUEL (YELLOW)

44110-04420-25Y

Unavailable

2

EMBLEM RH | N

68121-04410-L58

Unavailable

2

EMBLEM LH | MODEL N

68122-04410-L58

Unavailable

3

EMBLEM RH | MODEL P

68121-04420-A4H

Unavailable

3

EMBLEM LH | MODEL P

68122-04420-A4H

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-40810.

44200-40822

$14.76

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$10.06

7

BOLT This part replaces 01107-06908.

01500-06907

$4.17

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

9

.NUT This part replaces 08310-11067.

08310-00067

$2.13

10

WASHER (6.5X18X1.0)

09160-06028

$1.49

11

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

12

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

13

CUSHION, UPPER

44542-04420

$9.00

14

SPACER This part replaces 09180-06111.

09180-06260

$3.37

15

WASHER (6.5X18X1.0)

09160-06028

$1.49

16

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

17

COCK ASSY, FUEL

44300-04420

$56.98

18

0 RING, JOINT

44348-41370

$1.91

19

0 RING. LEVER

44353-41370

$4.37

20

SPRING This part replaces 44357-41370.

44357-32470

$2.21

21

SCREW

44343-41370

$2.22

22

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$10.06

23

CLIP

09401-08401

$1.54

24

SCREW This part replaces 02112-36168.

02112-36167

$2.34
