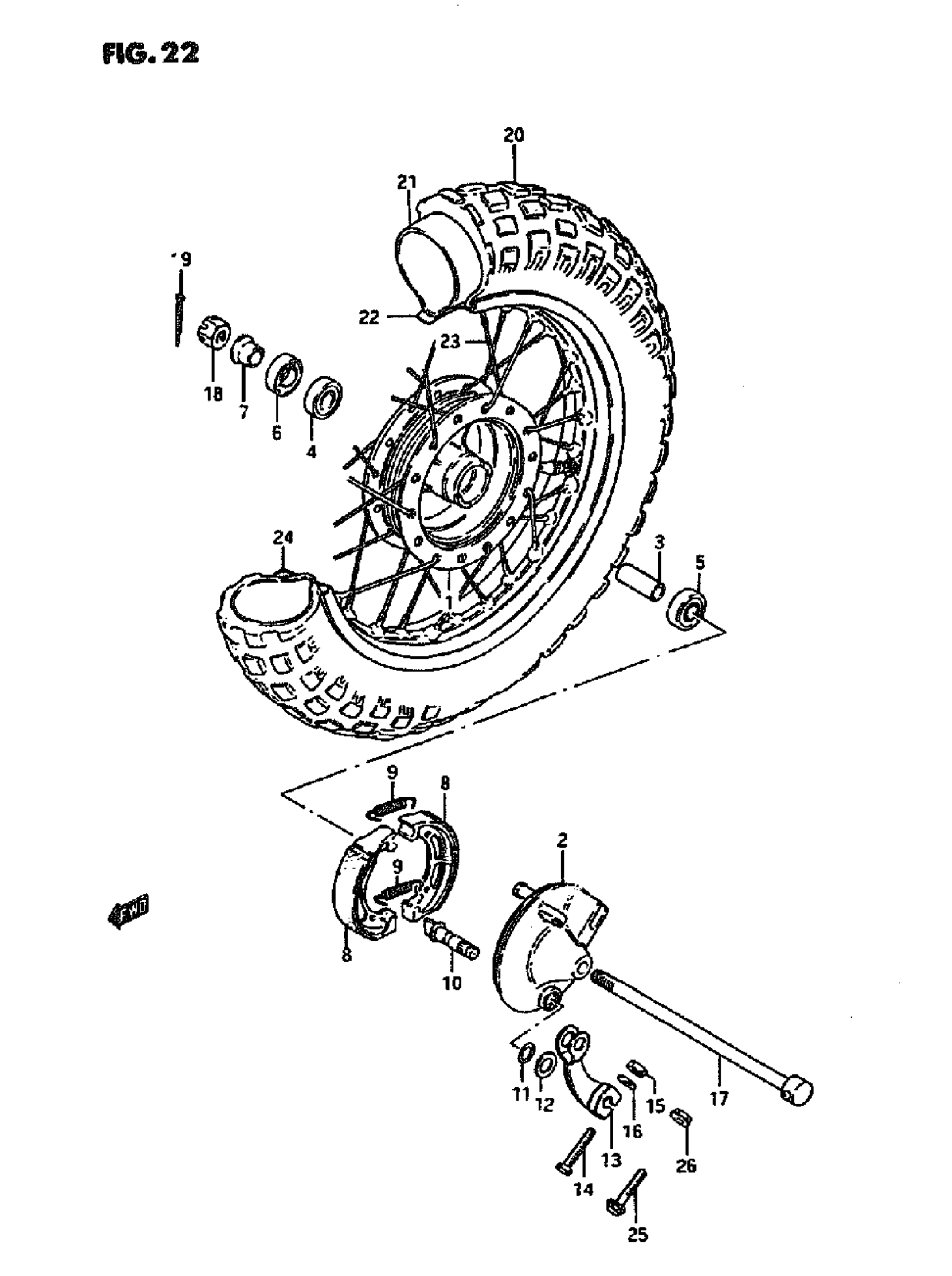

Description

Price

1

HUB, FRONT WHEEL

54110-04400

Unavailable

2

PANEL, BRAKE ANCHOR

54210-04410

$43.68

3

SPACER

09180-10012

$6.50

4

BEARING (10X26X8) This part replaces 08113-60000.

09262-10015

$14.48

5

BEARING, LH

08143-60007

$16.83

6

0IL SEAL (15X27X6)

09284-15004

$3.43

7

SPACER, AXLE

54741-04000

$5.32

8

SHOE SET, BRAKE | model N This part replaces 54410-04002.

64400-04811

$26.45

8

SHOE SET, BRAKE | model P/R/S This part replaces 64410-04201.

64400-04811

$26.45

9

SPRING

09443-07025

$2.08

10

CAM, BRAKE | model N/P This part replaces 54441-04000.

54441-04001

$15.23

10

CAM BRAKE | model R/S

54441-04001

$15.23

11

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.70

12

WASHER This part replaces 09160-10026.

09160-10121

$2.03

13

LEVER, BRAKE CAM

54451-04000

$16.25

14

BOLT | model N This part replaces 01107-05258.

01500-0525A

$1.77

15

NUT | model N This part replaces 08310-11057.

08310-00057

$1.84

16

WASHER | model N This part replaces 08322-21057.

08322-01057

$2.13

17

AXLE, FRONT

54711-04410

$21.02

18

NUT | model N/P This part replaces 08314-31108.

08314-3110A

$1.99

18

NUT | model R/S

09141-10006

$2.98

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

20

TIRE, FRONT (2.50-10)

55100-04410

Unavailable

21

TUBE, INNER

55200-04410

$27.12

22

PR0TECTOR. TUBE

55261-04410

$5.04

23

SP0KE SET

55300-04820

$44.27

24

RIM WHEEL (1.40X10)

55311-04410

$183.86

25

BOLT, BRAKE CAM LEVER | model P This part replaces 01517-05258.

01550-0525A

$2.06

25

BOLT, BRAKE CAM LEVER | model R/S This part replaces 01550-05253.
