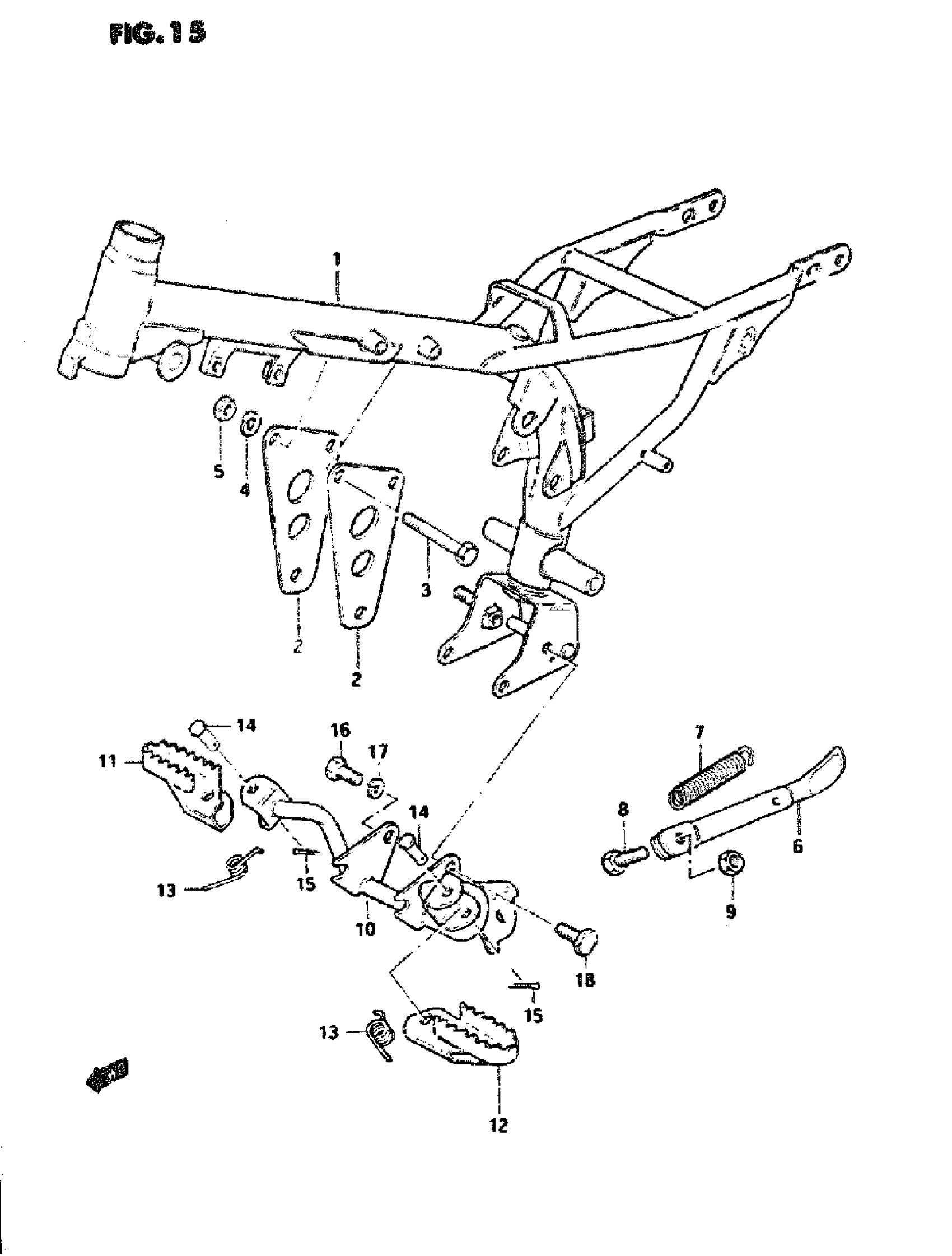

Suzuki JR50 (1995) FRAME - FOOTREST Diagram

#

Description
Price

1

FRAME (BLUE) | MODEL N

41100-04431-19F

Unavailable

1

FRAME (BLACK) | MODEL P/R/S

41100-04431-019

Unavailable

2

PLATE, MOUNTING

41991-04410

Unavailable

3

BOLT | MODEL N/P/R This part replaces 01107-08708.

01500-0870B

$3.49

3

BOLT | MODEL S This part replaces 01500-08703.

01500-0870B

$3.49

4

.LOCK WASHER | MODEL N/P/R This part replaces 08321-21088.

08321-01087

$2.13

4

LOCK WASHER | MODEL S This part replaces 08321-01083.

08321-0108A

$1.84

5

NUT | MODEL WP/R This part replaces 08310-12088.

08310-00087

$2.13

5

NUT | MODEL S This part replaces 08310-00083.

08310-0008A

$1.84

6

STAND PROP(BLUE) | MODEL N

42300-04420-19F

Unavailable

6

STAND. PROP (BLACK) | MODEL P/R/S

42300-04420-19F

Unavailable

7

SPRING

09443-14017

$3.04

8

BOLT (8X22) This part replaces 09100-08145.

09100-08274

$3.78

9

NUT | MODEL N/P/R This part replaces 08310-12088.

08310-00087

$2.13

9

NUT | MODEL S This part replaces 08310-00083.

08310-0008A

$1.84

10

BAR FRONT FOOTREST

43510-04411

Unavailable

11

FOOTREST, RH (BLACK) | MODEL N This part replaces 43550-46000-19F.

43550-46000-019

$20.27

11

FOOTREST RH (BLACK) | MODEL P/R/S

43550-46000-019

$20.27

12

FOOTREST, LH (BLACK) | MODEL N This part replaces 43560-46000-19F.

43560-46000-019

$20.97

12

FOOTREST. LH (BLACK) | MODEL P/R/S

43560-46000-019

$20.97

13

SPRING

09448-14012

$3.04

14

PIN

09200-08002

$2.05

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

PLUG, DRAIN | MODEL N/P/R This part replaces 01107-08167.

01500-0816B

$2.50

16

PLUG, DRAIN | MODEL S This part replaces 01500-08163.

01500-0816B

$2.50

17

.LOCK WASHER | MODEL N/P/R This part replaces 08321-21088.

08321-01087

$2.13

17

LOCK WASHER | MODEL S This part replaces 08321-01083.

08321-0108A

$1.84

18

BOLT, LH

09100-08143

$2.29
