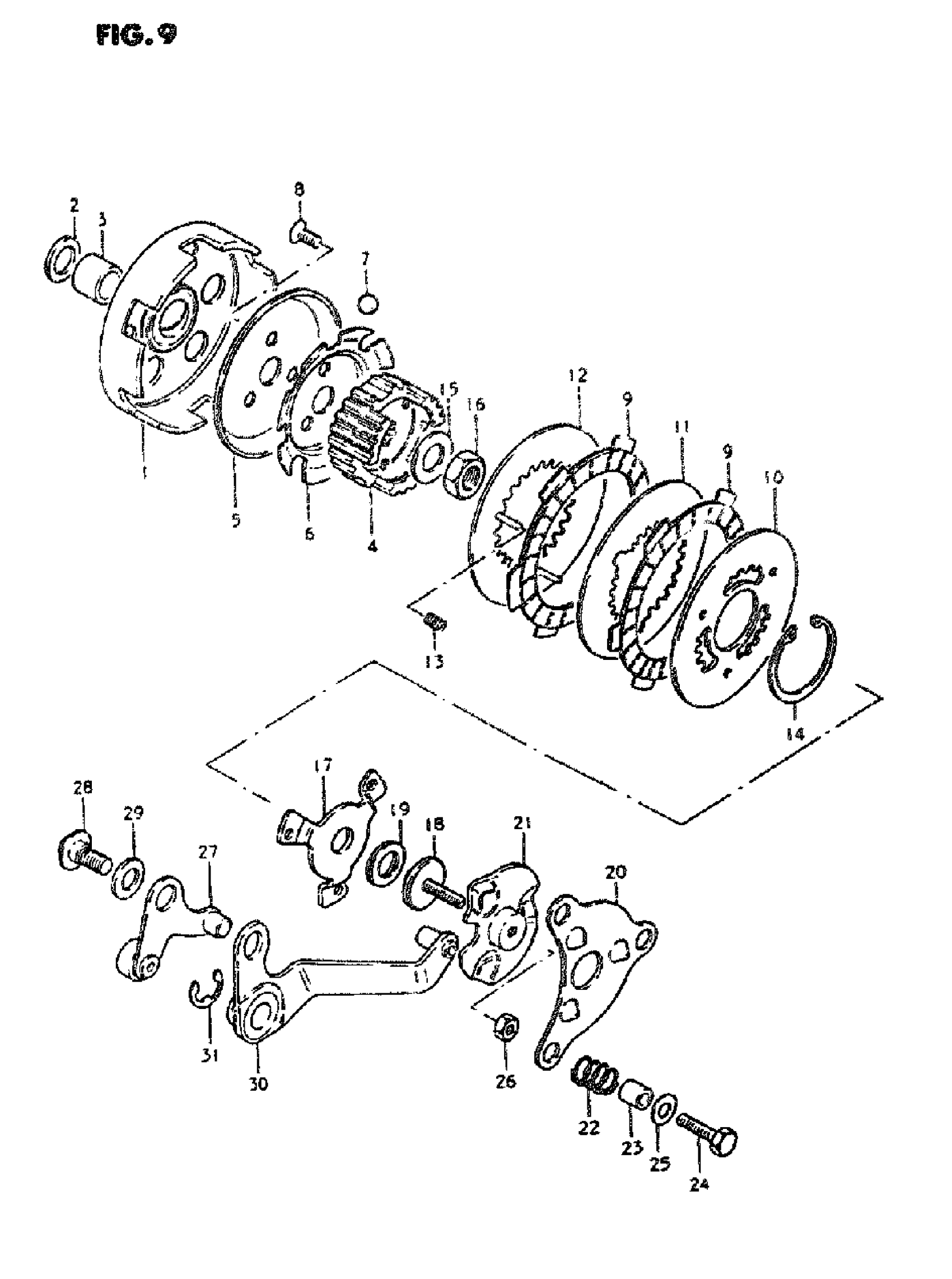

Suzuki JR50 (1995) CLUTCH Diagram

#

Description
Price

1

GEAR. PRIMARY DRIVE (NT:20)

21110-04400

Unavailable

2

WASHER, (14X24X3)

09160-14012

$4.68

3

SPACER (14XL9XL8)

09180-14003

$15.42

4

HUB. SLEEVE

21411-04400

Unavailable

5

PLATE. BALL

21431-04400

Unavailable

6

GUIDE, BALL

21631-04400

Unavailable

7

BALL

06111-12004

$1.93

8

SCREW | MODEL N/P

02122-06167

$1.49

8

SCREW | MODEL R/S This part replaces 02122-06163.

02122-0616A

$1.49

9

PLATE, CLUTCH DRIVE (T:2.6) | model N/P This part replaces 21441-04400.

21441-09D02

$18.39

9

PLATE. DRIVE | model R/S

21441-09D02

$18.39

10

PLATE, DRIVEN OUTER

21451-04400

$10.10

11

PLATE, DRIVEN

21452-04400

$5.00

12

PLATE, INNER

21454-04400

$13.85

13

SPRING This part replaces 09440-06007.

09440-06007-XC0

Unavailable

14

CIRCLIP This part replaces 08331-41386.

08331-4138A

$2.80

15

WASHER

09164-12016

Unavailable

16

NUT

09140-12012

Unavailable

17

PLATE, PRESSURE

21461-04400

$12.52

18

PIECE, PUSH

23121-04400

$14.85

19

BEARING

09263-10002

$10.19

20

PLATE, RELEASE

23241-04400

$9.17

21

PLATE, RELEASE INNER

23230-04400

Unavailable

22

SPRING

09440-12018

$2.30

23

SPACER (6X9X10.3)

09180-06065

Unavailable

24

BOLT | MODEL N/P This part replaces 01107-06207.

01500-06207

$2.28

24

BOLT | MODEL R/S This part replaces 01550-06203.

01550-0620A

$1.97

25

WASHER | MODEL N/P This part replaces 08322-21067.

08322-01067

$2.13

26

.NUT | model N/P This part replaces 08310-11067.

08310-00067

$2.13

26

NUT | MODEL R/S This part replaces 08310-00063.

08310-0006A

$1.84

27

LINK PLATE. RELEASE ARM

23210-04400

$37.75

28

NUT

09111-08032

Unavailable

29

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

30

ARM RELEASE PLATE

23220-04400

Unavailable

31

E-RING, BUSH This part replaces 08332-11093.

08332-1109A

$1.80
